MXAA54L-GNXABC (2020)

Toyota Wildlander

Production Apr 2020 - Sep 9999
Engine M20CFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )M20CFKS

Click highlighted areas on diagram

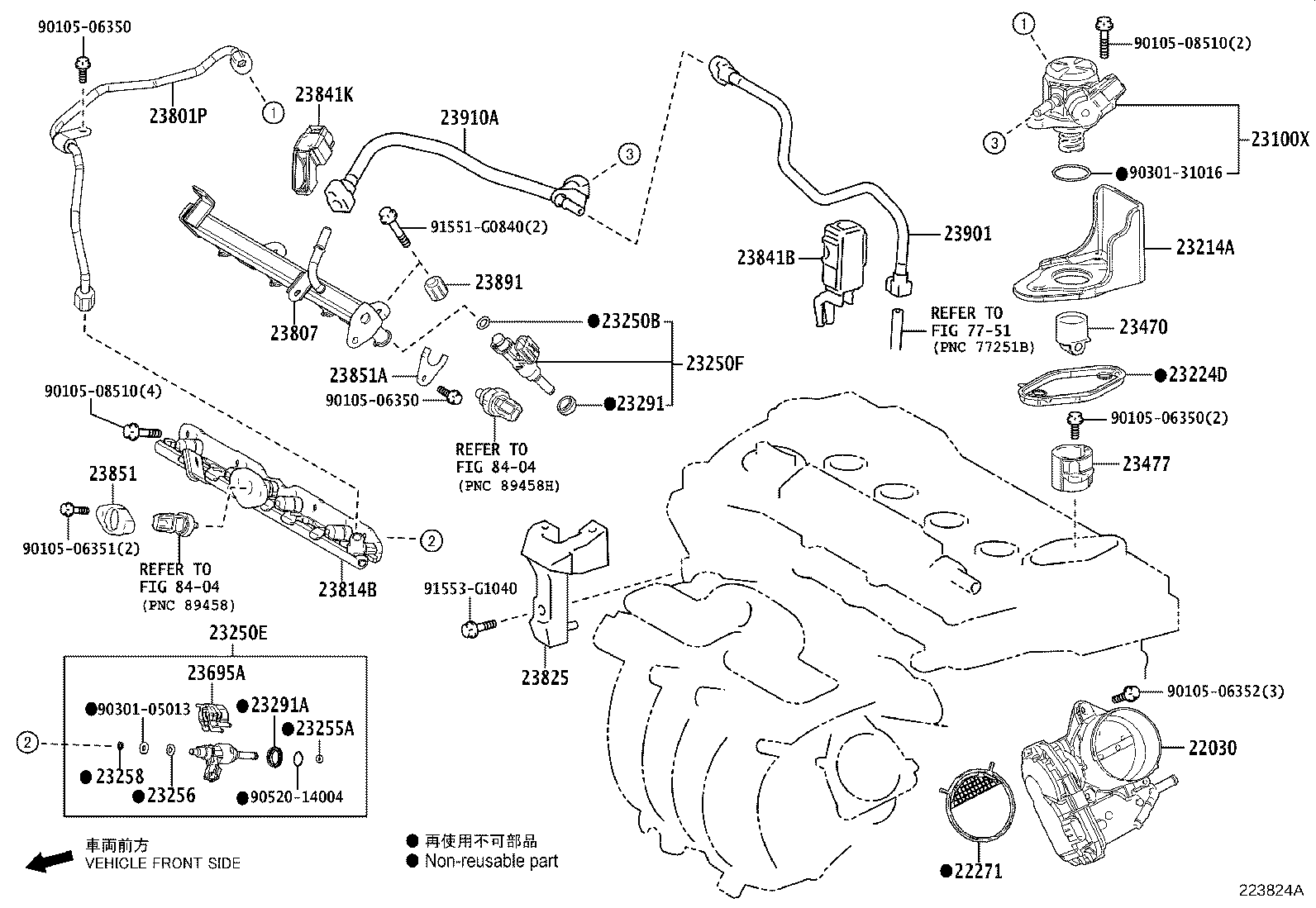

diagram 22030 22271 23100X 23214A 23224D 23250B 23250E 23250F 23255A 23256 23258 23291 23291A 23470 23477 23695A 23801P 23807 23814B 23825 23841B 23841K 23851 23851A 23891 23901 23910A 7751 8404 8404 9010506350 9010506350 9010506350 9010506351 9010506352 9010508510 9010508510 9030105013 9030131016 9052014004 91551G0840 91553G1040
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-F2020

M20CFKS..MXAA5#

 1
22271 - GASKET, THROTTLE BODY
22271-F2020

M20CFKS..MXAA5#

 1
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23101-F2020

M20CFKS..MXAA5#

 1
23214A - PROTECTOR, FUEL PUMP
23214-F2030

M20CFKS..MXAA5#

 1
23224D - GASKET, FUEL PUMP SPACER
23224-25010

M20CFKS..MXAA5#

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

M20CFKS..MXAA5#

(J)

 4
90301-C0072

M20CFKS..MXAA5#

(L)

 4
23250E - INJECTOR ASSY, FUEL(FOR DIRECT)
23209-2401004

M20CFKS..MXAA5#

MARK 4,(J),REFER R/M

 4
23209-2401005

M20CFKS..MXAA5#

MARK 5,(J),REFER R/M

 4
23209-2401001

M20CFKS..MXAA5#

MARK 1,(J),REFER R/M

 4
23209-2401006

M20CFKS..MXAA5#

MARK 6,(J),REFER R/M

 4
23209-2401003

M20CFKS..MXAA5#

MARK 3,(J),REFER R/M

 4
23209-2401008

M20CFKS..MXAA5#

MARK 8,(J),REFER R/M

 4
23209-2401007

M20CFKS..MXAA5#

MARK 7,(J),REFER R/M

 4
23209-F203006

M20CFKS..MXAA5#

MARK 6,(L),REFER R/M

 4
23209-2401002

M20CFKS..MXAA5#

MARK 2,(J),REFER R/M

 4
23209-F203007

M20CFKS..MXAA5#

MARK 7,(L),REFER R/M

 4
23209-F203008

M20CFKS..MXAA5#

MARK 8,(L),REFER R/M

 4
23209-F203005

M20CFKS..MXAA5#

MARK 5,(L),REFER R/M

 4
23209-F203009

M20CFKS..MXAA5#

MARK 9,(L),REFER R/M

 4
23209-F203002

M20CFKS..MXAA5#

MARK 2,(L),REFER R/M

 4
23209-F203001

M20CFKS..MXAA5#

MARK 1,(L),REFER R/M

 4
23209-F203003

M20CFKS..MXAA5#

MARK 3,(L),REFER R/M

 4
23209-F203004

M20CFKS..MXAA5#

MARK 4,(L),REFER R/M

 4
23209-2401009

M20CFKS..MXAA5#

MARK 9,(J),REFER R/M

 4
23250F - INJECTOR ASSY, FUEL(FOR PORT)
23209-29165

M20CFKS..MXAA5#

 4
23255A - SEAL, FUEL INJECTOR
23255-25010

M20CFKS..MXAA5#

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-25010

M20CFKS..MXAA5#

 4
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-31030

M20CFKS..MXAA5#

PNC23250E=23209F2030

 4
23258-47010

M20CFKS..MXAA5#

PNC23250E=2320924010

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0V010

M20CFKS..MXAA5#

 4
23291A - INSULATOR, INJECTOR VIBRATION
23291-31020

M20CFKS..MXAA5#

 4
23470 - LIFTER ASSY, FUEL PUMP
23470-0Y010

M20CFKS..MXAA5#

 1
23477 - GUIDE, FUEL PUMP LIFTER
23477-F2050

M20CFKS..MXAA5#

 1
23695A - CLAMP, NOZZLE HOLDER
23695-24010

M20CFKS..MXAA5#

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-F2020

M20CFKS..MXAA5#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-F2030

M20CFKS..MXAA5#

 1
23814B - PIPE, FUEL DELIVERY
23814-24010

M20CFKS..MXAA5#

 1
23825 - GUARD, FUEL DELIVERY
23825-24010

M20CFKS..MXAA5#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0V040

M20CFKS..MXAA5#

 1
23841K - CLAMP, FUEL PIPE
23841-25040

M20CFKS..MXAA5#

(J)

 1
23841-F2030

M20CFKS..MXAA5#

(L)

 1
23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1
23851-F2020

M20CFKS..MXAA5#

 1
23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2
23851-F2030

M20CFKS..MXAA5#

 1
23891 - SPACER, FUEL DELIVERY
23891-24010

M20CFKS..MXAA5#

 2
23901 - TUBE SUB-ASSY, FUEL
23901-F0220

M20CFKS..MXAA5#

 1
23910A - TUBE SUB-ASSY, FUEL
23901-24081

M20CFKS..MXAA5#

(J)

 1
23901-F2110

M20CFKS..MXAA5#

(L)

 1
Common parts
90105-06350
90105-06351
90105-06352
90105-08510
90301-05013
90301-31016
90520-14004
91551-G0840
91553-G1040
