AXAP54L-GNXMBC (2021)
Toyota Wildlander
Production
May 2021
-
Sep 9999
Engine
A25DFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

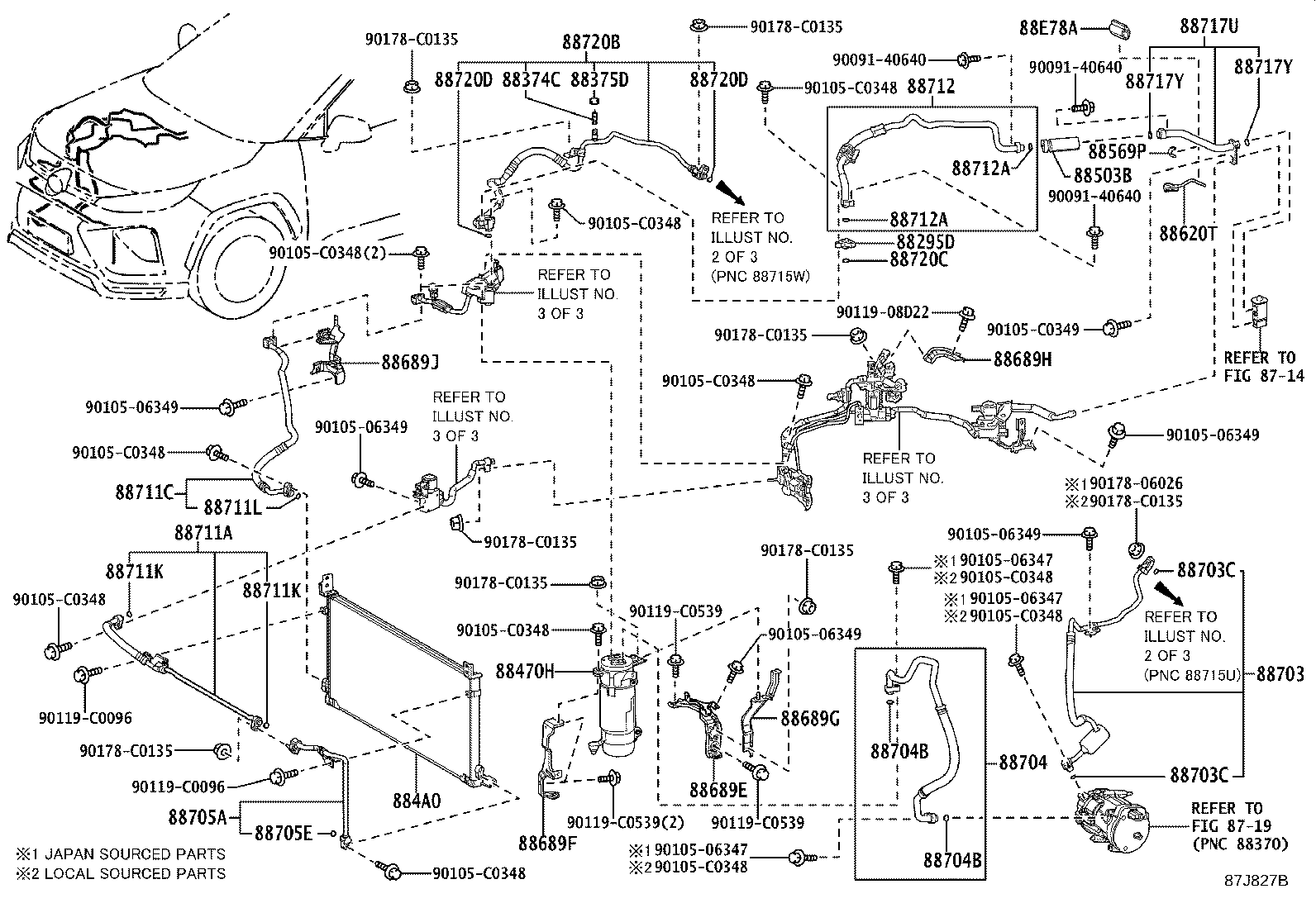

ILLUST NO. 1 OF 3(2105- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295D - TUBE, VALVE TO CONNECTOR, NO.4 | ||||
| 88295-0R080 |
AXAP5# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-74010 |
AXAP5# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-74010 |
AXAP5# |
1 | ||
| 88470H - ACCUMULATOR ASSY | ||||
| 88470-42100 |
AXAP5# |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-42050 |
AXAP5# |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-0R020 |
AXAP5# |
1 | ||
| 88569P - CLAMP, COOLER, NO.4 | ||||
| 88569-47020 |
AXAP5# |
1 | ||
| 88620T - THERMISTOR ASSY, AIR CONDITIONER NO.4 | ||||
| 88620-0R120 |
AXAP5# |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-0R180 |
AXAP5# |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-0R230 |
AXAP5# |
1 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-0R240 |
AXAP5# |
1 | ||
| 88689H - BRACKET, COOLER, NO.4 | ||||
| 88688-0R250 |
AXAP5# |
1 | ||
| 88689J - BRACKET, COOLER, NO.5 | ||||
| 88688-0R260 |
AXAP5# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0R100 |
AXAP5# |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0R160 |
AXAP5# |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-0R040 |
AXAP5# |
1 | ||
| 88705E - RING, O, NO.1(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-0R090 |
AXAP5# |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-0R100 |
AXAP5# |
1 | ||
| 88711K - RING, O, NO.2(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP5# |
2 | ||
| 88711K - RING, O, NO.2(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP5# |
2 | ||
| 88711L - RING, O, NO.3(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0R020 |
AXAP5# |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14157 |
AXAP5# |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14157 |
AXAP5# |
2 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-0R040 |
AXAP5# |
1 | ||
| 88717Y - RING, O, NO.1(FOR SUCTION TUBE) | ||||
| 90099-14121 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88717Y - RING, O, NO.1(FOR SUCTION TUBE) | ||||
| 90099-14121 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-0R040 |
AXAP5# |
1 | ||
| 88720C - RING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 88720D - RING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 88720D - RING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 88E78A - PACKING, COOLER, NO.3 | ||||
| 88578-47060 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90091-40640 | ||||
| 90105-06347 | ||||
| 90105-06349 | ||||
| 90105-C0348 | ||||
| 90105-C0349 | ||||
| 90119-08D22 | ||||
| 90119-C0096 | ||||
| 90119-C0539 | ||||
| 90178-06026 | ||||
| 90178-C0135 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

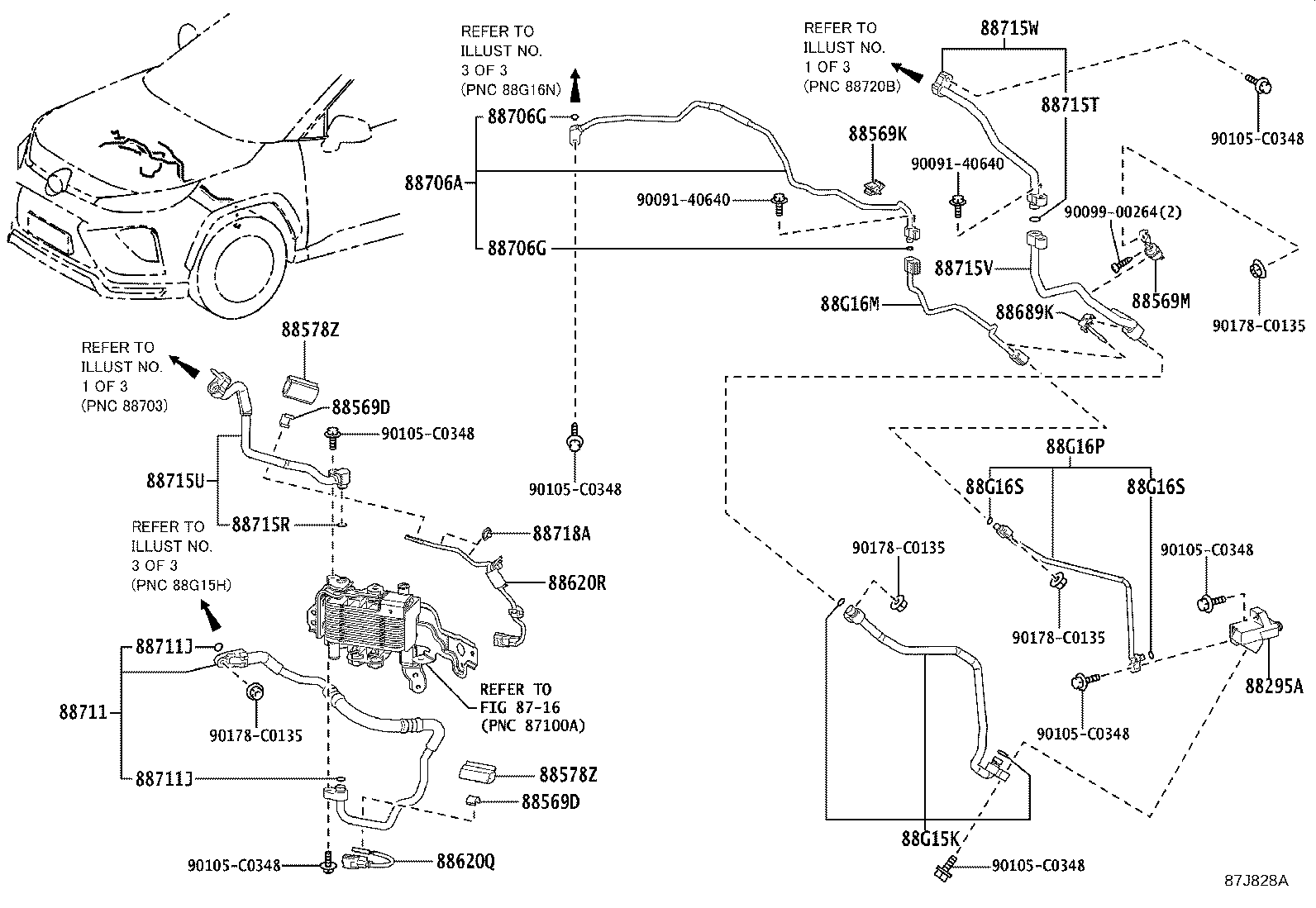

ILLUST NO. 2 OF 3(2105- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295A - TUBE, VALVE TO CONNECTOR | ||||
| 88295-0R020 |
AXAP5# |
1 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-74090 |
AXAP5# |
2 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-74090 |
AXAP5# |
2 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88718-50330 |
AXAP5# |
1 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88718-0R050 |
AXAP5# |
1 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-47070 |
AXAP5# |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-47070 |
AXAP5# |
2 | ||
| 88620Q - THERMISTOR ASSY, AIR CONDITIONER NO.1 | ||||
| 88620-0R090 |
AXAP5# |
1 | ||
| 88620R - THERMISTOR ASSY, AIR CONDITIONER NO.2 | ||||
| 88620-0R100 |
AXAP5# |
1 | ||
| 88689K - BRACKET, COOLER, NO.6 | ||||
| 88688-0R430 |
AXAP5# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-0R110 |
AXAP5# |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0R150 |
AXAP5# |
1 | ||
| 88711J - RING, O, NO.1(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88711J - RING, O, NO.1(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
1 | ||
| 88715T - RING, O, NO.3(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 88715U - TUBE, DISCHARGE, NO.1 | ||||
| 88715-0R110 |
AXAP5# |
1 | ||
| 88715V - TUBE, DISCHARGE, NO.2 | ||||
| 88715-0R120 |
AXAP5# |
1 | ||
| 88715W - TUBE, DISCHARGE, NO.3 | ||||
| 88715-0R130 |
AXAP5# |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-42150 |
AXAP5# |
2 | ||
| 88G15K - TUBE, DISCHARGE, NO.9 | ||||
| 88715-0R020 |
AXAP5# |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-0R150 |
AXAP5# |
1 | ||
| 88G16P - TUBE, LIQUID, NO.3 | ||||
| 88716-0R120 |
AXAP5# |
1 | ||
| 88G16S - RING, O, NO.3(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| 88G16S - RING, O, NO.3(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| Common parts | ||||
| 90091-40640 | ||||
| 90099-00264 | ||||
| 90105-C0348 | ||||
| 90178-C0135 | ||||
| Linked diagrams | ||||
| 8716 | ||||

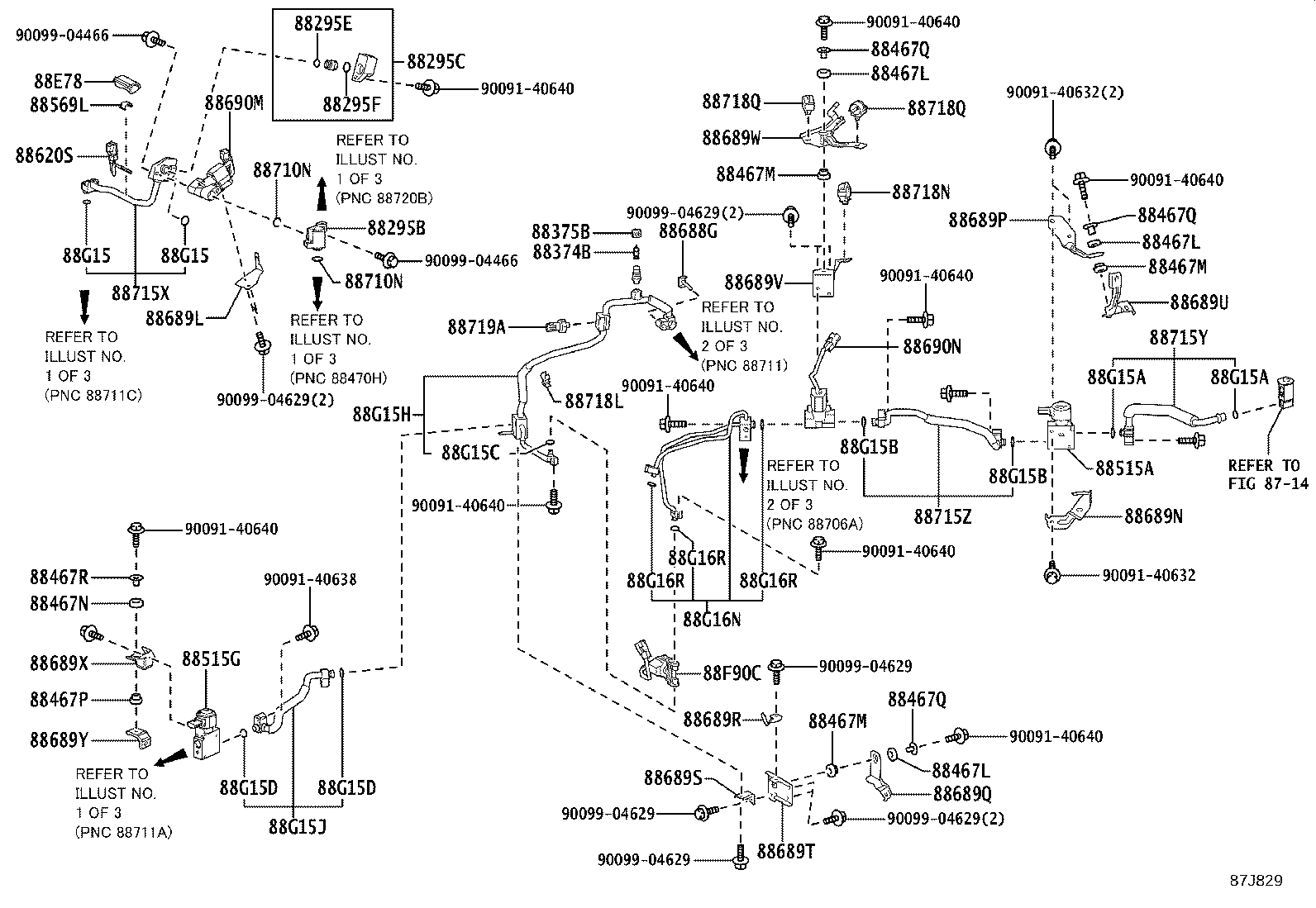

ILLUST NO. 3 OF 3(2105- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295B - TUBE, VALVE TO CONNECTOR, NO.2 | ||||
| 88295-0R060 |
AXAP5# |
1 | ||
| 88295C - TUBE, VALVE TO CONNECTOR, NO.3 | ||||
| 88295-0R070 |
AXAP5# |
1 | ||
| 88295E - RING, O, NO.1(FOR TUBE, VALVE TO CONNECTOR) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 88295F - RING, O, NO.2(FOR TUBE, VALVE TO CONNECTOR) | ||||
| 90099-14169 |
AXAP5# ID=17.2,OD=22.0 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AXAP5# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
AXAP5# |
1 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP5# |
3 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP5# |
3 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP5# |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP5# |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP5# |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP5# |
3 | ||
| 88467N - CUSHION, COOLER, NO.3 | ||||
| 88467-47020 |
AXAP5# |
1 | ||
| 88467P - CUSHION, COOLER, NO.4 | ||||
| 88467-47030 |
AXAP5# |
1 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP5# |
3 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP5# |
3 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP5# |
3 | ||
| 88467R - BUSH, NO.2 | ||||
| 88467-14050 |
AXAP5# |
1 | ||
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-0R070 |
AXAP5# |
1 | ||
| 88515G - VALVE, COOLER EXPANSION, NO.2 | ||||
| 88515-0R080 |
AXAP5# |
1 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-74090 |
AXAP5# |
1 | ||
| 88620S - THERMISTOR ASSY, AIR CONDITIONER NO.3 | ||||
| 88620-0R110 |
AXAP5# |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-0E250 |
AXAP5# |
1 | ||
| 88689L - BRACKET, COOLER, NO.7 | ||||
| 88688-0R440 |
AXAP5# |
1 | ||
| 88689N - BRACKET, COOLER, NO.9 | ||||
| 88688-0R450 |
AXAP5# |
1 | ||
| 88689P - BRACKET, COOLER, NO.10 | ||||
| 88688-0R460 |
AXAP5# |
1 | ||
| 88689Q - BRACKET, COOLER, NO.11 | ||||
| 88688-0R470 |
AXAP5# |
1 | ||
| 88689R - BRACKET, COOLER, NO.12 | ||||
| 88688-0R480 |
AXAP5# |
1 | ||
| 88689S - BRACKET, COOLER, NO.13 | ||||
| 88688-0R490 |
AXAP5# |
1 | ||
| 88689T - BRACKET, COOLER, NO.14 | ||||
| 88688-0R500 |
AXAP5# |
1 | ||
| 88689U - BRACKET, COOLER, NO.15 | ||||
| 88688-0R510 |
AXAP5# |
1 | ||
| 88689V - BRACKET, COOLER, NO.16 | ||||
| 88688-0R520 |
AXAP5# |
1 | ||
| 88689W - BRACKET, COOLER, NO.17 | ||||
| 88688-0R530 |
AXAP5# |
1 | ||
| 88689X - BRACKET, COOLER, NO.18 | ||||
| 88688-0R540 |
AXAP5# |
1 | ||
| 88689Y - BRACKET, COOLER, NO.19 | ||||
| 88688-0R550 |
AXAP5# |
1 | ||
| 88690M - VALVE ASSY, MAGNET, NO.1 | ||||
| 88690-0R040 |
AXAP5# |
1 | ||
| 88690N - VALVE ASSY, MAGNET, NO.2 | ||||
| 88690-0R050 |
AXAP5# |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
2 | ||
| 88715X - TUBE, DISCHARGE, NO.4 | ||||
| 88715-0R140 |
AXAP5# |
1 | ||
| 88715Y - TUBE, DISCHARGE, NO.5 | ||||
| 88715-0R150 |
AXAP5# |
1 | ||
| 88715Z - TUBE, DISCHARGE, NO.6 | ||||
| 88715-0R160 |
AXAP5# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-2J230 |
AXAP5# |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-42110 |
AXAP5# |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-0R060 |
AXAP5# |
2 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-0R060 |
AXAP5# |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXAP5# |
1 | ||
| 88E78 - PACKING, COOLER, NO.2 | ||||
| 88578-47070 |
AXAP5# |
1 | ||
| 88F90C - VALVE ASSY, MAGNET NO.3 | ||||
| 88690-0R060 |
AXAP5# |
1 | ||
| 88G15 - RING, O, NO.4(FOR DISCHARGE TUBE) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 90099-14155 |
AXAP5# |
1 | ||
| 88G15 - RING, O, NO.4(FOR DISCHARGE TUBE) | ||||
| 90099-14157 |
AXAP5# ID=13.4,OD=18.2 |
1 | ||
| 90099-14155 |
AXAP5# |
1 | ||
| 88G15A - RING, O, NO.5(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15A - RING, O, NO.5(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15B - RING, O, NO.6(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15B - RING, O, NO.6(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15C - RING, O, NO.7(FOR DISCHARGE TUBE) | ||||
| 90099-14119 |
AXAP5# ID=6.7,OD=10.3 |
1 | ||
| 88G15D - RING, O, NO.8(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15D - RING, O, NO.8(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP5# ID=10.8,OD=15.6 |
2 | ||
| 88G15H - TUBE, DISCHARGE, NO.7 | ||||
| 88715-0R170 |
AXAP5# |
1 | ||
| 88G15J - TUBE, DISCHARGE, NO.8 | ||||
| 88715-0R180 |
AXAP5# |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-0R160 |
AXAP5# |
1 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 90099-14158 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 90099-14158 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP5# |
1 | ||
| 90099-14158 |
AXAP5# ID=6.7,OD=10.3 |
2 | ||
| Common parts | ||||
| 90091-40632 | ||||
| 90091-40638 | ||||
| 90091-40640 | ||||
| 90099-04466 | ||||
| 90099-04629 | ||||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
