AXAP54L-GNXMBC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

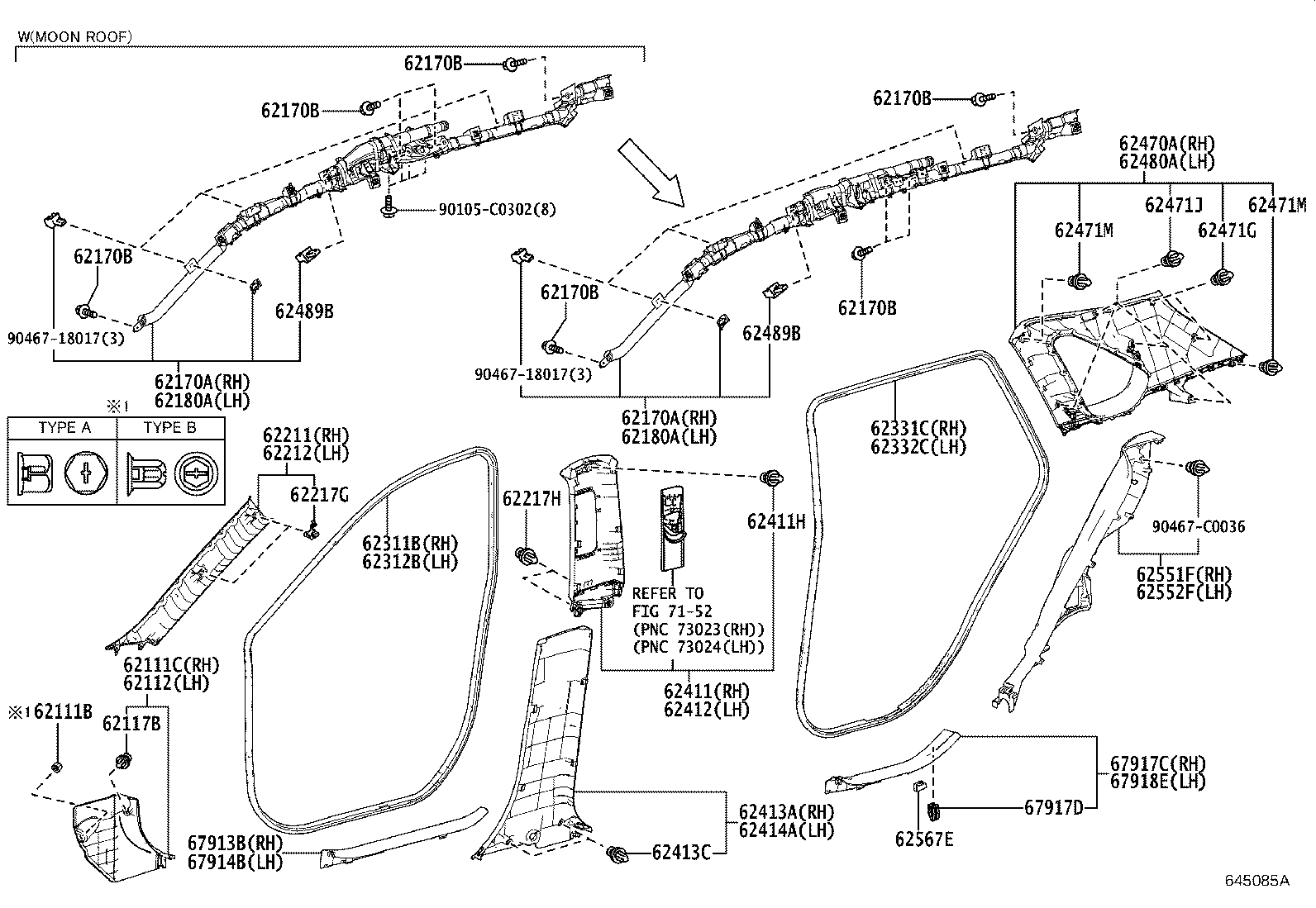

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62117B 62170A 62170A 62170B 62170B 62170B 62170B 62170B 62170B 62180A 62180A 62211 62212 62217G 62217H 62311B 62312B 62331C 62332C 62411 62411H 62412 62413A 62413C 62414A 62470A 62471G 62471J 62471M 62471M 62480A 62489B 62489B 62551F 62552F 62567E 67913B 67914B 67917C 67917D 67918E 7152 90105C0302 9046718017 9046718017 90467C0036
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06147

AXAP5#

TYPE A:REFER ILLUST.

 2
90467-06155

AXAP5#

TYPE B:REFER ILLUST.

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-0R080C0

AXAP5#

BLACK,TRIM2#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0R080C0

AXAP5#

BLACK,TRIM2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-C0036

AXAP5#

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0R130

AXAP54..A

 1
62170-0R090

AXAP5#..M

 1
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0R130

AXAP54..A

 1
62170-0R090

AXAP5#..M

 1
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62170B - BOLT, W/WASHER
90119-C0107

AXAP5#

 8
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0R090

AXAP5#..M

 1
62180-0R130

AXAP54..A

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0R090

AXAP5#..M

 1
62180-0R130

AXAP54..A

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-0R160B0

AXAP5#

LT.GRAY,TRIM2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-0R160B0

AXAP5#

LT.GRAY,TRIM2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-42050

AXAP5#

 4
62217H - CLIP, CENTER PILLER GARNISH
90467-C0024

AXAP5#

 4
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0R080

AXAP5#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0R080

AXAP5#

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0R080

AXAP5#

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0R080

AXAP5#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-0R090B0

AXAP5#

LT.GRAY,TRIM2#

 1
62411H - CLIP
90467-10167

AXAP5#

 2
62412 - GARNISH, CENTER PILLAR, LH
62420-0R090B0

AXAP5#

LT.GRAY,TRIM2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0R080C0

AXAP5#

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-C0036

AXAP5#

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0R080C0

AXAP5#

BLACK,TRIM2#

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-0R100B0

AXAP5#

LT.GRAY,TRIM2#

 1
62471G - CLIP, ROOF SIDE INNER GARNISH
90467-10167

AXAP5#

 4
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-09240

AXAP5#

 8
62471M - CLIP
90467-C0036

AXAP5#

 4
62471M - CLIP
90467-C0036

AXAP5#

 4
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-0R120B0

AXAP5#

LT.GRAY,TRIM2#

 1
62489B - CLIP, ROOF SIDE INNER GARNISH
62489-28010

AXAP5#

 2
62489B - CLIP, ROOF SIDE INNER GARNISH
62489-28010

AXAP5#

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62555-0R100C0

AXAP5#

BLACK,TRIM2#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62556-0R130C0

AXAP5#

BLACK,TRIM2#

 1
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33040

AXAP5#

 2
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-0R090C0

AXAP5#

BLACK,TRIM2#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-0R090C0

AXAP5#

BLACK,TRIM2#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-0R120C0

AXAP5#

BLACK,TRIM2#

 1
67917D - CLIP, REAR DOOR SCUFF PLATE
90467-05171

AXAP5#

 2
67918E - PLATE, REAR DOOR SCUFF, LH
67918-0R120C0

AXAP5#

BLACK,TRIM2#

 1
Common parts
90105-C0302
90467-18017
90467-C0036
Linked diagrams
7152
