AXAP54L-GNXMBC (2021)
Toyota Wildlander
Production
May 2021
-
Sep 9999
Engine
A25DFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(2105- )AXAP54
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100H - FRAME ASSY, FRONT | ||||
| 51100-0R031 |
AXAP5# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0R100 |
AXAP54 |
1 | ||
| 51407B - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51401-0R040 |
AXAP5# |
1 | ||
| 51468B - INSULATOR, ENGINE UNDER COVER HEAT | ||||
| 51468-0R050 |
AXAP5# |
1 | ||
| 52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-0R060 |
AXAP5# |
1 | ||
| 52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-0R060 |
AXAP5# |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-0R030 |
AXAP5# |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52271-0R030 |
AXAP5# |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06080 |
AXAP5# |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52276-0R030 |
AXAP5# LH |
1 | ||
| 52275-0R030 |
AXAP5# RH |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52276-0R030 |
AXAP5# LH |
1 | ||
| 52275-0R030 |
AXAP5# RH |
1 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-0R030 |
AXAP5# |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-0R030 |
AXAP5# |
2 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-0R080 |
AXAP5# |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52297-0R080 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90116-C0009 | ||||
| 90119-C0271 | ||||
| 90119-C0495 | ||||
| 90119-C0515 | ||||
| 90119-C0525 | ||||
| 90119-C0567 | ||||
| 90178-08022 | ||||
| 90178-C0050 | ||||
| 90178-C0134 | ||||
| 90179-08284 | ||||
| 90467-C0043 | ||||

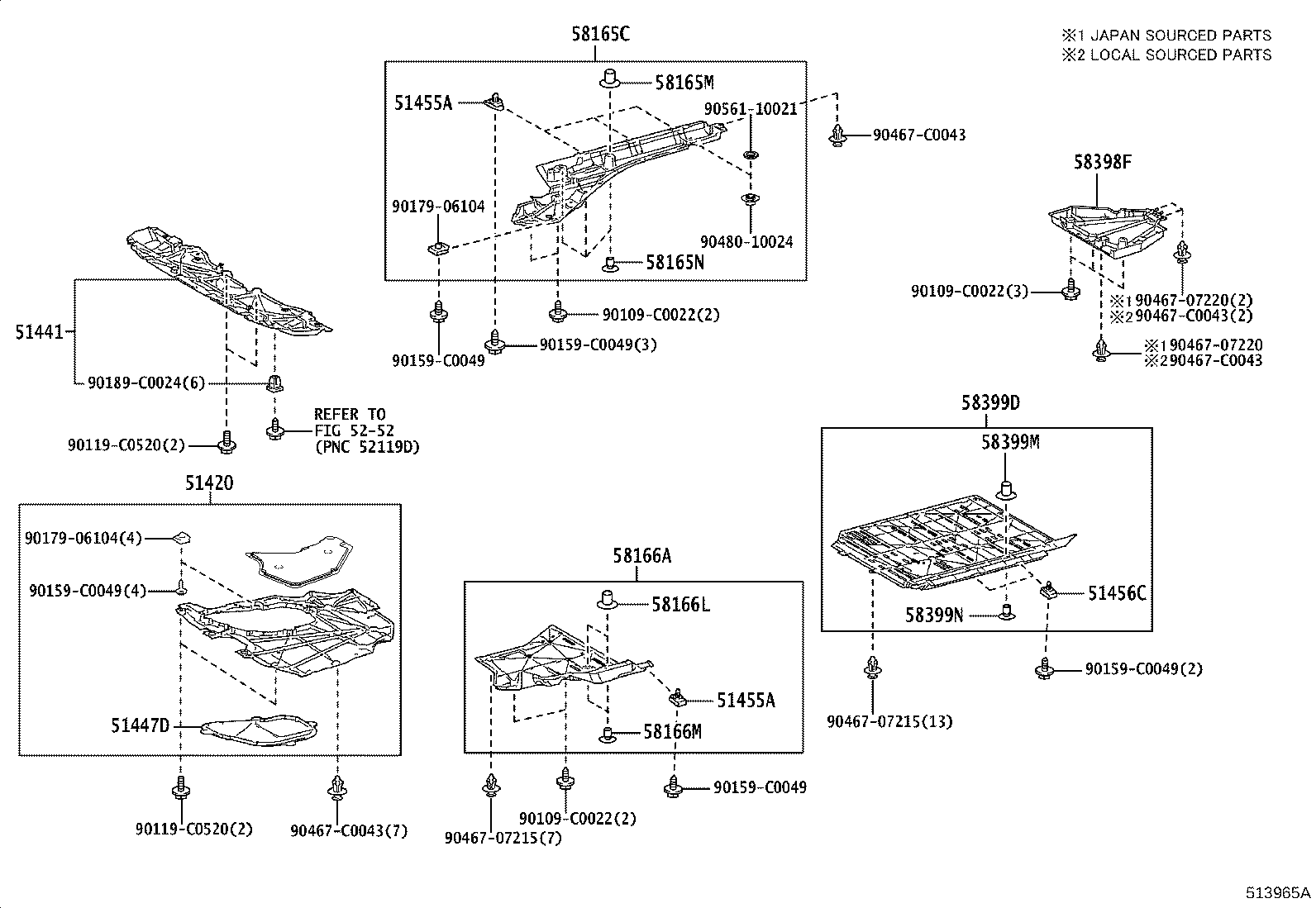

ILLUST NO. 2 OF 2(2105- )AXAP54
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-0R050 |
AXAP5# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-0R120 |
AXAP5# |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-0R080 |
AXAP5# |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48020 |
AXAP5# |
4 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48020 |
AXAP5# |
4 | ||
| 51456C - SEAL, ENGINE UNDER COVER, NO.2 | ||||
| 51455-48020 |
AXAP5# |
2 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-0R090 |
AXAP5# |
1 | ||
| 58165M - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
AXAP5# SUPER WHITE 2 |
3 | ||
| 58165N - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
AXAP5# BLACK |
3 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-0R080 |
AXAP5# |
1 | ||
| 58166L - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
AXAP5# SUPER WHITE 2 |
2 | ||
| 58166M - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
AXAP5# BLACK |
2 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-0R121 |
AXAP54 |
1 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-0R060 |
AXAP5# |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
AXAP5# SUPER WHITE 2 |
1 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
AXAP5# BLACK |
1 | ||
| Common parts | ||||
| 90109-C0022 | ||||
| 90119-C0520 | ||||
| 90159-C0049 | ||||
| 90179-06104 | ||||
| 90189-C0024 | ||||
| 90467-07215 | ||||
| 90467-07220 | ||||
| 90467-C0043 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 5252 | ||||
