AXAP54L-GNXMBC (2021)
Toyota Wildlander
Production
May 2021
-
Sep 9999
Engine
A25DFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

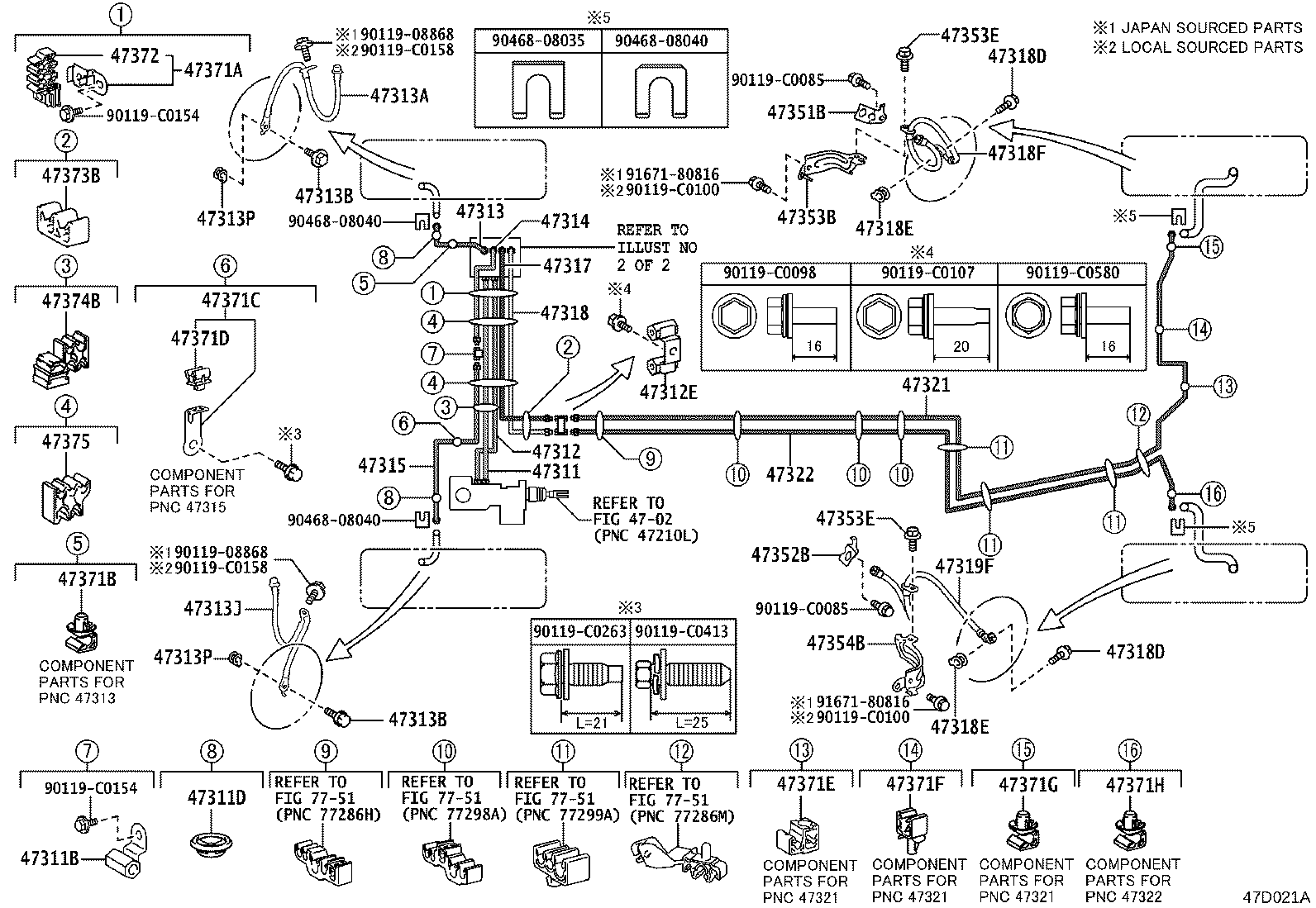

ILLUST NO. 1 OF 2(2105- )
Click highlighted areas on diagram
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0R150 |
AXAP5# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0002 |
AXAP5# (L) |
1 | ||
| 90412-10272 |
AXAP5# (J) |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
AXAP5# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0R140 |
AXAP5# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0004 |
AXAP5# (L) |
1 | ||
| 90412-10285 |
AXAP5# (J) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0R180 |
AXAP5# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2090 |
AXAP5# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXAP5# (L) |
2 | ||
| 90401-10058 |
AXAP5# (J) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXAP5# (L) |
2 | ||
| 90401-10058 |
AXAP5# (J) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2091 |
AXAP5# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAP5# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAP5# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0R200 |
AXAP5# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0R090 |
AXAP5# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0R180 |
AXAP5# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0R180 |
AXAP5# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXAP5# (L) |
2 | ||
| 90401-10058 |
AXAP5# (J) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-C0001 |
AXAP5# (L) |
2 | ||
| 90401-10058 |
AXAP5# (J) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAP5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXAP5# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2074 |
AXAP5# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2075 |
AXAP5# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0R130 |
AXAP5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0R130 |
AXAP5# |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-06070 |
AXAP5# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-06070 |
AXAP5# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-06060 |
AXAP5# |
1 | ||
| 47353E - BOLT(FOR FLEXIBLE HOSE BRACKET) | ||||
| 90119-C0158 |
AXAP5# (L) |
2 | ||
| 90119-08868 |
AXAP5# (J) |
2 | ||
| 47353E - BOLT(FOR FLEXIBLE HOSE BRACKET) | ||||
| 90119-C0158 |
AXAP5# (L) |
2 | ||
| 90119-08868 |
AXAP5# (J) |
2 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-06060 |
AXAP5# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-0R110 |
AXAP5# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D17 |
AXAP5# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-0R130 |
AXAP5# |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01D56 |
AXAP5# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01C82 |
AXAP5# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E01 |
AXAP5# |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-C1003 |
AXAP5# |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-C1003 |
AXAP5# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E31 |
AXAP5# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00903 |
AXAP5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E30 |
AXAP5# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E40 |
AXAP5# |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0154 | ||||
| 90119-C0158 | ||||
| 90119-C0263 | ||||
| 90119-C0413 | ||||
| 90119-C0580 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

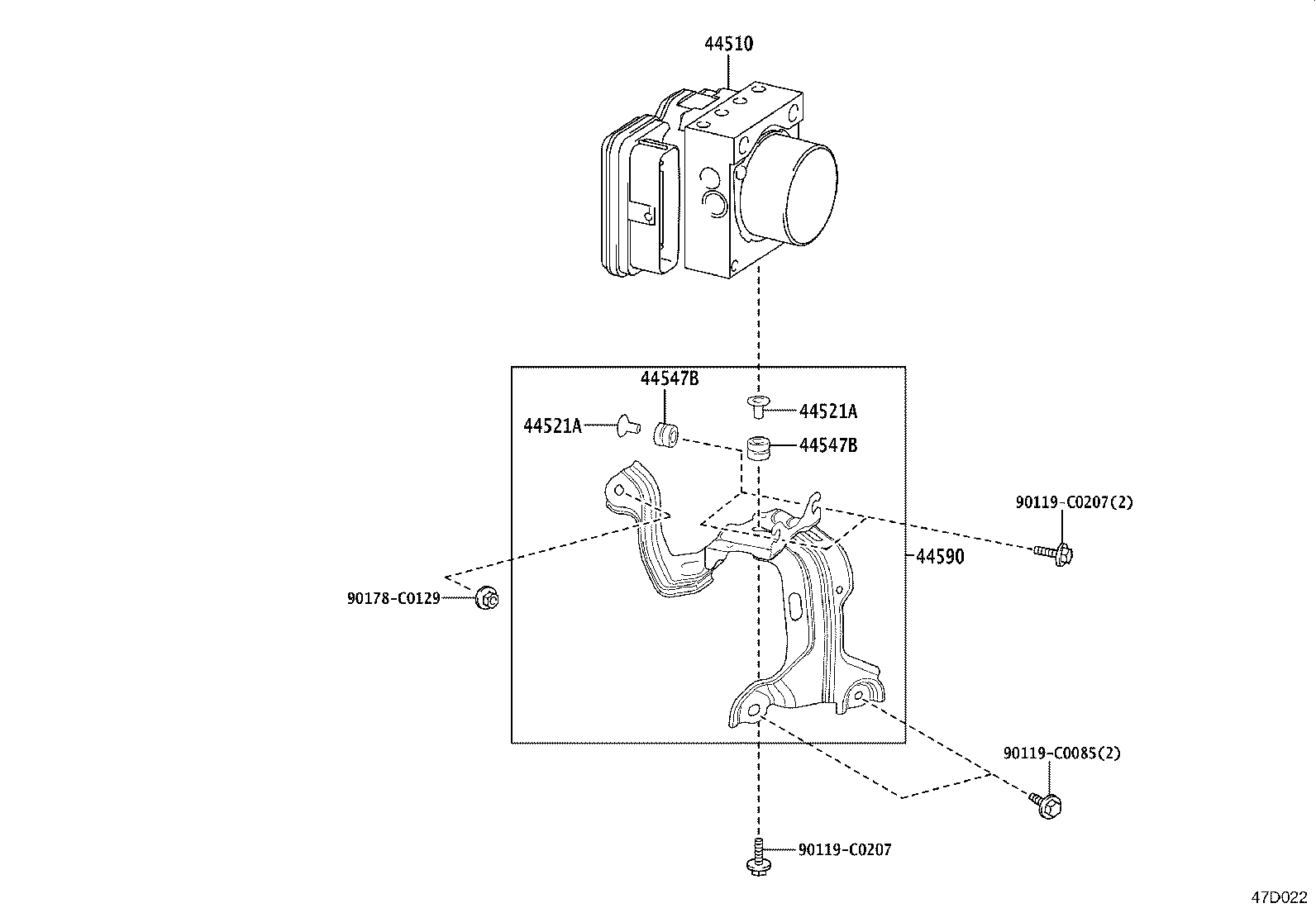

ILLUST NO. 2 OF 2(2105- )
Click highlighted areas on diagram
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-0R460 |
AXAP5# *614 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
AXAP5# |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
AXAP5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44546-12120 |
AXAP5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44546-12120 |
AXAP5# |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-0R120 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90119-C0085 | ||||
| 90119-C0207 | ||||
| 90178-C0129 | ||||
