AXAP54L-GNXMBC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

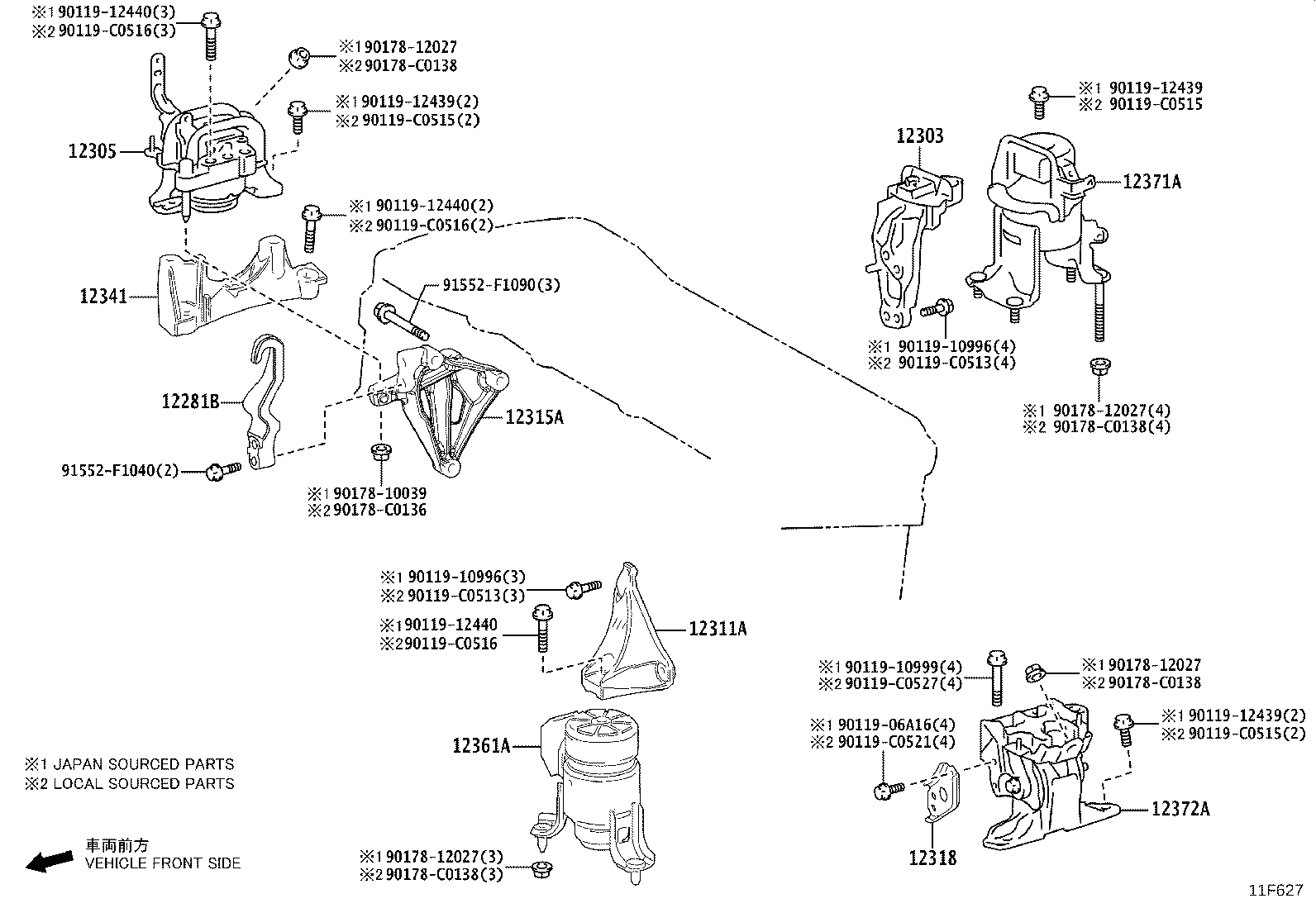

Click highlighted areas on diagram

diagram 12281B 12303 12305 12311A 12315A 12318 12341 12361A 12371A 12372A 9011906A16 9011910996 9011910996 9011910999 9011912439 9011912439 9011912439 9011912440 9011912440 9011912440 90119C0513 90119C0513 90119C0515 90119C0515 90119C0515 90119C0516 90119C0516 90119C0516 90119C0521 90119C0527 9017810039 9017812027 9017812027 9017812027 9017812027 90178C0136 90178C0138 90178C0138 90178C0138 90178C0138 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-F2010

A25DFXS..AXAP5#

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-F0210

A25DFXS..AXAP5#

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-F0180

A25DFXS..AXAP5#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-F0150

A25DFXS..AXAP5#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-F0020

A25DFXS..AXAP5#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-F0150

A25DFXS..AXAP5#

 1
12341 - SPACER, ENGINE MOUNTING
12341-F0040

A25DFXS..AXAP5#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-F0190

A25DFXS..AXAP5#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-F0200

A25DFXS..AXAP5#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-F0100

A25DFXS..AXAP5#

 1
Common parts
90119-06A16
90119-10996
90119-10999
90119-12439
90119-12440
90119-C0513
90119-C0515
90119-C0516
90119-C0521
90119-C0527
90178-10039
90178-12027
90178-C0136
90178-C0138
91552-F1040
91552-F1090
