AXAP54L-GNXABC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2105- )

Click highlighted areas on diagram

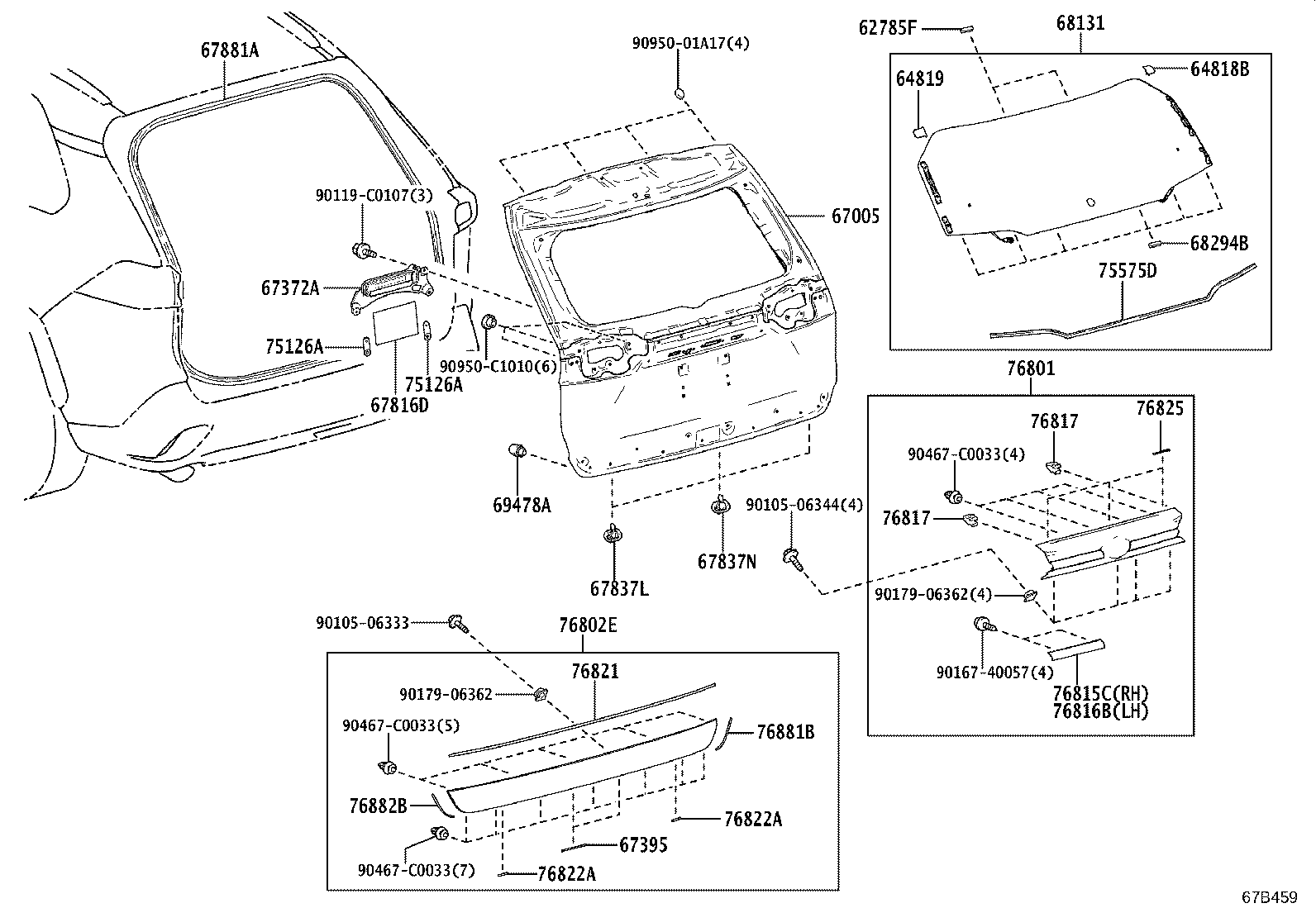

DOOR PANEL

diagram 62785F 64818B 64819 67005 67372A 67395 67816D 67837L 67837N 67881A 68131 68294B 69478A 75126A 75126A 75575D 76801 76802E 76815C 76816B 76817 76817 76821 76822A 76822A 76825 76881B 76882B 9010506333 9010506344 90119C0107 9016740057 9017906362 9017906362 90467C0033 90467C0033 90467C0033 9095001A17 90950C1010
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

AXAP5#

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-0R070

AXAP5#

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-0R070

AXAP5#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-0R350

AXAP54..A

 1
67372A - WEIGHT, BACK DOOR
67372-0R060

AXAP5#

 1
67395 - PROTECTOR, BACK DOOR, LOWER
76882-0R020

AXAP5#

 2
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-0R030

AXAP5#

 1
67837L - SEAL, DOOR DUST PROOF
67837-0R130

AXAP5#

 2
67837N - SEAL, BACK DOOR DUST PROOF
67837-0R140

AXAP5#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-0R071

AXAP5#

 1
68131 - GLASS, BACK DOOR
68105-0R160

AXAP5#

 1
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

AXAP5#

 6
69478A - CUSHION, BACK DOOR LOWER STOPPER
69478-0R030

AXAP5#

 2
75126A - PLATE, REAR LICENSE PLATE BRACKET SUPPORT
75126-06010

AXAP5#

 2
75126A - PLATE, REAR LICENSE PLATE BRACKET SUPPORT
75126-06010

AXAP5#

 2
75575D - MOULDING, BACK WINDOW, LOWER
75575-0R080

AXAP5#

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-0R140

AXAP5#

PAINT REQ.

 1
76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
76802-0R090

AXAP54

 1
76815C - MOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH
76815-0R070

AXAP5#

 1
76816B - MOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH
76816-0R070

AXAP5#

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-05171

AXAP5#

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-05171

AXAP5#

 2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-0R080

AXAP5#

 1
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76822-0R040

AXAP5#

 2
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76822-0R040

AXAP5#

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76823-0R060

AXAP5#

 3
76881B - PROTECTOR, BACK DOOR LOWER MOULDING, RH
76881-0R030

AXAP5#

 1
76882B - PROTECTOR, BACK DOOR LOWER MOULDING, LH
76881-0R030

AXAP5#

 1
Common parts
90105-06333
90105-06344
90119-C0107
90167-40057
90179-06362
90467-C0033
90950-01A17
90950-C1010

ILLUST NO. 2 OF 2(2105- )

Click highlighted areas on diagram

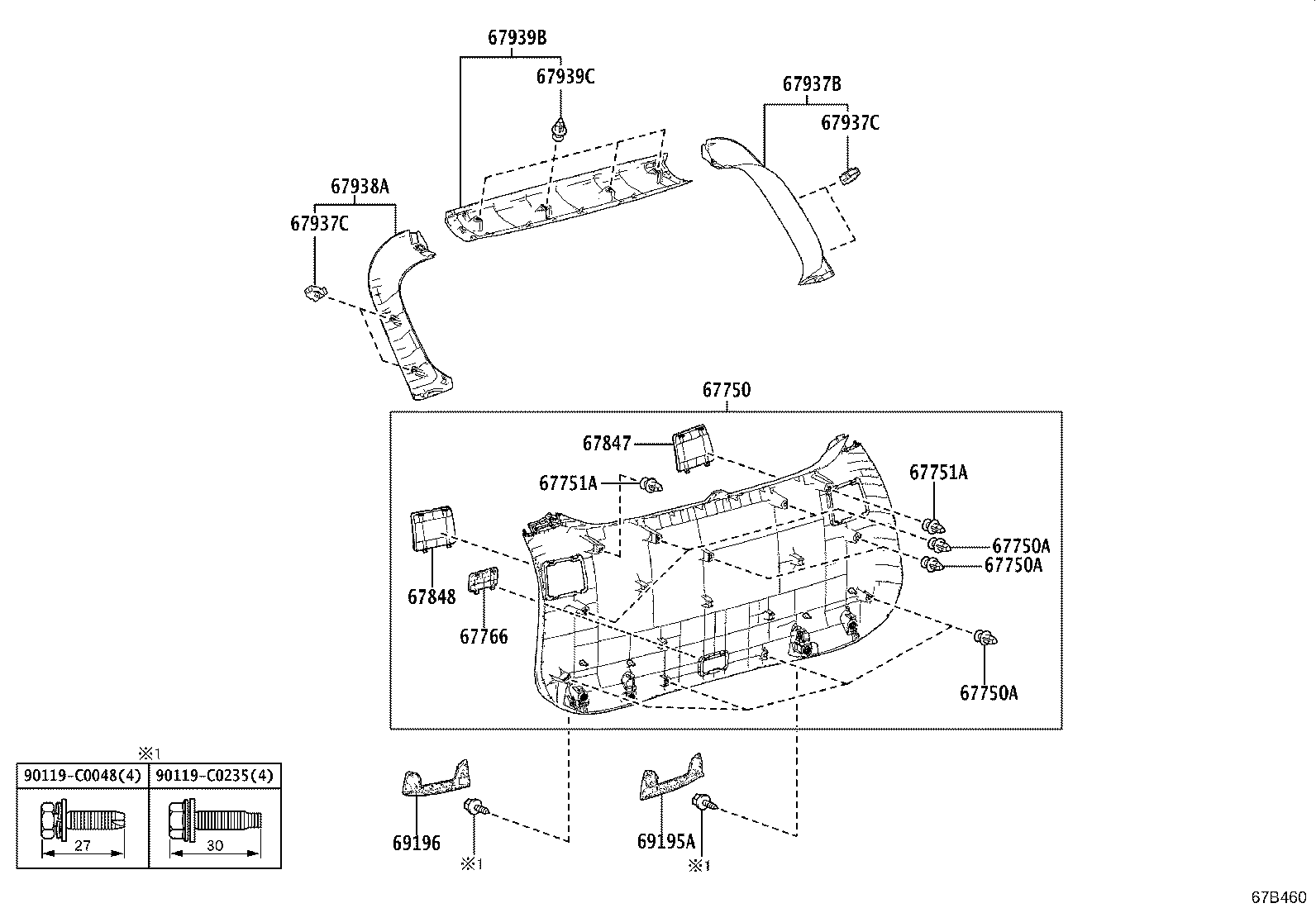

DOOR TRIM

diagram 67750 67750A 67750A 67750A 67751A 67751A 67766 67847 67848 67937B 67937C 67937C 67938A 67939B 67939C 69195A 69196 90119C0048 90119C0235
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-0R110C0

AXAP5#

BLACK,TRIM2#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-C0036

AXAP5#

 9
67750A - CLIP(FOR BACK DOOR TRIM)
90467-C0036

AXAP5#

 9
67750A - CLIP(FOR BACK DOOR TRIM)
90467-C0036

AXAP5#

 9
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09232

AXAP5#

 2
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-09232

AXAP5#

 2
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-0R050C0

AXAP5#

BLACK,TRIM2#

 1
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-0R080C0

AXAP5#

BLACK,TRIM2#

 1
67848 - COVER, BACK DOOR SERVICE HOLE, LH
67848-0R050C0

AXAP5#

BLACK,TRIM2#

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-0R070C0

AXAP5#

BLACK,TRIM2#

 1
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241

AXAP5#

 4
67937C - CLIP(FOR BACK DOOR SIDE GARNISH)
90467-09241

AXAP5#

 4
67938A - GARNISH, BACK DOOR SIDE, LH
67938-0R080C0

AXAP5#

BLACK,TRIM2#

 1
67939B - GARNISH, BACK DOOR, CENTER
67939-0R110C0

AXAP54..A

BLACK,TRIM2#

 1
67939C - CLIP(FOR BACK DOOR CENTER GARNISH)
90467-C0036

AXAP5#

 4
69195A - GRIP, BACK DOOR
69195-0R030C0

AXAP5#

BLACK,TRIM2#

 1
69196 - BASE, BACK DOOR GRIP
69196-0R030C0

AXAP5#

BLACK,TRIM2#

 1
Common parts
90119-C0048
90119-C0235
