AXAP54L-GNXABC (2021)
Toyota Wildlander
Production
May 2021
-
Sep 9999
Engine
A25DFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2105- )

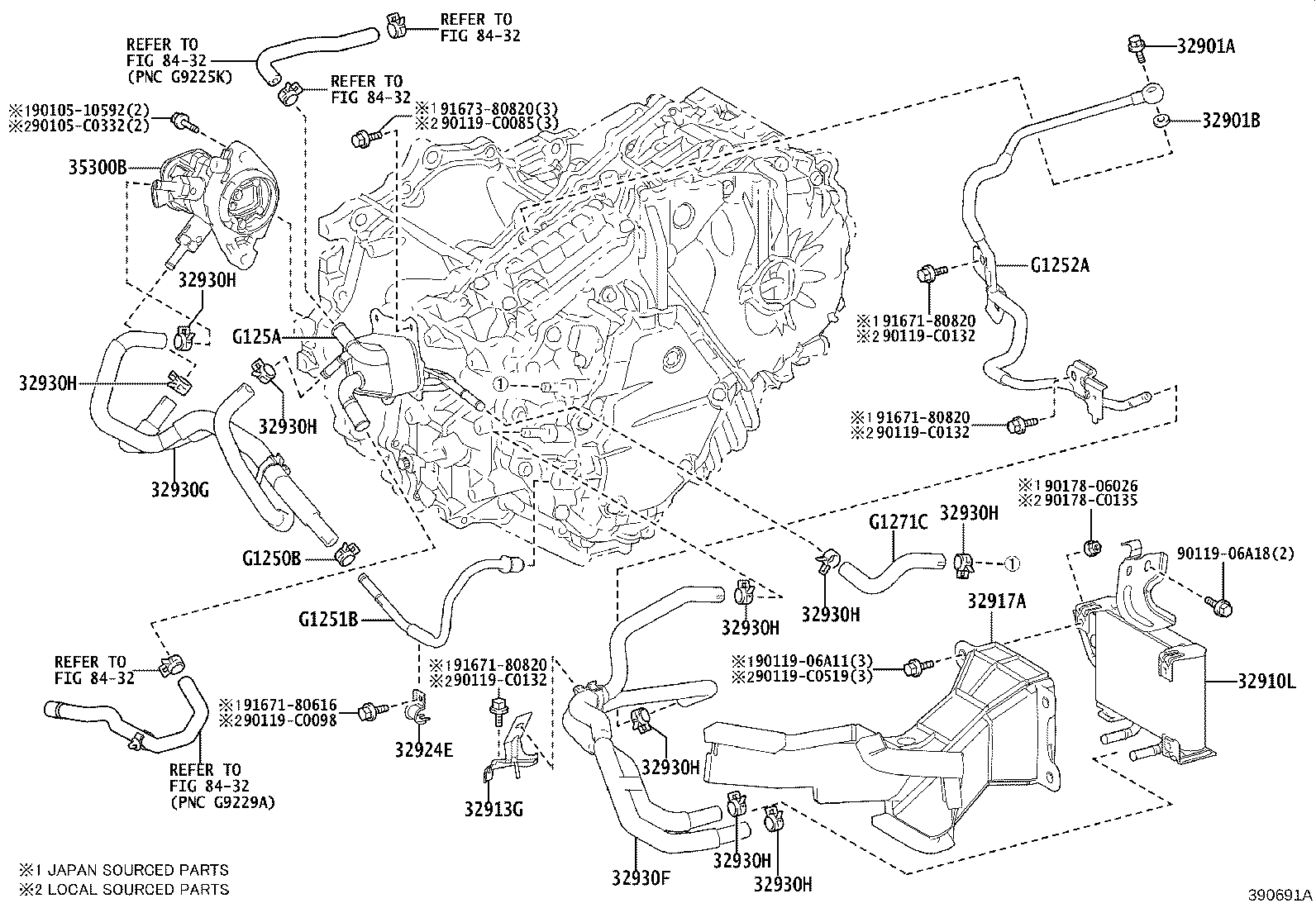

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-12039 |
AXAP5# |
1 | ||
| 32901B - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-12037 |
AXAP5# |
1 | ||
| 32910L - COOLER ASSY, OIL | ||||
| 32910-0R010 |
AXAP5# |
1 | ||
| 32913G - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-0R030 |
AXAP5# |
1 | ||
| 32917A - DUCT, TRANSMISSION OIL COOLER AIR | ||||
| 32917-0R020 |
AXAP5# |
1 | ||
| 32924E - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-48010 |
AXAP5# |
1 | ||
| 32930F - HOSE ASSY, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32930-0R040 |
AXAP5# |
1 | ||
| 32930G - HOSE ASSY, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32930-0R050 |
AXAP5# |
1 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 32930H - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-C0024 |
AXAP5# (L) |
2 | ||
| 90466-16004 |
AXAP5# (J) |
2 | ||
| 35300B - PUMP ASSY, OIL W/MOTOR | ||||
| 35300-48070 |
AXAP5# |
1 | ||
| G1250B - CLIP, NO.1(FOR MOTOR COOLING PIPE) | ||||
| 90466-16004 |
AXAP5# (J) |
1 | ||
| 90466-C0024 |
AXAP5# (L) |
1 | ||
| G1251B - PIPE, MOTOR COOLING, NO.1 | ||||
| G1251-0R020 |
AXAP5# |
1 | ||
| G1252A - PIPE, MOTOR COOLING, NO.2 | ||||
| G1252-0R040 |
AXAP5# |
1 | ||
| G125A - COOLER, MOTOR COOLING | ||||
| G125A-0R020 |
AXAP5# |
1 | ||
| G1271C - HOSE, MOTOR COOLING, NO.1 | ||||
| G1271-0R030 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90105-C0332 | ||||
| 90119-06A11 | ||||
| 90119-06A18 | ||||
| 90119-C0085 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 90119-C0519 | ||||
| 90178-06026 | ||||
| 90178-C0135 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8432 | ||||
