AXAP54L-GNXABC (2021)
Toyota Wildlander

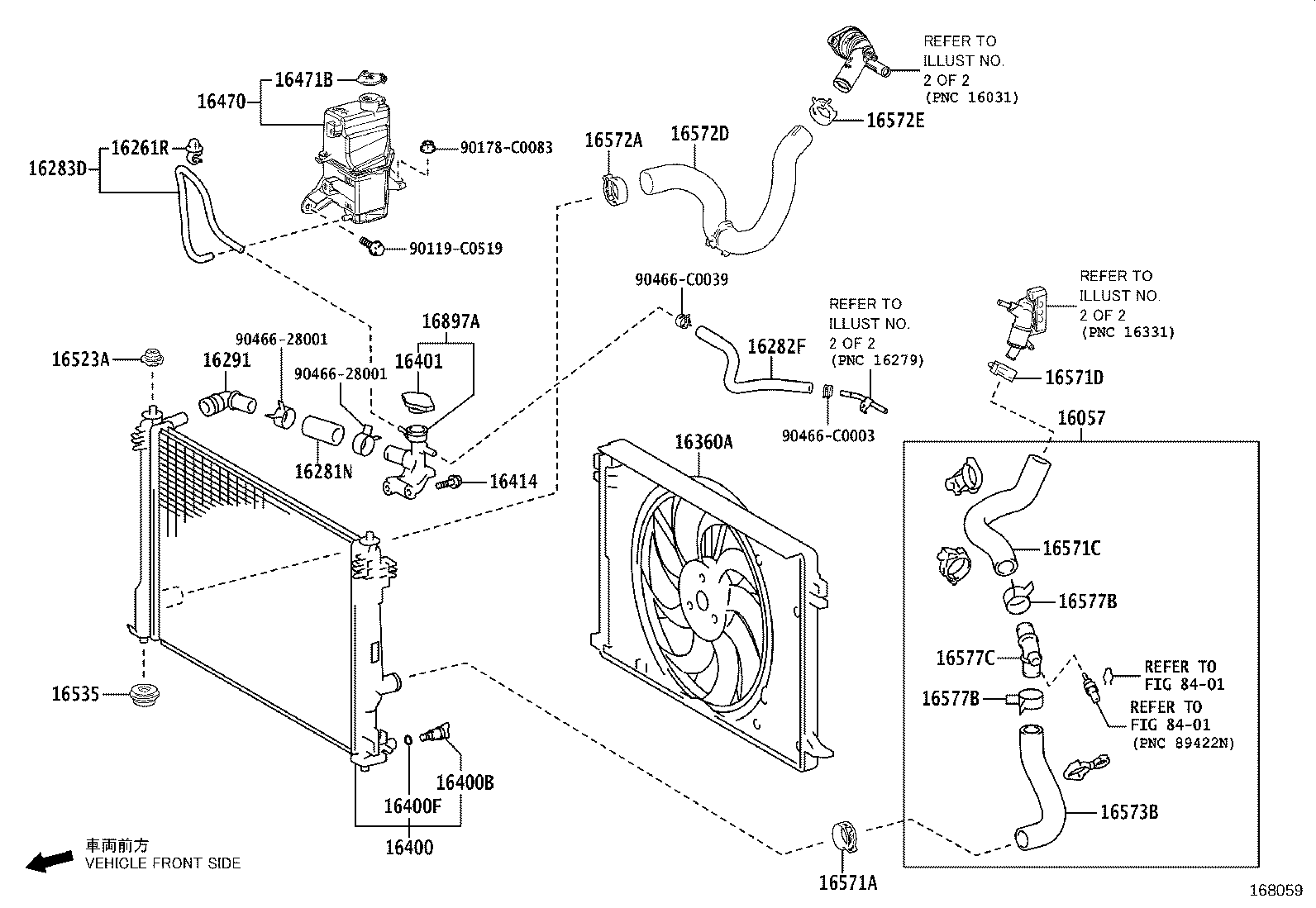

ILLUST NO. 1 OF 2(2105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-F0110 |
A25DFXS..AXAP5# |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90469-12014 |
A25DFXS..AXAP5# |
1 | ||
| 16281N - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F0040 |
A25DFXS..AXAP5# |
1 | ||
| 16282F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F0060 |
A25DFXS..AXAP5# |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F0010 |
A25DFXS..AXAP5# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-F0020 |
A25DFXS..AXAP5# |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-F0160 |
A25DFXS..AXAP5# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0V300 |
A25DFXS..AXAP5# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
A25DFXS..AXAP5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
A25DFXS..AXAP5# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36030 |
A25DFXS..AXAP5# (J) |
1 | ||
| 16401-F0010 |
A25DFXS..AXAP5# (L) |
1 | ||
| 16414 - BOLT, RADIATOR TANK PIPE | ||||
| 90119-C0519 |
A25DFXS..AXAP5# |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-F0050 |
A25DFXS..AXAP5# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16405-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-F0010 |
A25DFXS..AXAP5# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0H040 |
A25DFXS..AXAP5# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
A25DFXS..AXAP5# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-F0280 |
A25DFXS..AXAP5# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0053 |
A25DFXS..AXAP5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
A25DFXS..AXAP5# |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-F0140 |
A25DFXS..AXAP5# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0053 |
A25DFXS..AXAP5# |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-F0060 |
A25DFXS..AXAP5# |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-C0053 |
A25DFXS..AXAP5# |
2 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-C0053 |
A25DFXS..AXAP5# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-F0100 |
A25DFXS..AXAP5# |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-F0130 |
A25DFXS..AXAP5# |
1 | ||
| Common parts | ||||
| 90119-C0519 | ||||
| 90178-C0083 | ||||
| 90466-28001 | ||||
| 90466-C0003 | ||||
| 90466-C0039 | ||||
| Linked diagrams | ||||
| 8401 | ||||

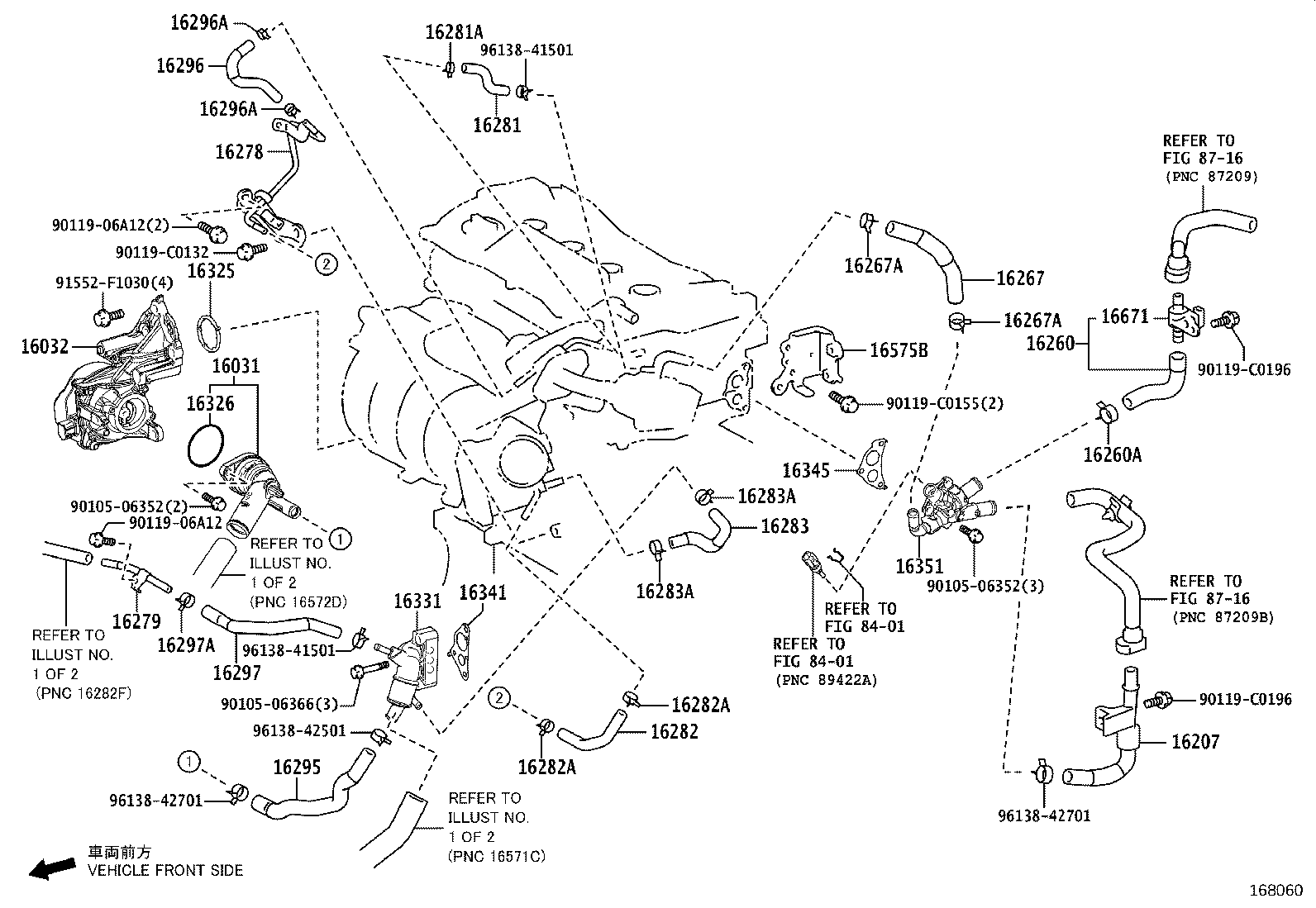

ILLUST NO. 2 OF 2(2105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-25011 |
A25DFXS..AXAP5# |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-25010 |
A25DFXS..AXAP5# TYPE A:REFER ILLUST. |
1 | ||
| 16032-F0020 |
A25DFXS..AXAP5# TYPE B:REFER ILLUST. |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-F0060 |
A25DFXS..AXAP5# |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-F0050 |
A25DFXS..AXAP5# |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42701 |
A25DFXS..AXAP5# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-F0020 |
A25DFXS..AXAP5# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25DFXS..AXAP5# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25DFXS..AXAP5# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-F0050 |
A25DFXS..AXAP5# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-25021 |
A25DFXS..AXAP5# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F0240 |
A25DFXS..AXAP5# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F0140 |
A25DFXS..AXAP5# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-F0010 |
A25DFXS..AXAP5# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-25020 |
A25DFXS..AXAP5# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25DFXS..AXAP5# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-F0010 |
A25DFXS..AXAP5# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-C0003 |
A25DFXS..AXAP5# (L) |
1 | ||
| 90467-15022 |
A25DFXS..AXAP5# (J) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-F2040 |
A25DFXS..AXAP5# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
A25DFXS..AXAP5# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-F0030 |
A25DFXS..AXAP5# |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-F0120 |
A25DFXS..AXAP5# |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-25010 |
A25DFXS..AXAP5# |
1 | ||
| Common parts | ||||
| 90105-06352 | ||||
| 90105-06366 | ||||
| 90119-06A12 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90119-C0196 | ||||
| 91552-F1030 | ||||
| 96138-41501 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
