AXAP52L-GNXMBC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

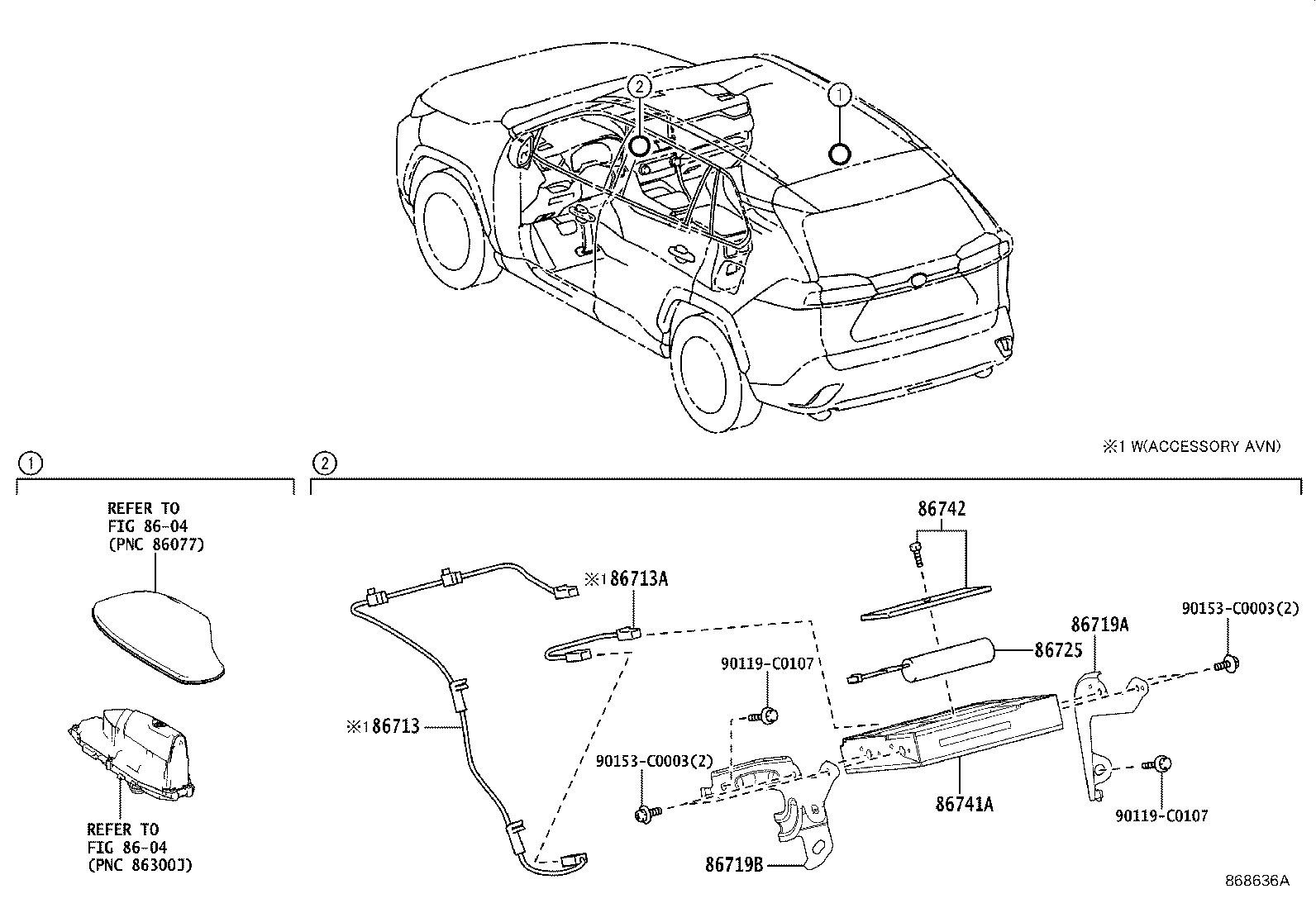

Click highlighted areas on diagram

diagram 8604 8604 86713 86713A 86719A 86719B 86725 86741A 86742 90119C0107 90119C0107 90153C0003 90153C0003
Part # Description Qty Price
86713 - WIRE, TELEPHONE COMPUTER
86713-YY070

AXAP5#..M

AUDIO-AVN(AVN GRILL COLOR:SILVER)

 1
86713A - WIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)
86713-YY080

AXAP5#..M

AUDIO-AVN(AVN GRILL COLOR:SILVER)

 1
86719A - BRACKET, TELEPHONE NO.1
86719-0R040

AXAP5#

 1
86719B - BRACKET, TELEPHONE NO.2
86719-0R030

AXAP5#

 1
86725 - BATTERY, MOBILEPHONE
86725-F4010

AXAP5#

 1
86741A - TRANSCEIVER, TELEMATICS
86741-F4040

AXAP5#

 1
86742 - COVER, TRANSCEIVER
86742-F4010

AXAP5#

 1
Common parts
90119-C0107
90153-C0003
Linked diagrams
8604
