AXAP52L-GNXMBC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

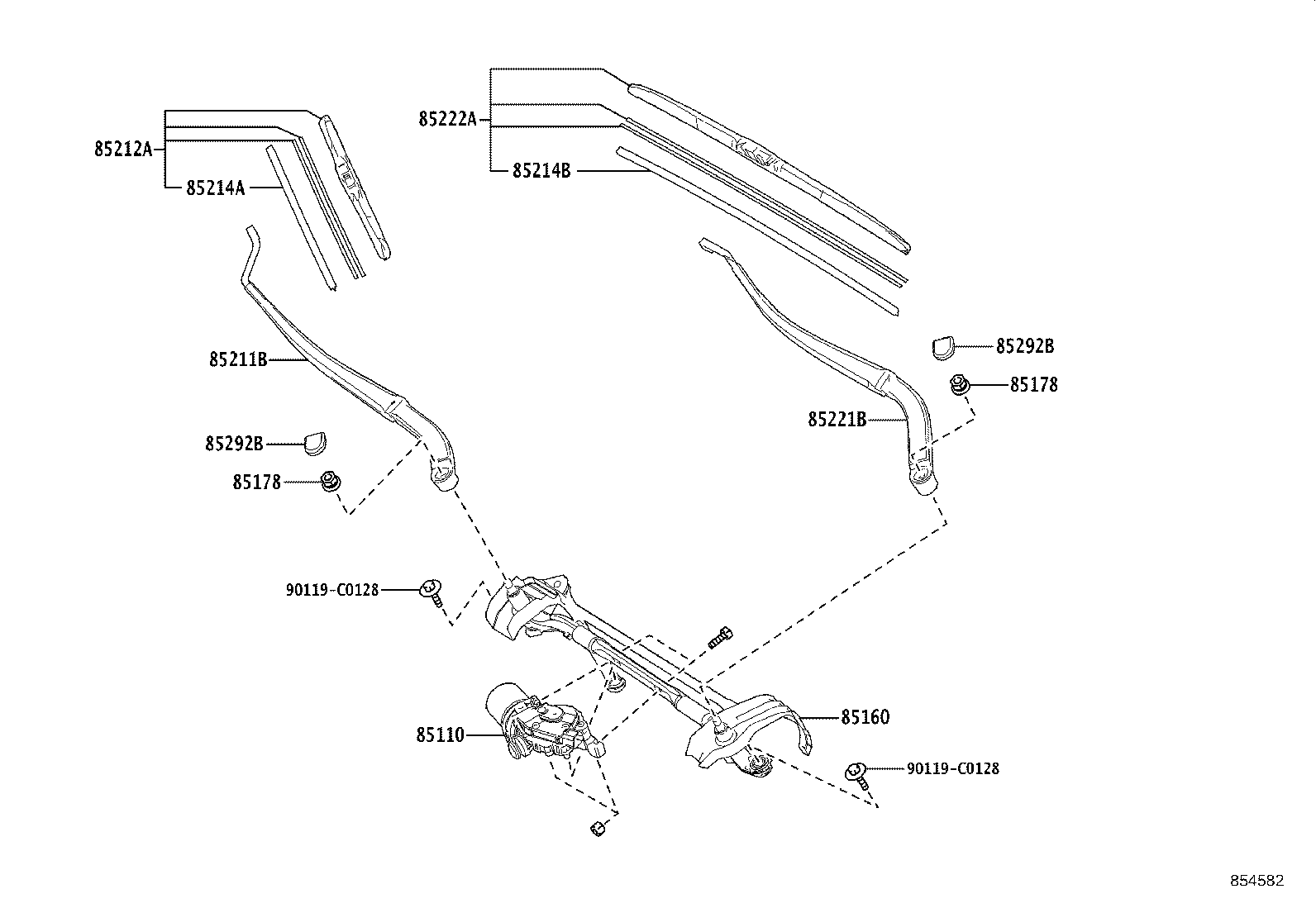

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119C0128 90119C0128
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0R080

AXAP5#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0R090

AXAP5#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-C0012

AXAP5#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-C0012

AXAP5#

 2
85211B - ARM, FRONT WIPER, RH
85211-0R080

AXAP5#

 1
85212A - BLADE, FR WIPER, RH
85212-0R100

AXAP5#

 1
85214A - RUBBER, WIPER, RH
85214-28090

AXAP5#

 1
85214B - RUBBER, WIPER, LH
85214-02340

AXAP5#

 1
85221B - ARM, FRONT WIPER, LH
85221-0R080

AXAP5#

 1
85222A - BLADE, FR WIPER, LH
85222-0R090

AXAP5#

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D110

AXAP5#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D110

AXAP5#

 2
Common parts
90119-C0128
