AXAP52L-GNXMBC (2021)

Toyota Wildlander

Production May 2021 - Sep 9999
Engine A25DFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

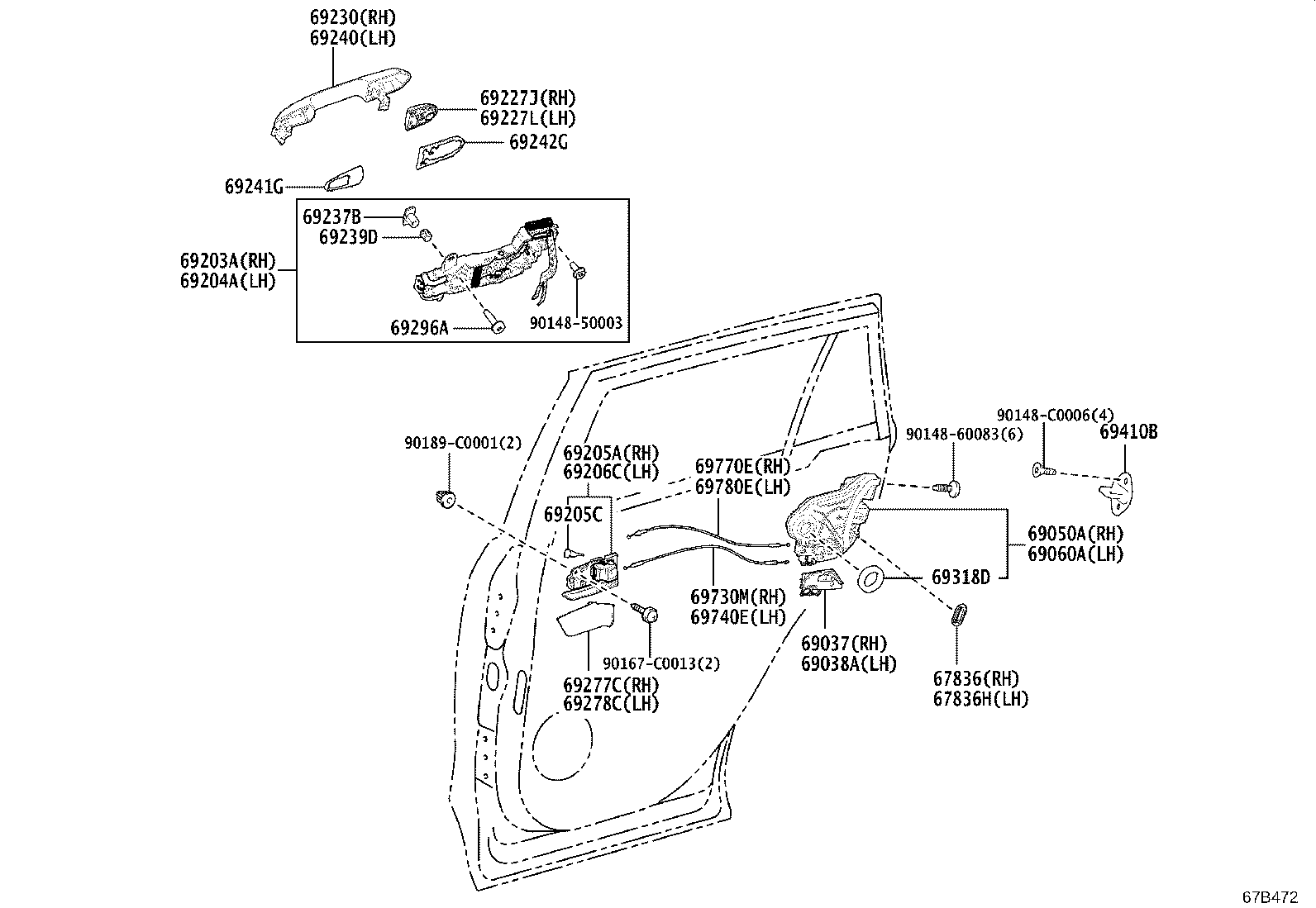

Click highlighted areas on diagram

diagram 67836 67836H 69037 69038A 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 69277C 69278C 69296A 69318D 69410B 69730M 69740E 69770E 69780E 9014850003 9014860083 90148C0006 90167C0013 90189C0001
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-06020

AXAP5#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-06020

AXAP5#

 1
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-02070

AXAP5#

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-02070

AXAP5#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02470

AXAP5#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02470

AXAP5#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0R090

AXAP5#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0R090

AXAP5#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-06170C0

AXAP5#

BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AXAP5#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-06170C0

AXAP5#

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-0R100

AXAP5#

BLACK

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-0R100

AXAP5#

BLACK

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-0R130C1

AXAP5#

BLACKISH AGEHA GF.,221

 1
69211-0R130E0

AXAP52

STEEL BLONDE ME.,4X1

 1
69211-0R130A1

AXAP52

PLATINUM WHITE PEARL MC.,089

 1
69211-0R130E1

AXAP5#

BLACKISH BROWN MC.,4X9

 1
69211-0R130D1

AXAP52

EMOTIONAL RED 2,3U5

 1
69211-0R130C0

AXAP5#

BLACK MC.,209

 1
69211-0R130J0

AXAP52

DK.BLUE M.M.,8W7

 1
69237B - NUT, REAR DOOR HANDLE
69237-0R040

AXAP5#

 2
69239D - BUSH, REAR DOOR HANDLE
69239-0R040

AXAP5#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-0R130C0

AXAP5#

BLACK MC.,209

 1
69211-0R130A1

AXAP52

PLATINUM WHITE PEARL MC.,089

 1
69211-0R130J0

AXAP52

DK.BLUE M.M.,8W7

 1
69211-0R130E1

AXAP5#

BLACKISH BROWN MC.,4X9

 1
69211-0R130E0

AXAP52

STEEL BLONDE ME.,4X1

 1
69211-0R130D1

AXAP52

EMOTIONAL RED 2,3U5

 1
69211-0R130C1

AXAP5#

BLACKISH AGEHA GF.,221

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0R050

AXAP5#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-0R050

AXAP5#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-0R040C0

AXAP5#

BLACK,TRIM2#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-0R040C0

AXAP5#

BLACK,TRIM2#

 1
69296A - SCREW, DOOR INSIDE HANDLE
69296-0R040

AXAP5#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AXAP5#

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020

AXAP5#

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-0R080

AXAP5#

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-0R080

AXAP5#

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-0R080

AXAP5#

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-0R080

AXAP5#

 1
Common parts
90148-50003
90148-60083
90148-C0006
90167-C0013
90189-C0001
