AXAP52L-GNXMBC (2021)
Toyota Wildlander
Production
May 2021
-
Sep 9999
Engine
A25DFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

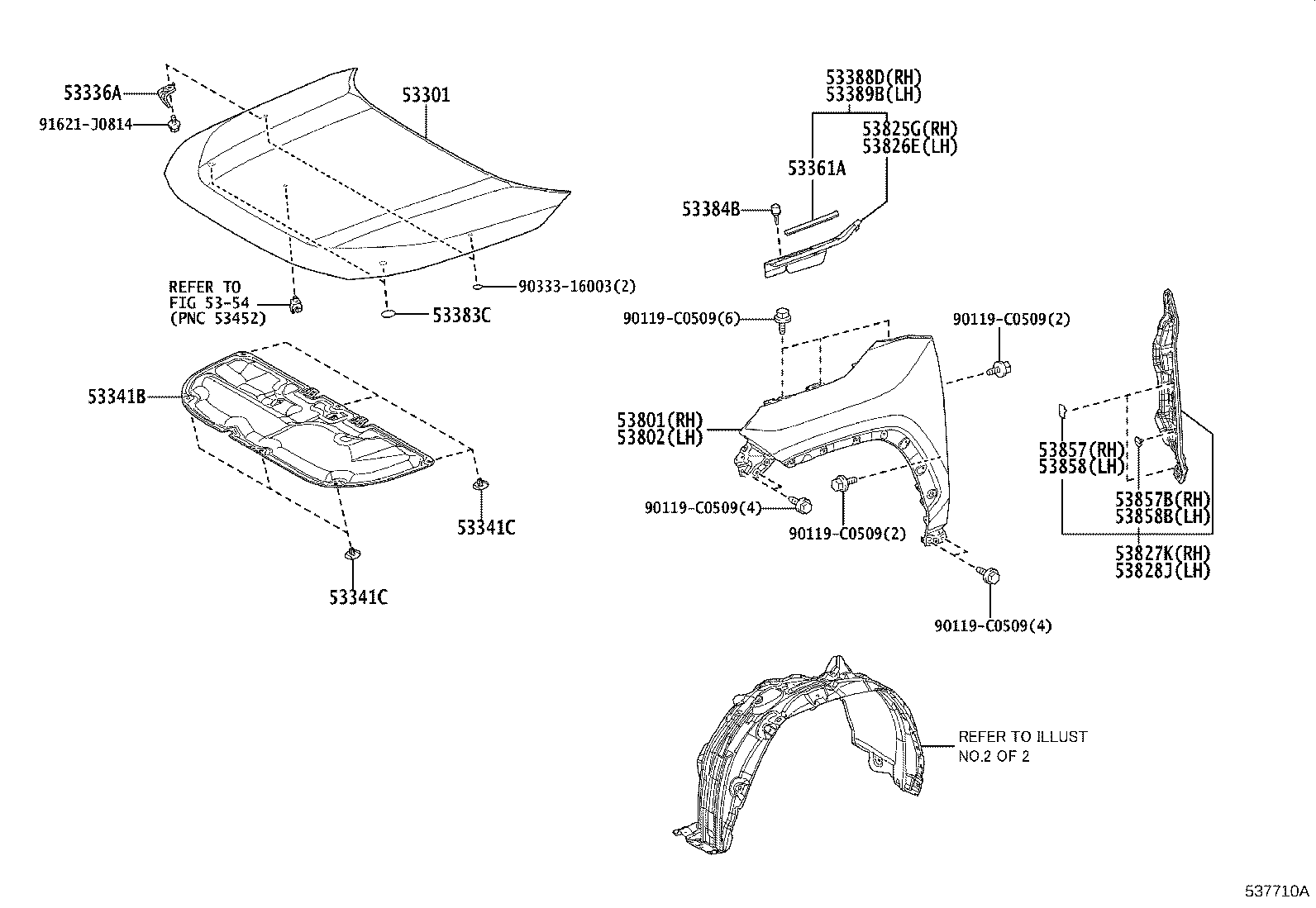

ILLUST NO. 1 OF 2(2105- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0R100 |
AXAP5# |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-0R030 |
AXAP5# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0R080 |
AXAP5# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-C0006 |
AXAP5# |
6 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-C0006 |
AXAP5# |
6 | ||
| 53361A - WEATHERSTRIP, HOOD | ||||
| 53361-0R060 |
AXAP5# |
2 | ||
| 53383C - SEAL, HOOD TO COWL TOP | ||||
| 90950-06096 |
AXAP5# |
2 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
AXAP5# |
2 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-0R070 |
AXAP5# |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-0R070 |
AXAP5# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-0R150 |
AXAP5# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-0R130 |
AXAP5# |
1 | ||
| 53825G - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-0R050 |
AXAP5# |
1 | ||
| 53826E - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-0R050 |
AXAP5# |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0R070 |
AXAP5# |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0R070 |
AXAP5# |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
AXAP5# |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-06020 |
AXAP5# |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
AXAP5# |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-06020 |
AXAP5# |
1 | ||
| Common parts | ||||
| 90119-C0509 | ||||
| 90333-16003 | ||||
| 91621-J0814 | ||||
| Linked diagrams | ||||
| 5354 | ||||

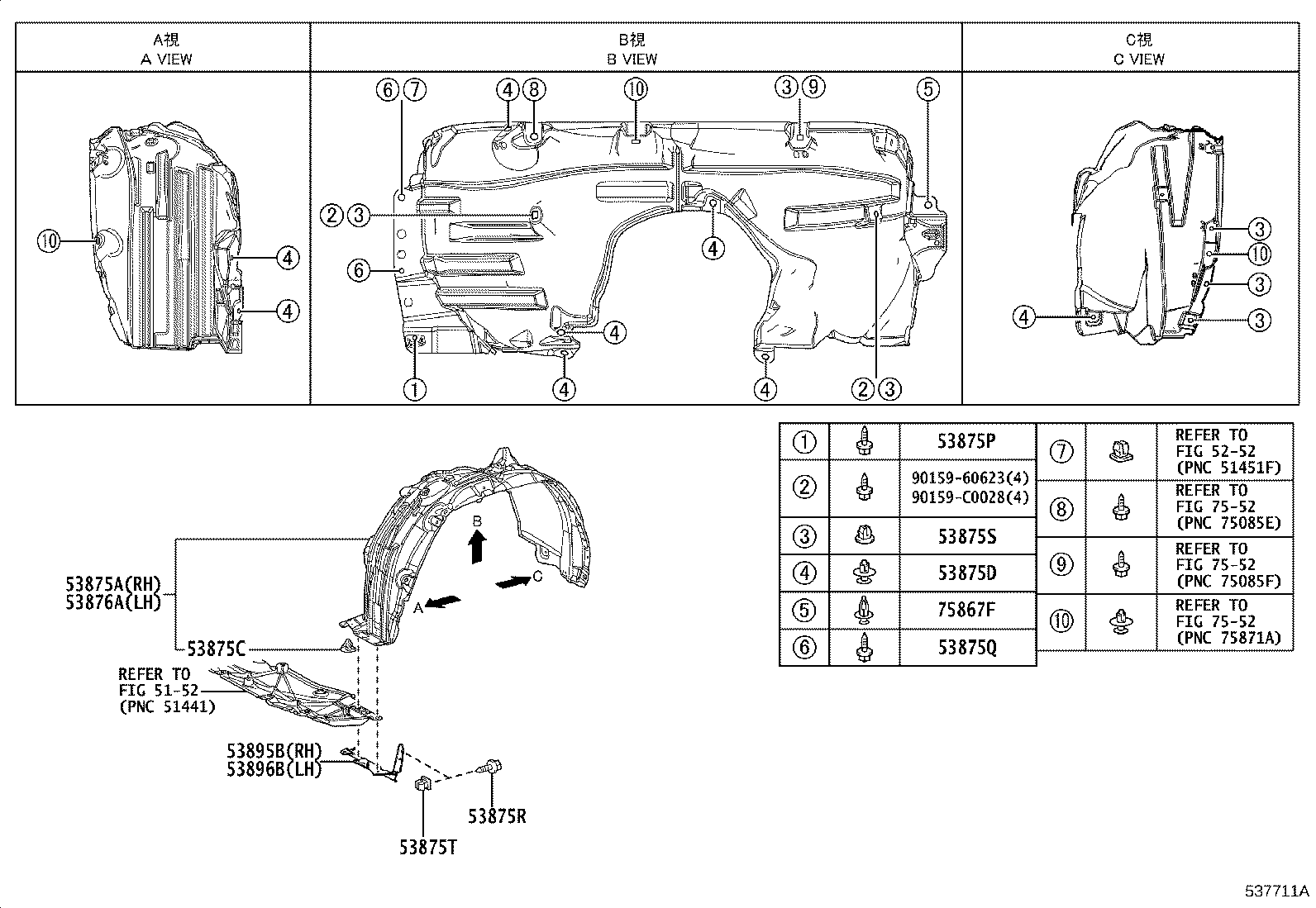

ILLUST NO. 2 OF 2(2105- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0R130 |
AXAP5# |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-06192 |
AXAP5# |
4 | ||
| 53875D - CLIP, FRONT FENDER LINER, NO.2 | ||||
| 90467-C0043 |
AXAP5# |
16 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-C0049 |
AXAP5# |
2 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-C0049 |
AXAP5# |
4 | ||
| 53875R - SCREW, NO.3 | ||||
| 90159-C0049 |
AXAP5# |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-C0008 |
AXAP5# |
12 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-C0024 |
AXAP5# |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0R130 |
AXAP5# |
1 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-0R130 |
AXAP5# |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-0R130 |
AXAP5# |
1 | ||
| 75867F - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-0E020 |
AXAP5# |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90159-C0028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5252 | ||||
| 7552 | ||||
