AXAH54L-GNXMBC (2020)

Toyota Wildlander

Production Apr 2020 - Sep 9999
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )

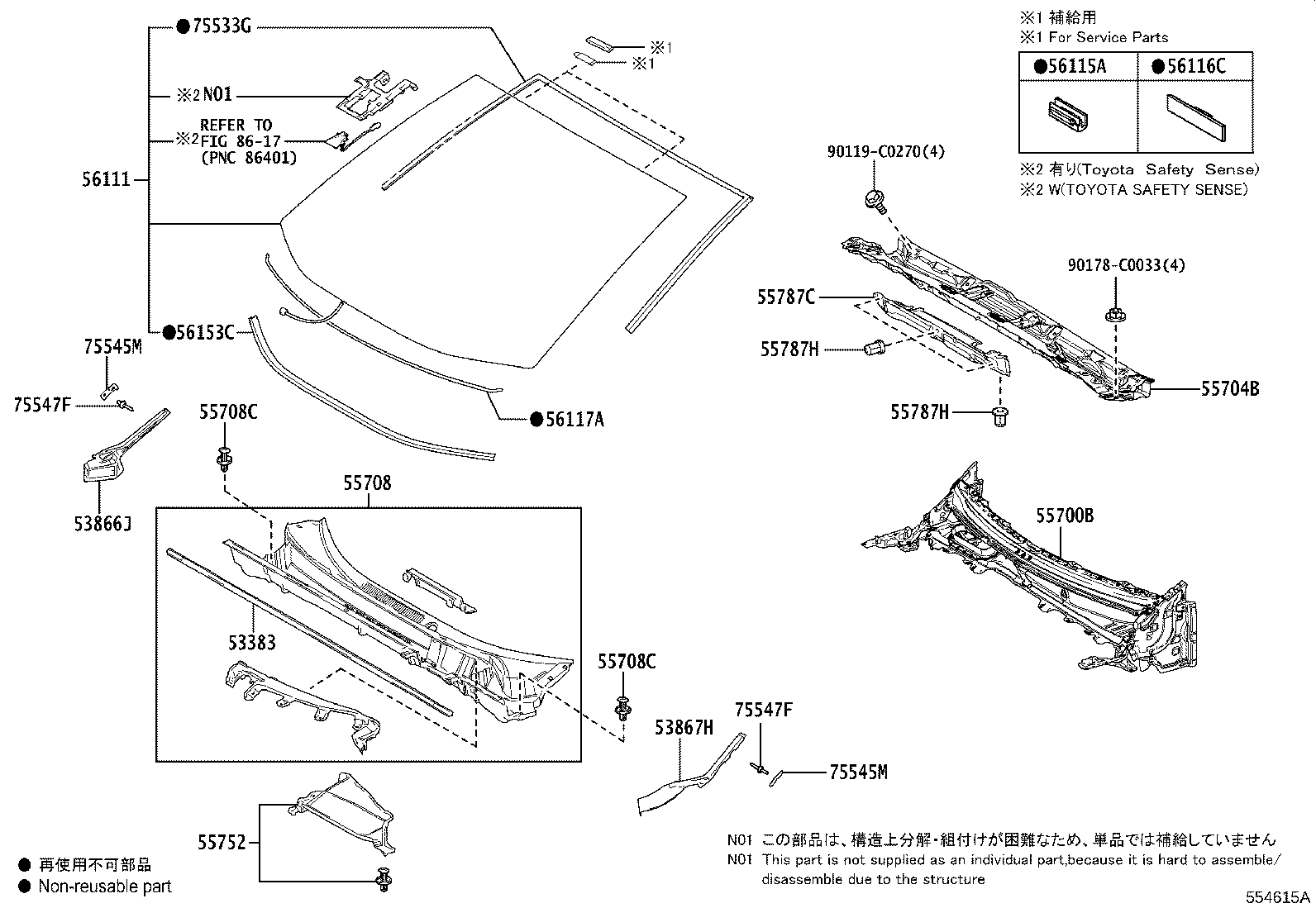

Click highlighted areas on diagram

diagram 53383 53866J 53867H 55700B 55704B 55708 55708C 55708C 55752 55787C 55787H 55787H 56111 56115A 56116C 56117A 56153C 75533G 75545M 75545M 75547F 75547F 8617 90119C0270 90178C0033
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-0R070

AXAH5#,MXAA5#

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0R080

AXAH5#,MXAA5#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0R080

AXAH5#,MXAA5#

 1
55700B - COWL ASSY
55700-0R070

AXAH5#,MXAA5#

 1
55704B - PANEL SUB-ASSY, COWL VENTILATOR
55704-0R050

AXAH5#,MXAA5#

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0R080

AXAH5#,MXAA5#

 1
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXAH5#,MXAA5#

(J)

 2
90467-09242

AXAH5#,MXAA5#

 2
90467-C0037

AXAH5#,MXAA5#

(L)

 2
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXAH5#,MXAA5#

(J)

 2
90467-09242

AXAH5#,MXAA5#

 2
90467-C0037

AXAH5#,MXAA5#

(L)

 2
55752 - SHIELD, COWL VENTILATOR SPLASH
55752-0R070

AXAH5#,MXAA5#

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-0R080

AXAH5#,MXAA5#

 1
55787H - CLIP, COWL TOP PANEL INSULATOR
90467-06188

AXAH5#,MXAA5#

(J)

 4
90467-C0003

AXAH5#,MXAA5#

(L)

 4
90467-06188

AXAH5#,MXAA5#

 4
55787H - CLIP, COWL TOP PANEL INSULATOR
90467-06188

AXAH5#,MXAA5#

(J)

 4
90467-C0003

AXAH5#,MXAA5#

(L)

 4
90467-06188

AXAH5#,MXAA5#

 4
56111 - GLASS, WINDSHIELD
56101-0R511

AXAH5#..G,M

 1
56101-0R500

AXAH5#..G,M

ACTIVE SAFETY PACKAGE-WITHOUT

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

AXAH5#,MXAA5#

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AXAH5#,MXAA5#

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0R100

MXAA54..M;AXAH5#,MXAA52..G,M

L=2917,ACTIVE SAFETY PACKAGE-WITHOUT

 1
56117-0R100

AXAH5#,MXAA5#

L=2917

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-0R040

AXAH5#,MXAA5#

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-0R060

AXAH5#,MXAA5#

 1
75545M - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-42010

AXAH5#,MXAA5#

 2
75545M - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-42010

AXAH5#,MXAA5#

 2
75547F - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-51021

AXAH5#,MXAA5#

(J)

 2
75547-51021

AXAH5#,MXAA5#

 2
90269-C0005

AXAH5#,MXAA5#

(L)

 2
75547F - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-51021

AXAH5#,MXAA5#

(J)

 2
75547-51021

AXAH5#,MXAA5#

 2
90269-C0005

AXAH5#,MXAA5#

(L)

 2
Common parts
90119-C0270
90178-C0033
Linked diagrams
8617
