AXAH54L-GNXMBC (2020)

Toyota Wildlander

Production Apr 2020 - Sep 9999
Engine A25BFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )AXAH5#

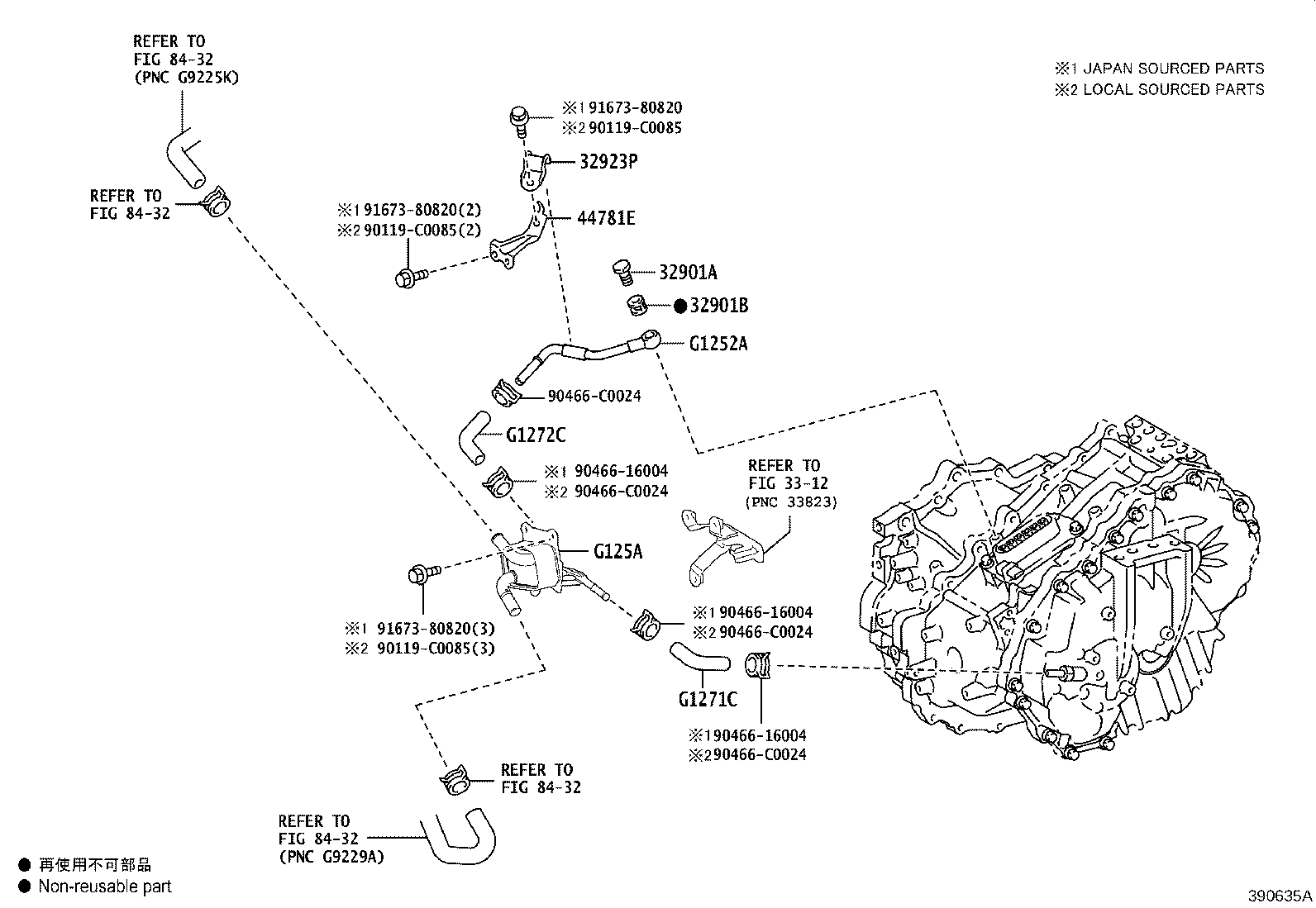

Click highlighted areas on diagram

diagram 32901A 32901B 32923P 3312 44781E 8432 8432 8432 8432 90119C0085 90119C0085 90119C0085 9046616004 9046616004 9046616004 90466C0024 90466C0024 90466C0024 90466C0024 9167380820 9167380820 9167380820 G1252A G125A G1271C G1272C
Part # Description Qty Price
32901A - BOLT, UNION(FOR OIL COOLER)
90401-12039

AXAH5#

 1
32901B - GASKET(FOR OIL COOLER UNION)
90430-12037

AXAH5#

 1
32923P - CLAMP, OIL COOLER TUBE, NO.1
32923-52040

AXAH5#

 1
44781E - BRACKET, HOSE
44781-06030

AXAH5#

 1
G1252A - PIPE, MOTOR COOLING, NO.2
G1252-06030

AXAH5#

 1
G125A - COOLER, MOTOR COOLING
G125A-0R010

AXAH5#

 1
G1271C - HOSE, MOTOR COOLING, NO.1
G1271-06040

AXAH5#

 1
G1272C - HOSE, MOTOR COOLING, NO.2
G1272-06030

AXAH5#

 1
Common parts
90119-C0085
90466-16004
90466-C0024
91673-80820
Linked diagrams
3312
8432
