ZSP92L-BEPPKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
1ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )GLI,GLXI

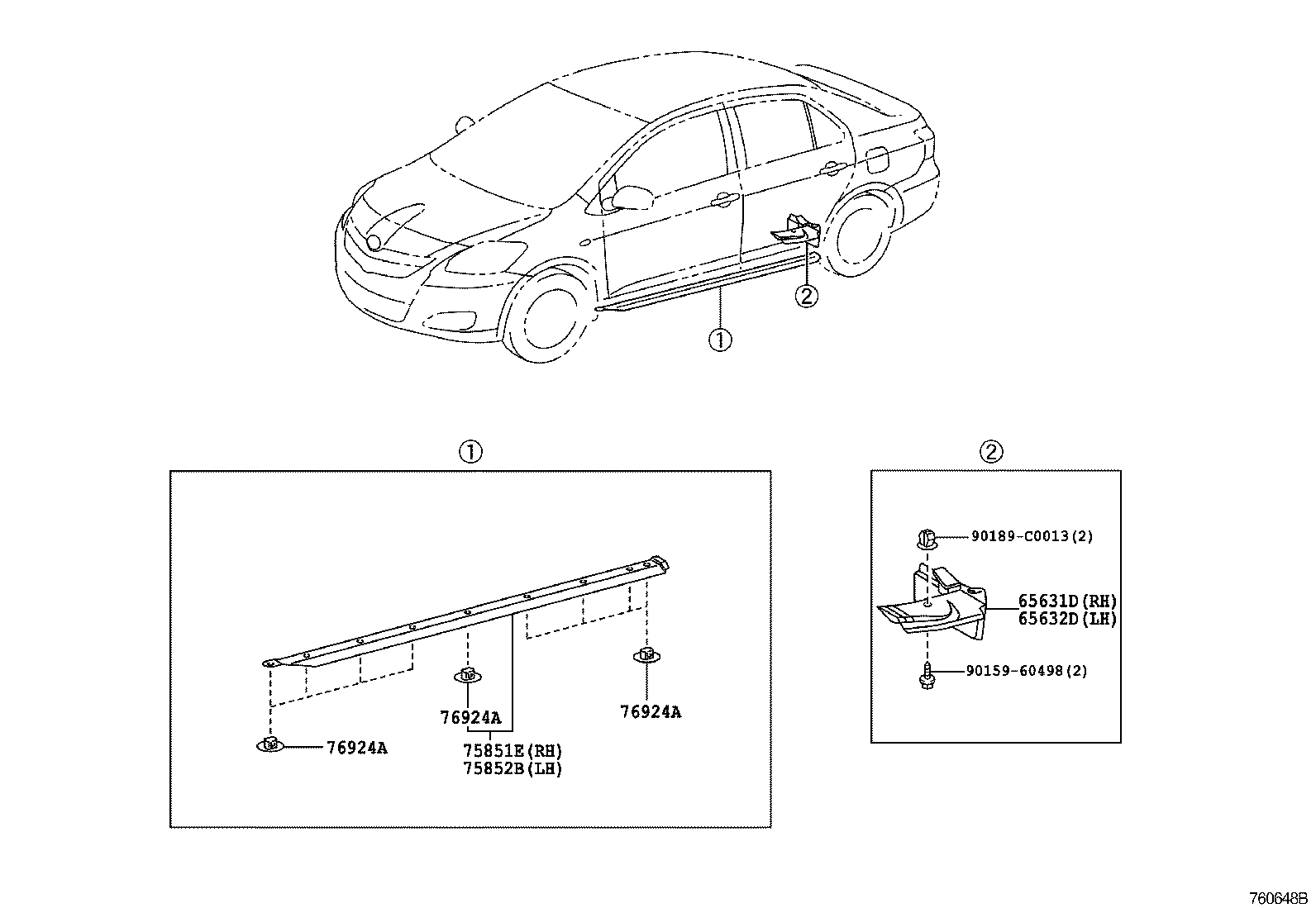

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-0D040 |
NCP92,ZSP92 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-0D040 |
NCP92,ZSP92 |
1 | ||
| 75851E - MOULDING, BODY ROCKER PANEL, RH | ||||
| 75851-52060 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 75851-52061 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 75852B - MOULDING, BODY ROCKER PANEL, LH | ||||
| 75852-52060 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 75852-52061 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52040 |
NCP92,ZSP92..GLI,GLXI |
18 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52040 |
NCP92,ZSP92..GLI,GLXI |
18 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-52040 |
NCP92,ZSP92..GLI,GLXI |
18 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-C0013 | ||||
