ZSP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

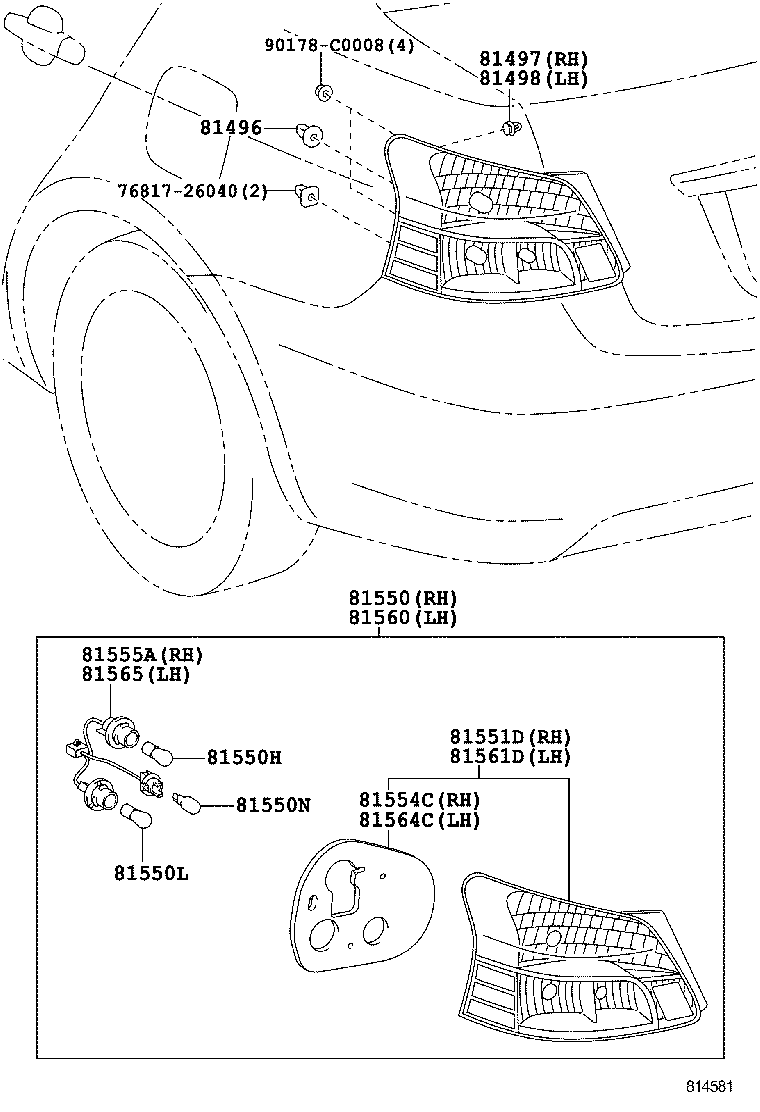

Click highlighted areas on diagram

diagram 7681726040 81496 81497 81498 81550 81550H 81550L 81550N 81551D 81554C 81555A 81560 81561D 81564C 81565 90178C0008
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

NCP92,ZSP92

 2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-52030

NCP92,ZSP92

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-52030

NCP92,ZSP92

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0D230

NCP92,ZSP92

 1
81550H - BULB, TAIL & STOP LAMP
99132-21210

NCP92,ZSP92

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15009

NCP92,ZSP92

 2
81550N - BULB, BACK UP LAMP
90981-11059

NCP92,ZSP92

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0D230

NCP92,ZSP92

 1
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81554-0D230

NCP92,ZSP92

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0D230

NCP92,ZSP92

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0D230

NCP92,ZSP92

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0D230

NCP92,ZSP92

 1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81554-0D230

NCP92,ZSP92

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-0D230

NCP92,ZSP92

 1
Common parts
76817-26040
90178-C0008
