ZSP92L-BEMHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
1ZRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0802-1305)

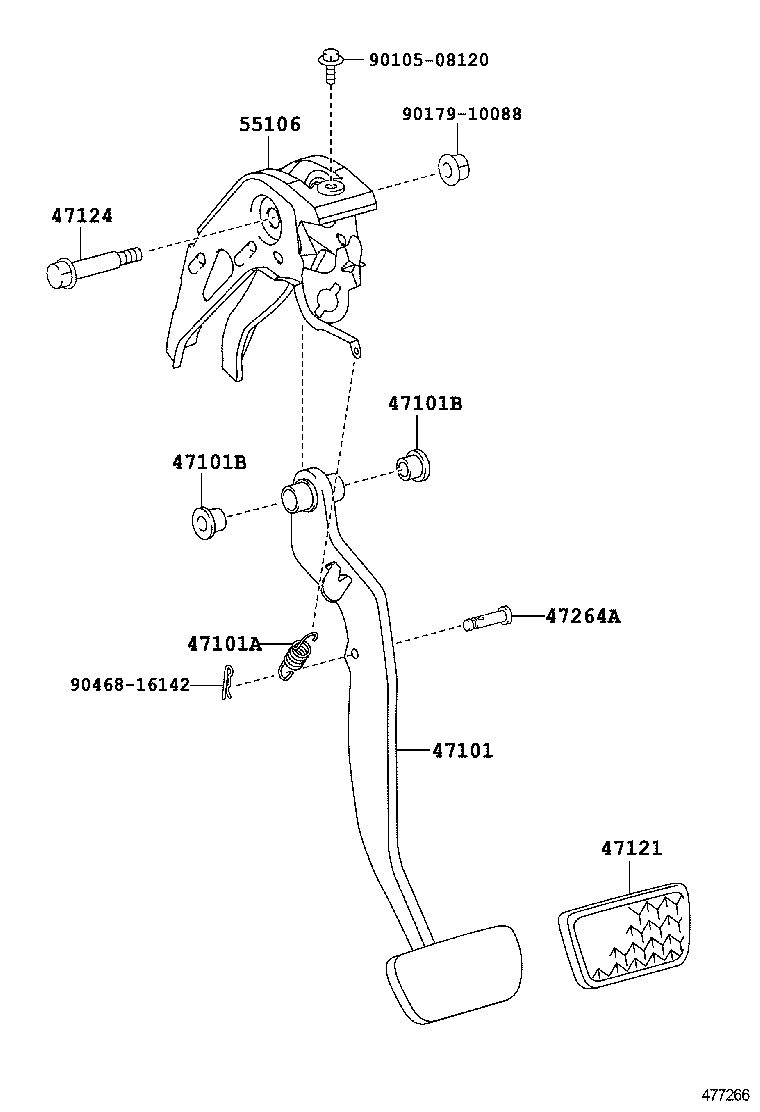

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-0D160 |
NCP92,ZSP92..5F |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14077 |
NCP92,ZSP92 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP92,ZSP92 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
NCP92,ZSP92 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
NCP92,ZSP92..5F |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90109-10167 |
NCP92,ZSP92 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08051 |
NCP92,ZSP92 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-0D120 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
