ZSP92L-BEMHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )5F

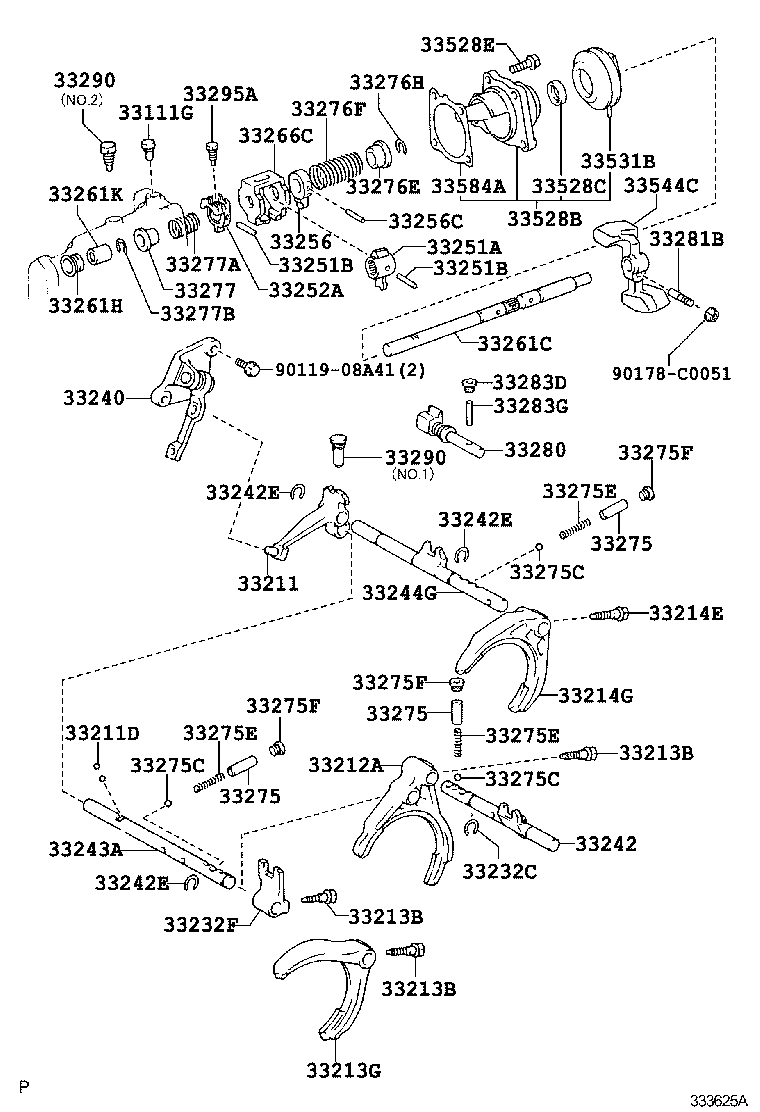

Click highlighted areas on diagram

C50

diagram 33111G 33211 33211D 33212A 33213B 33213B 33213B 33213G 33214E 33214G 33232C 33232F 33240 33242 33242E 33242E 33242E 33243A 33244G 33251A 33251B 33251B 33252A 33256 33256C 33261C 33261H 33261K 33266C 33275 33275 33275 33275C 33275C 33275C 33275E 33275E 33275E 33275F 33275F 33275F 33276E 33276F 33276H 33277 33277A 33277B 33280 33281B 33283D 33283G 33290 33290 33295A 33528B 33528C 33528E 33531B 33544C 33584A 9011908A41 90178C0051
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-C3008

NCP92,ZSP92..5F

 1
33211 - FORK, REVERSE SHIFT
33211-0D040

NCP92,ZSP92..5F

 1
33211D - BALL(FOR REVERSE SHIFT FORK)
90360-C0005

NCP92,ZSP92..5F

OD=6.35

 2
33212A - FORK, GEAR SHIFT, NO.1
33212-10013

NCP92,ZSP92..5F

 1
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NCP92,ZSP92..5F

 3
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NCP92,ZSP92..5F

 3
33213B - BOLT(FOR SHIFT FORK SET)
90109-C0009

NCP92,ZSP92..5F

 3
33213G - FORK, GEAR SHIFT, NO.2
33213-20050

NCP92,ZSP92..5F

 1
33214E - BOLT(FOR GEAR SHIFT FORK LOCK)
90109-C0009

NCP92,ZSP92..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-20050

NCP92,ZSP92..5F

 1
33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
90520-12003

NCP92,ZSP92..5F

 1
33232F - HEAD, GEAR SHIFT, NO.1
33232-0D020

NCP92,ZSP92..5F

 1
33232-0D020

NCP92,ZSP92..5F

 1
33232-20030

NCP92,ZSP92..5F

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-0D030

NCP92,ZSP92..5F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33205-0D010

NCP92,ZSP92..5F

 1
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NCP92,ZSP92..5F

 3
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NCP92,ZSP92..5F

 3
33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
90520-12003

NCP92,ZSP92..5F

 3
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-0D040

NCP92,ZSP92..5F

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-0D030

NCP92,ZSP92..5F

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-0D020

NCP92,ZSP92..5F

 1
33251-52040

NCP92,ZSP92..5F

 1
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-C0001

NCP92,ZSP92..5F

L=25.5

 2
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-C0001

NCP92,ZSP92..5F

L=25.5

 2
33252A - LEVER, SHIFT, INNER NO.2
33252-0D010

NCP92,ZSP92..5F

 1
33252-12040

NCP92,ZSP92..5F

 1
33256 - LEVER, SELECT INNER
33256-0D020

NCP92,ZSP92..5F

 1
33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
90254-C0001

NCP92,ZSP92..5F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-0D051

NCP92,ZSP92..5F

 1
33261-0D050

NCP92,ZSP92..5F

 1
33261H - SEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
90310-C0002

NCP92,ZSP92..5F

 1
33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
90369-C0004

NCP92,ZSP92..5F

 1
33266C - PLATE, SHIFT INTER LOCK
33266-0D020

NCP92,ZSP92..5F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NCP92,ZSP92..5F

OD=10.7

 3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NCP92,ZSP92..5F

OD=10.7

 3
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
33275-12041

NCP92,ZSP92..5F

OD=10.7

 3
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NCP92,ZSP92..5F

 3
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NCP92,ZSP92..5F

 3
33275C - BALL (FOR SHIFT DETENT)
90360-C0007

NCP92,ZSP92..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12187

NCP92,ZSP92..5F

 3
90501-12207

NCP92,ZSP92..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12187

NCP92,ZSP92..5F

 3
90501-12207

NCP92,ZSP92..5F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-12187

NCP92,ZSP92..5F

 3
90501-12207

NCP92,ZSP92..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NCP92,ZSP92..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NCP92,ZSP92..5F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

NCP92,ZSP92..5F

 3
33276E - SEAT, SELECT SPRING, NO.1
33276-0D010

NCP92,ZSP92..5F

 1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-C0013

NCP92,ZSP92..5F

 1
33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
90520-C0003

NCP92,ZSP92..5F

 1
33277 - SEAT, SELECT SPRING, NO.2
33277-0D020

NCP92,ZSP92..5F

 1
33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
90501-C0012

NCP92,ZSP92..5F

 1
33277B - RING, E (FOR SELECT SPRING NO.2 SEAT)
90523-C0001

NCP92,ZSP92..5F

 1
33280 - PIN ASSY, REVERSE RESTRICT
33280-0D010

NCP92,ZSP92..5F

 1
33281B - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33281-16020

NCP92,ZSP92..5F

 1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065

NCP92,ZSP92..5F

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05003

NCP92,ZSP92..5F

 1
33290 - BALL ASSY, LOCK, NO.1
33290-0D010

NCP92,ZSP92..5F

NO.2

 1
33290-12011

NCP92,ZSP92..5F

NO.1

 1
33290 - BALL ASSY, LOCK, NO.1
33290-0D010

NCP92,ZSP92..5F

NO.2

 1
33290-12011

NCP92,ZSP92..5F

NO.1

 1
33295A - SHAFT, REVERSE RESTRICT
33295-52010

NCP92,ZSP92..5F

 1
33295-0D010

NCP92,ZSP92..5F

 1
33528B - COVER, CONTROL SHAFT
33506-0D020

NCP92,ZSP92..5F

 1
33528C - SEAL, OIL (FOR CONTROL SHAFT COVER)
90310-C0001

NCP92,ZSP92..5F

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
91612-61025

NCP92,ZSP92..5F

*10-1.25PX25-25

 2
90119-10288

NCP92,ZSP92..5F

*10-1.25PX25-19.8

 2
33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33531-0D020

NCP92,ZSP92..5F

 1
33544C - DAMPER, SHIFT LEVER
33544-0D040

NCP92,ZSP92..5F

 1
33584A - GASKET, CONTROL SHIFT LEVER RETAINER
33584-0D010

NCP92,ZSP92..5F

 1
Common parts
90119-08A41
90178-C0051
