ZSP92L-BEMHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )5F

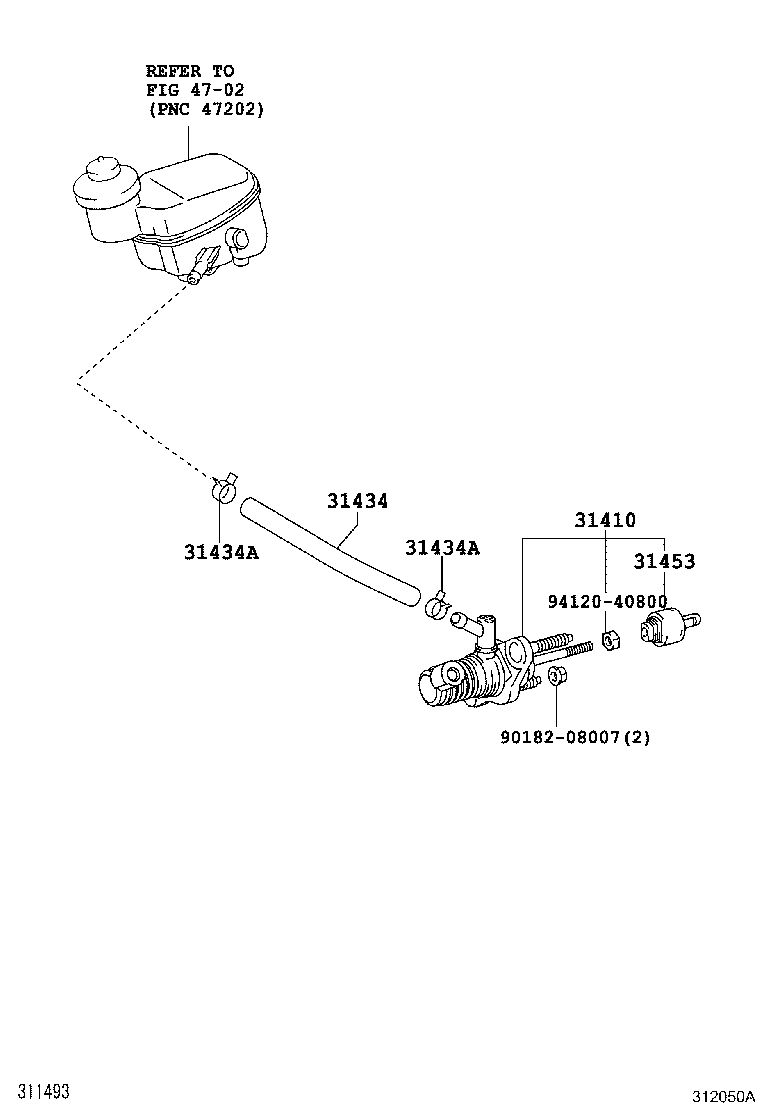

Click highlighted areas on diagram

diagram 31410 31434 31434A 31434A 31453 4702 9018208007 9412040800
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-0D170

NCP92,ZSP92..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-52150

NCP92,ZSP92..5F

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

NCP92,ZSP92..5F

 2
96133-41500

NCP92,ZSP92..5F

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

NCP92,ZSP92..5F

 2
96133-41500

NCP92,ZSP92..5F

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-52010

NCP92,ZSP92..5F

 1
Common parts
90182-08007
94120-40800
Linked diagrams
4702
