NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )NCP92

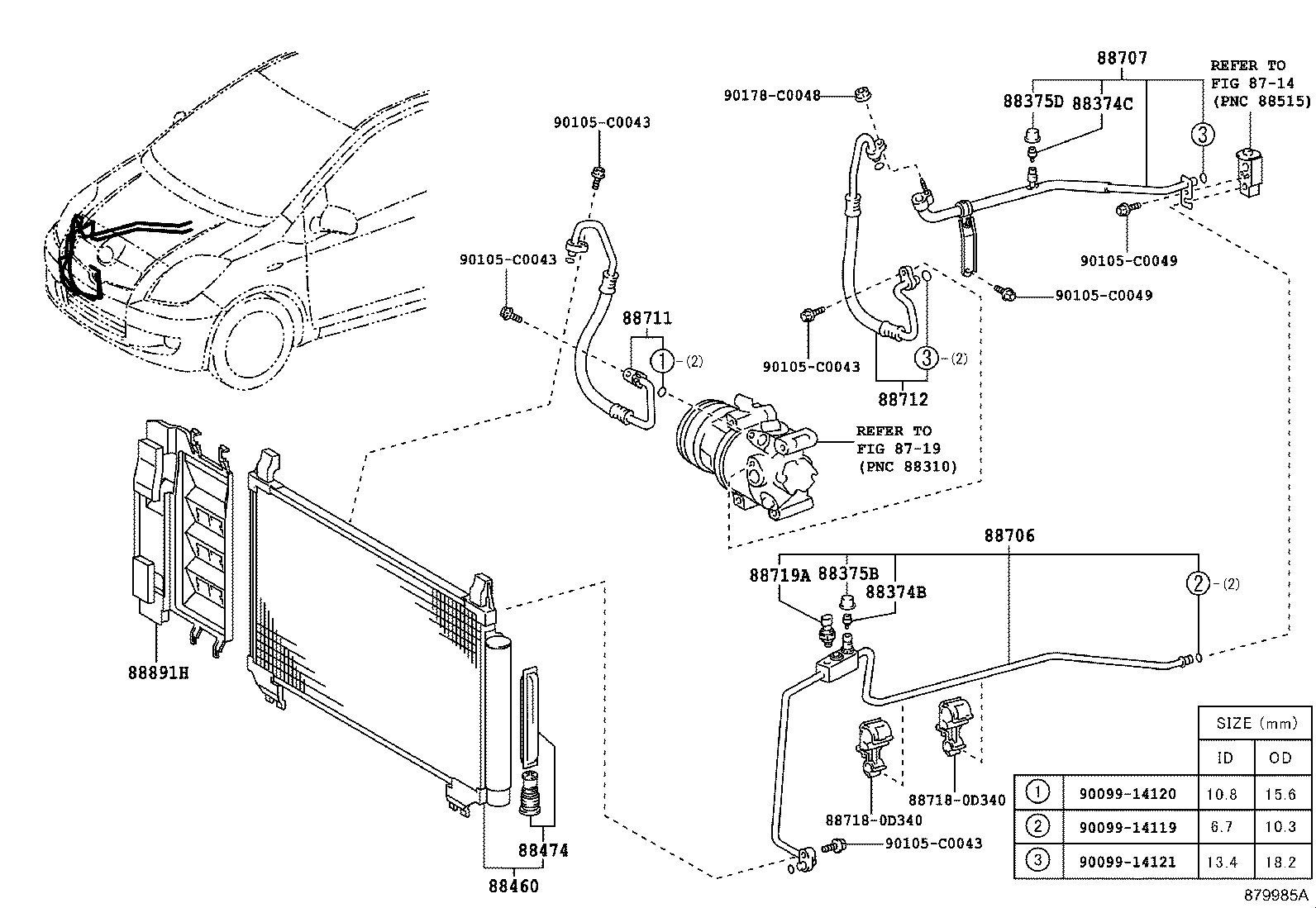

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP92,ZSP92 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP92,ZSP92 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP92,ZSP92 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP92,ZSP92 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0D110 |
NCP92 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
NCP92,ZSP92 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-0D300 |
NCP92 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-0D140 |
NCP92 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0D210 |
NCP92 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0D260 |
NCP92 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NCP92,ZSP92 |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-0D120 |
NCP92 |
1 | ||
| Common parts | ||||
| 88718-0D340 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-C0043 | ||||
| 90105-C0049 | ||||
| 90178-C0048 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
