NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )NCP92

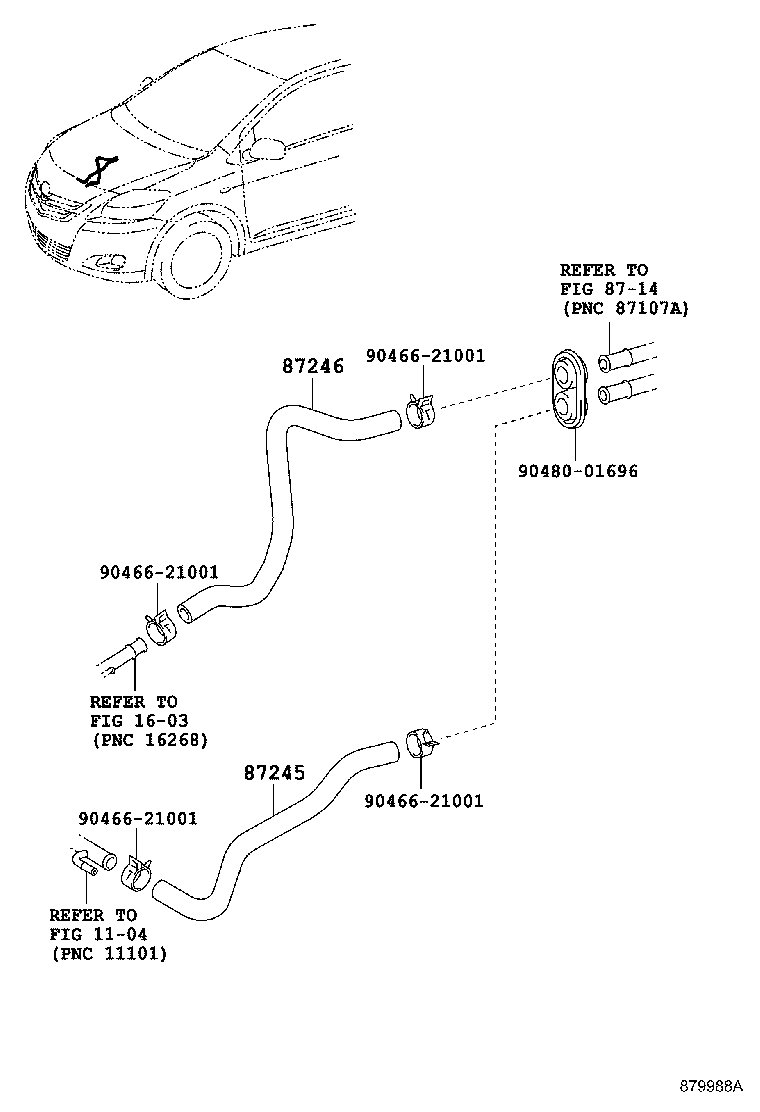

Click highlighted areas on diagram

diagram 1104 1603 8714 87245 87246 9046621001 9046621001 9046621001 9046621001 9048001696
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-0D170

NCP92

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-0D180

NCP92

 1
Common parts
90466-21001
90480-01696
Linked diagrams
1104
1603
8714
