NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0802- )

Click highlighted areas on diagram

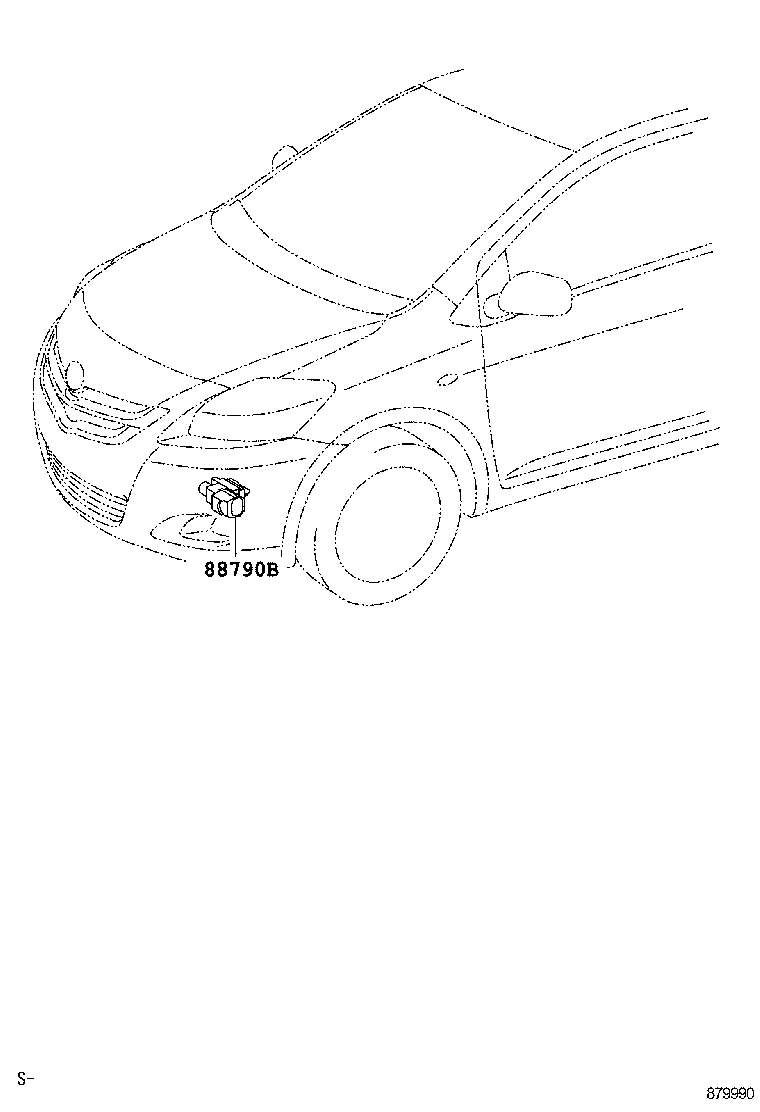

SENSOR

diagram 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NCP92,ZSP92

 1

ILLUST NO. 1 OF 3(0802- )

Click highlighted areas on diagram

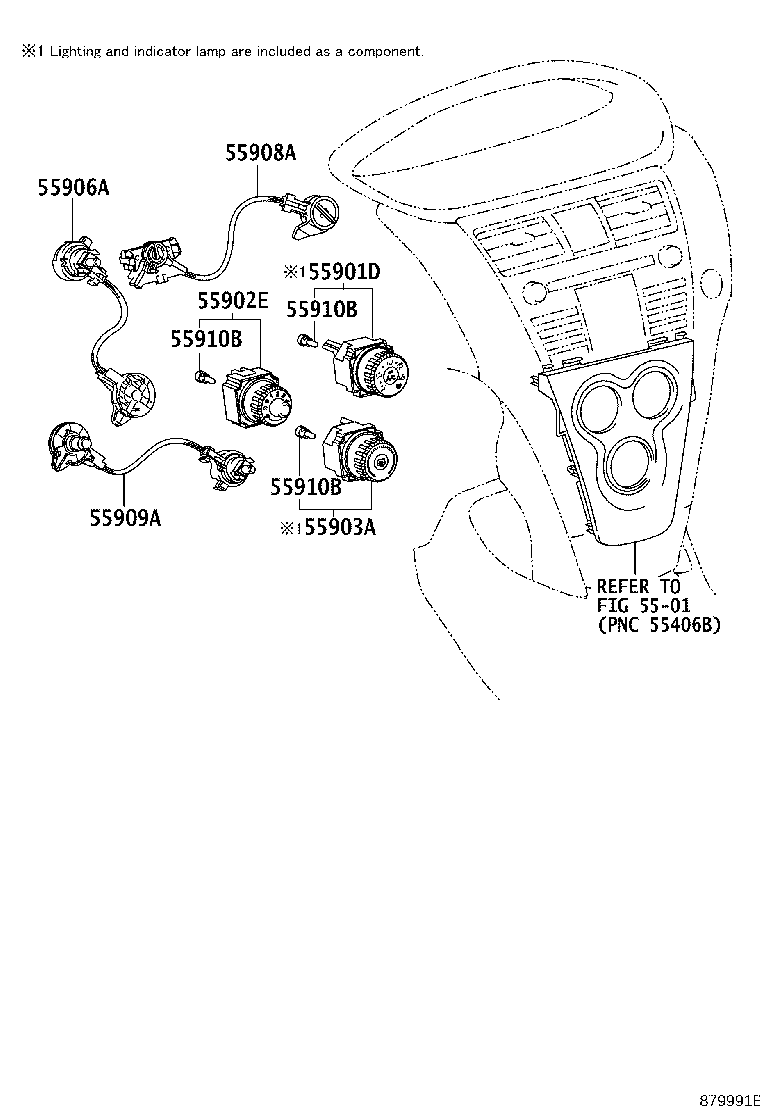

HEATER CONTROL

diagram 5501 55901D 55902E 55903A 55906A 55908A 55909A 55910B 55910B 55910B
Part # Description Qty Price
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-0D090

NCP92,ZSP92..GLI,GLXI

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-0D080

NCP92,ZSP92..GLI,GLXI

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-0D090

NCP92,ZSP92..GLI,GLXI

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

NCP92,ZSP92

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52120

NCP92,ZSP92

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

NCP92,ZSP92

 1
55910B - BULB, HEATER CONTROL
90010-01113

NCP92,ZSP92..GLI,GLXI

 1
55910B - BULB, HEATER CONTROL
90010-01113

NCP92,ZSP92..GLI,GLXI

 1
55910B - BULB, HEATER CONTROL
90010-01113

NCP92,ZSP92..GLI,GLXI

 1
Linked diagrams
5501

ILLUST NO. 2 OF 3(0802- )

Click highlighted areas on diagram

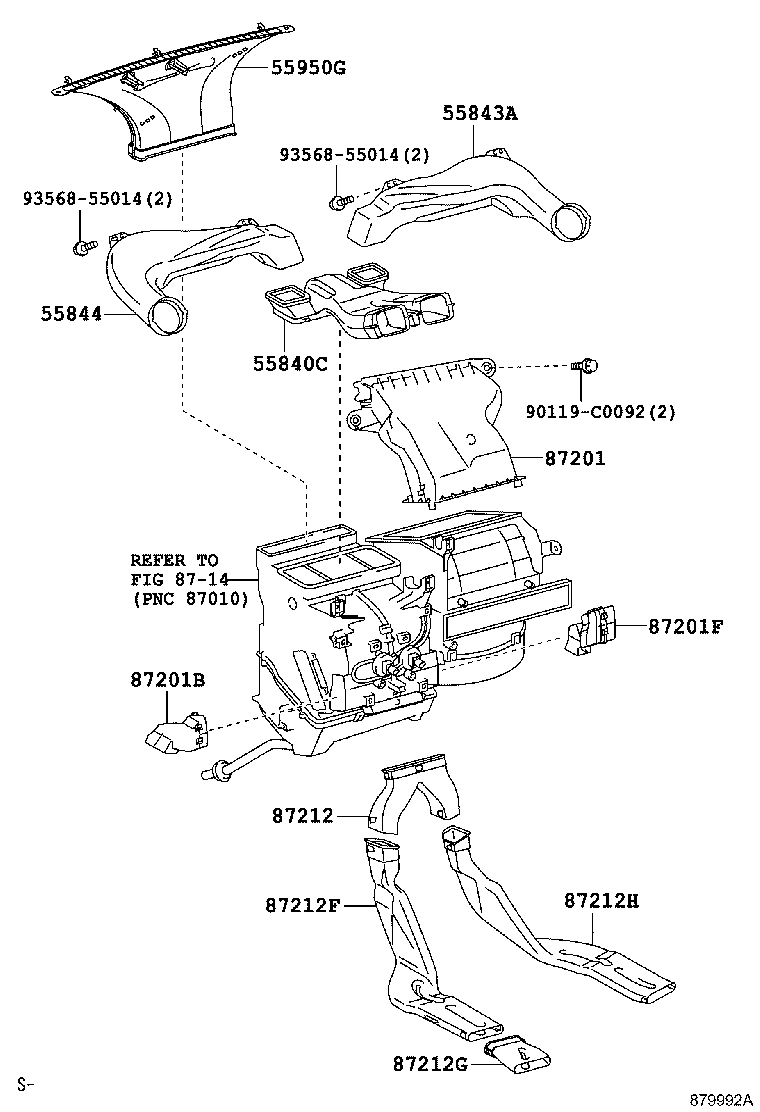

AIR DUCT

diagram 55840C 55843A 55844 55950G 8714 87201 87201B 87201F 87212 87212F 87212G 87212H 90119C0092 9356855014 9356855014
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-0D060

NCP92,ZSP92

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0D130

NCP92,ZSP92

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0D130

NCP92,ZSP92

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-0D080

NCP92,ZSP92

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-0D090

NCP92,ZSP92

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-0D150

NCP92,ZSP92

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-0D160

NCP92,ZSP92

 1
87212 - DUCT, AIR, REAR NO.1
87215-0D020

NCP92,ZSP92

 1
87212F - DUCT, AIR, REAR NO.2
87213-0D050

NCP92,ZSP92

 1
87212G - DUCT, AIR, REAR NO.3
87216-0D020

NCP92,ZSP92

 1
87212H - DUCT, AIR, REAR NO.4
87212-0D050

NCP92,ZSP92

 1
Common parts
90119-C0092
93568-55014
Linked diagrams
8714
