NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

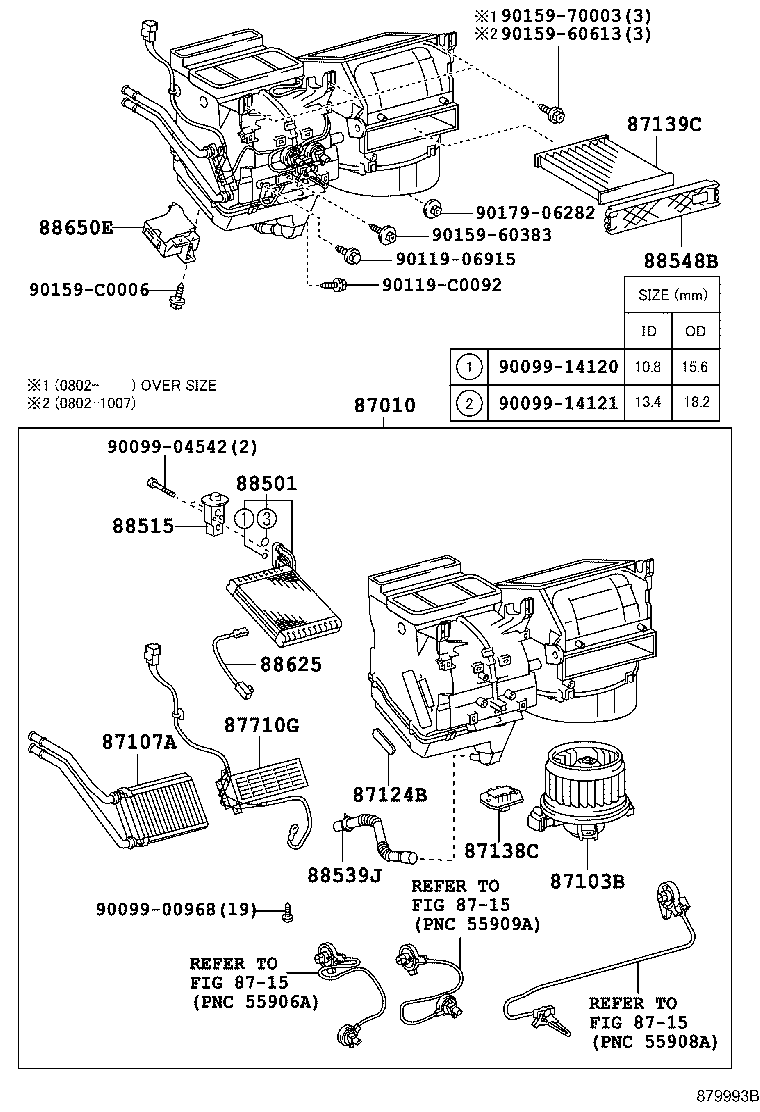

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0D460 |
NCP92,ZSP92 |
1 | ||
| 87010-0D461 |
NCP92,ZSP92 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D170 |
NCP92,ZSP92 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0D100 |
NCP92,ZSP92 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D020 |
NCP92,ZSP92 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D100 |
NCP92,ZSP92 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0D030 |
NCP92,ZSP92 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0D010 |
NCP92,ZSP92 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D150 |
NCP92,ZSP92 |
1 | ||
| 88501-0D151 |
NCP92,ZSP92 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D100 |
NCP92,ZSP92 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D110 |
NCP92,ZSP92 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D070 |
NCP92,ZSP92 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-0D100 |
NCP92,ZSP92 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0D220 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06915 | ||||
| 90119-C0092 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-C0006 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
