NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

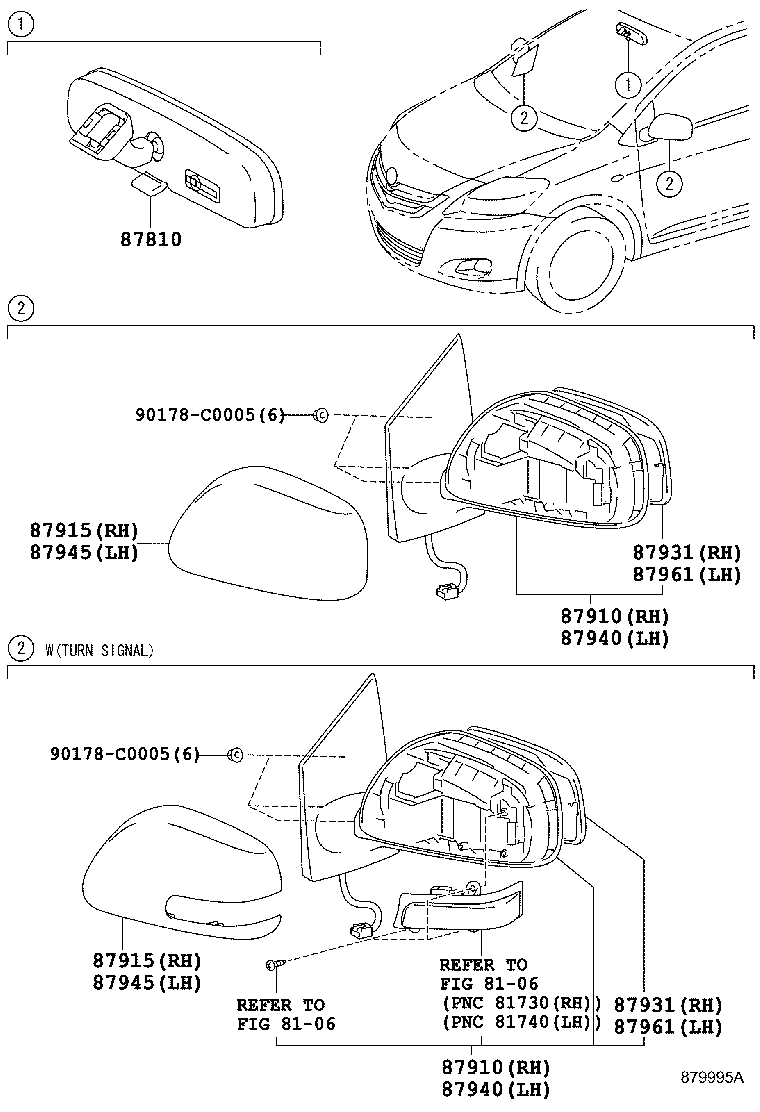

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0D030 |
NCP92,ZSP92 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0D410 |
NCP92 NO PAINT REQ. |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0D410 |
NCP92 NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0D906 |
NCP92,ZSP92..GLI,GLS PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0D906 |
NCP92,ZSP92..GLI,GLS PAINT REQ. |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-0D390 |
NCP92,ZSP92 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-0D390 |
NCP92,ZSP92 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0D410 |
NCP92 NO PAINT REQ. |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0D410 |
NCP92 NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0D906 |
NCP92,ZSP92..GLI,GLS PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0D906 |
NCP92,ZSP92..GLI,GLS PAINT REQ. |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-0D390 |
NCP92,ZSP92 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-0D390 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90178-C0005 | ||||
| Linked diagrams | ||||
| 8106 | ||||
