NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

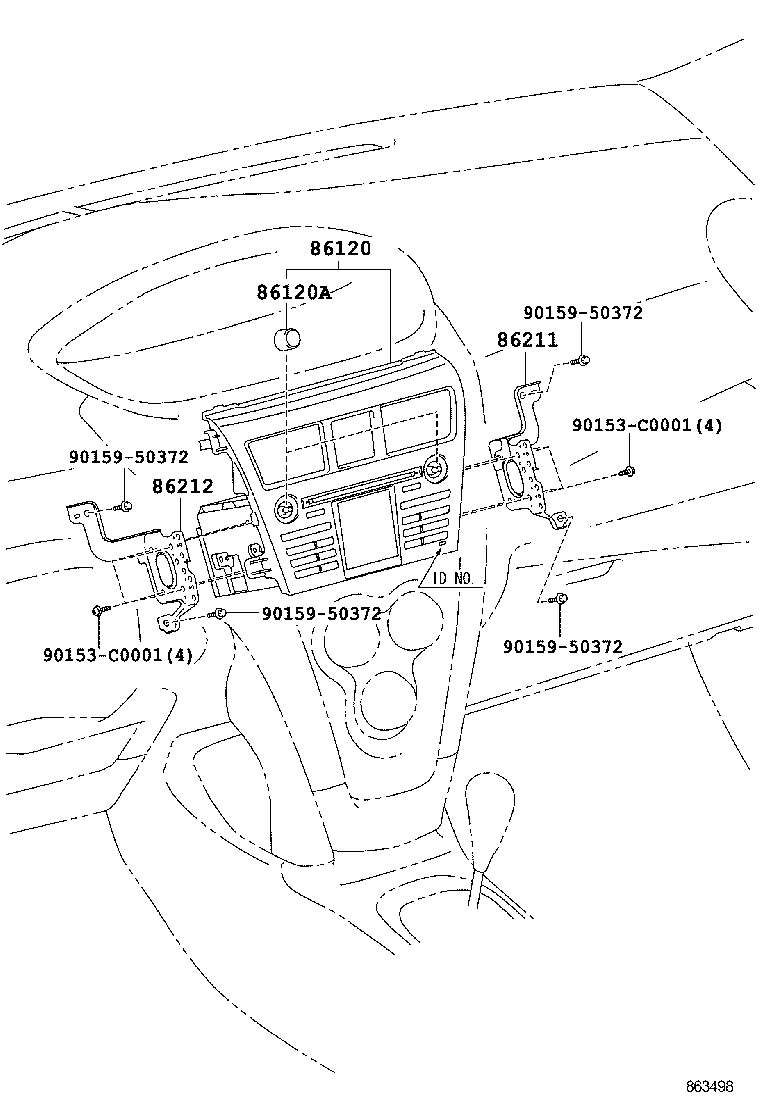

ILLUST NO. 1 OF 3(0802- )

Click highlighted areas on diagram

diagram 86120 86120A 86211 86212 90153C0001 90153C0001 9015950372 9015950372 9015950372 9015950372
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D420

NCP92,ZSP92..GLI,GLXI

FUJITSU TEN,ID=12859

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25149

NCP92,ZSP92

 2
86211 - BRACKET, RADIO, NO.1
86211-0D080

NCP92,ZSP92

 1
86212 - BRACKET, RADIO, NO.2
86212-0D080

NCP92,ZSP92

 1
Common parts
90153-C0001
90159-50372

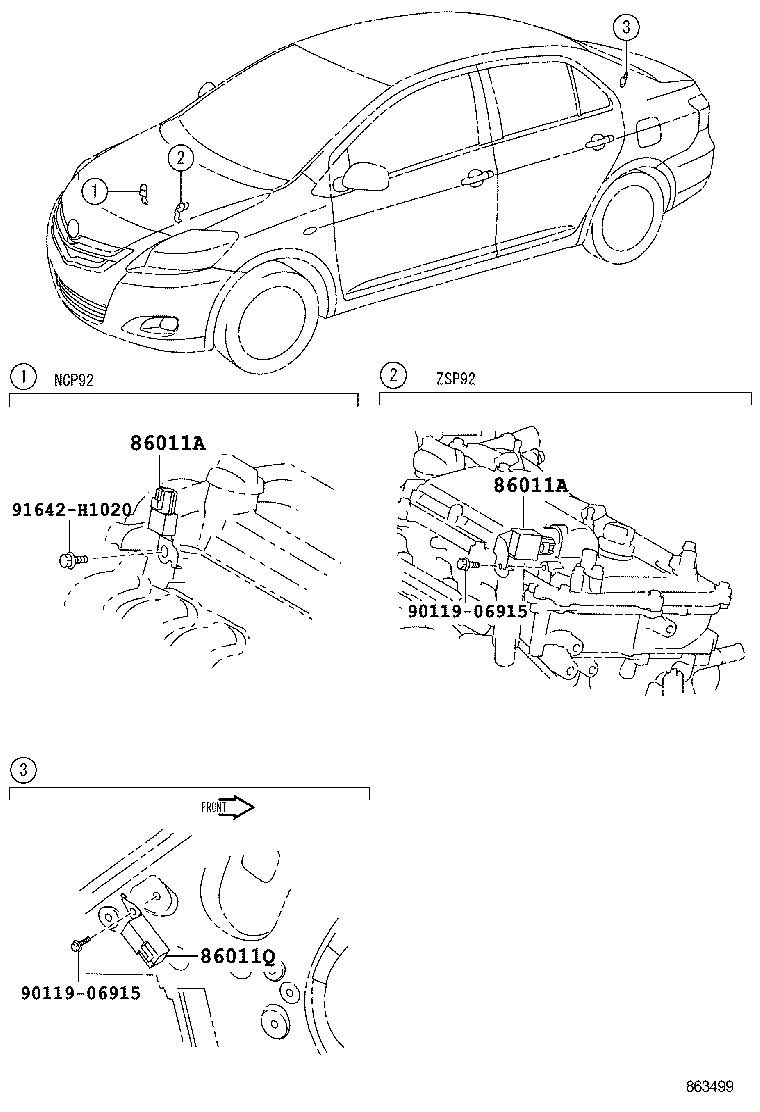

ILLUST NO. 3 OF 3(0802- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 9011906915 9011906915 91642H1020
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04141

NCP92

 1
86011A - CONDENSER, RADIO SETTING
90980-04141

NCP92

 1
86011Q - CONDENSER, RADIO SETTING
90980-04193

NCP92,ZSP92

 1
Common parts
90119-06915
91642-H1020
