NCP92L-BEPHKC (2008)
Toyota Vios (China)
(0802- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

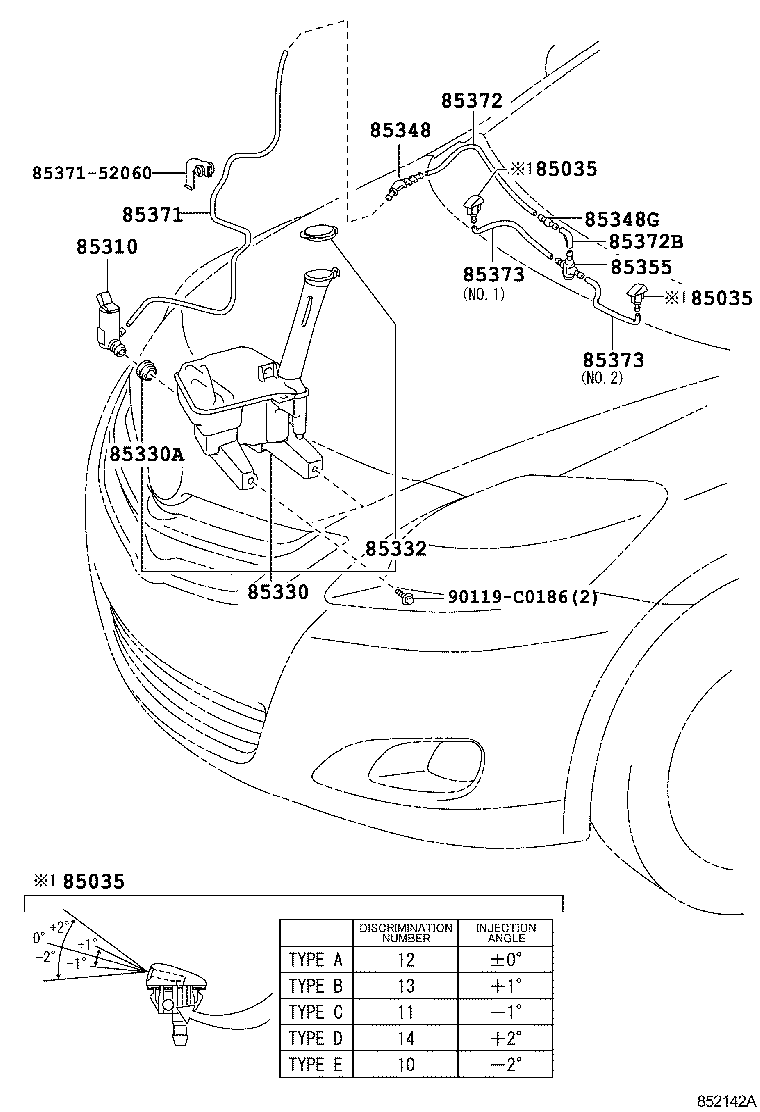

| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52250 |
NCP92,ZSP92 TYPE A:REFER ILLUST. |
2 | ||
| 85381-52310 |
NCP92,ZSP92 TYPE E:REFER ILLUST. |
2 | ||
| 85381-52280 |
NCP92,ZSP92 TYPE B:REFER ILLUST. |
2 | ||
| 85381-52290 |
NCP92,ZSP92 TYPE C:REFER ILLUST. |
2 | ||
| 85381-52300 |
NCP92,ZSP92 TYPE D:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52250 |
NCP92,ZSP92 TYPE A:REFER ILLUST. |
2 | ||
| 85381-52310 |
NCP92,ZSP92 TYPE E:REFER ILLUST. |
2 | ||
| 85381-52280 |
NCP92,ZSP92 TYPE B:REFER ILLUST. |
2 | ||
| 85381-52290 |
NCP92,ZSP92 TYPE C:REFER ILLUST. |
2 | ||
| 85381-52300 |
NCP92,ZSP92 TYPE D:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-52250 |
NCP92,ZSP92 TYPE A:REFER ILLUST. |
2 | ||
| 85381-52310 |
NCP92,ZSP92 TYPE E:REFER ILLUST. |
2 | ||
| 85381-52280 |
NCP92,ZSP92 TYPE B:REFER ILLUST. |
2 | ||
| 85381-52290 |
NCP92,ZSP92 TYPE C:REFER ILLUST. |
2 | ||
| 85381-52300 |
NCP92,ZSP92 TYPE D:REFER ILLUST. |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0D010 |
NCP92,ZSP92 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-0D110 |
NCP92,ZSP92 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90068-32006 |
NCP92,ZSP92 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-02200 |
NCP92,ZSP92 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-0D170 |
NCP92,ZSP92 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-0D030 |
NCP92,ZSP92 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-30080 |
NCP92,ZSP92 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-45011 |
NCP92,ZSP92 L=780 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-45014 |
NCP92,ZSP92 L=550 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85336-12230 |
NCP92,ZSP92 L=15 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-45016 |
NCP92,ZSP92 L=320,NO.1 |
1 | ||
| 90068-45017 |
NCP92,ZSP92 L=410,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-45016 |
NCP92,ZSP92 L=320,NO.1 |
1 | ||
| 90068-45017 |
NCP92,ZSP92 L=410,NO.2 |
1 | ||
| Common parts | ||||
| 85371-52060 | ||||
| 90119-C0186 | ||||
