NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

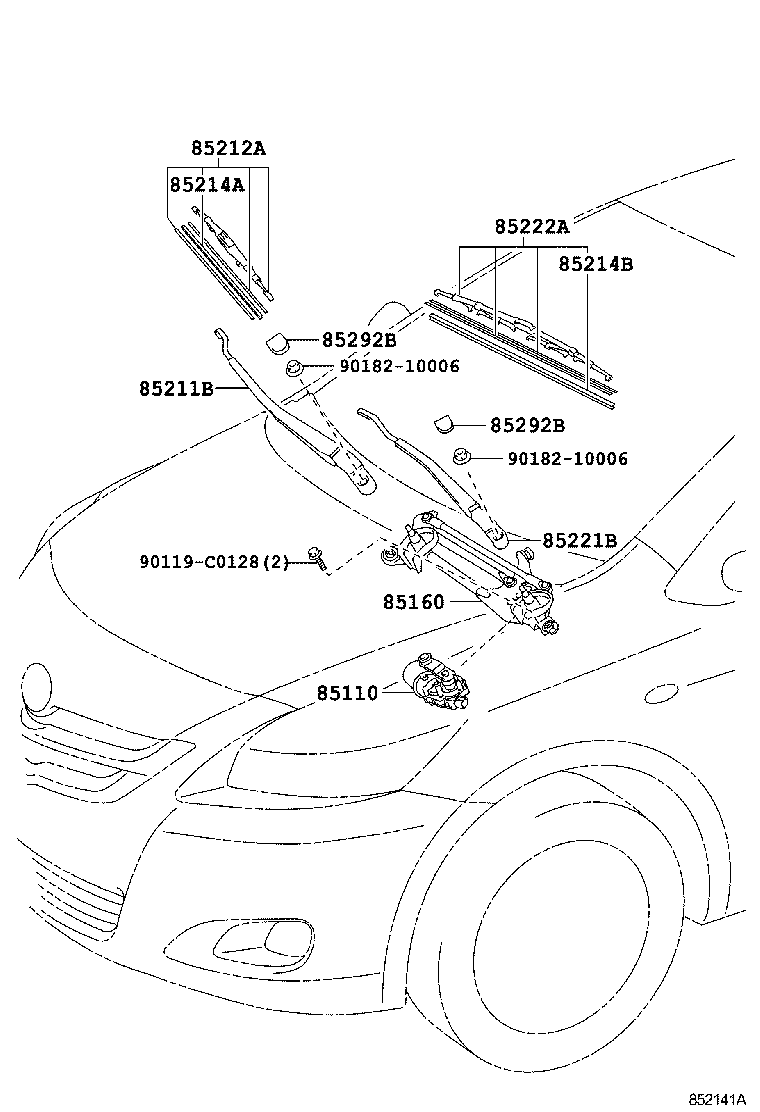

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 90119C0128 9018210006 9018210006
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0D140

NCP92,ZSP92

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0D140

NCP92,ZSP92

 1
85211B - ARM, FRONT WIPER, RH
85211-0D120

NCP92,ZSP92

 1
85212A - BLADE, FR WIPER, RH
85212-0D081

NCP92,ZSP92

 1
85214A - RUBBER, WIPER, RH
85214-0D121

NCP92,ZSP92

 1
85214B - RUBBER, WIPER, LH
85214-02180

NCP92,ZSP92

 1
85221B - ARM, FRONT WIPER, LH
85221-0D120

NCP92,ZSP92

 1
85222A - BLADE, FR WIPER, LH
85222-0D080

NCP92,ZSP92

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

NCP92,ZSP92

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

NCP92,ZSP92

 2
Common parts
90119-C0128
90182-10006
