NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

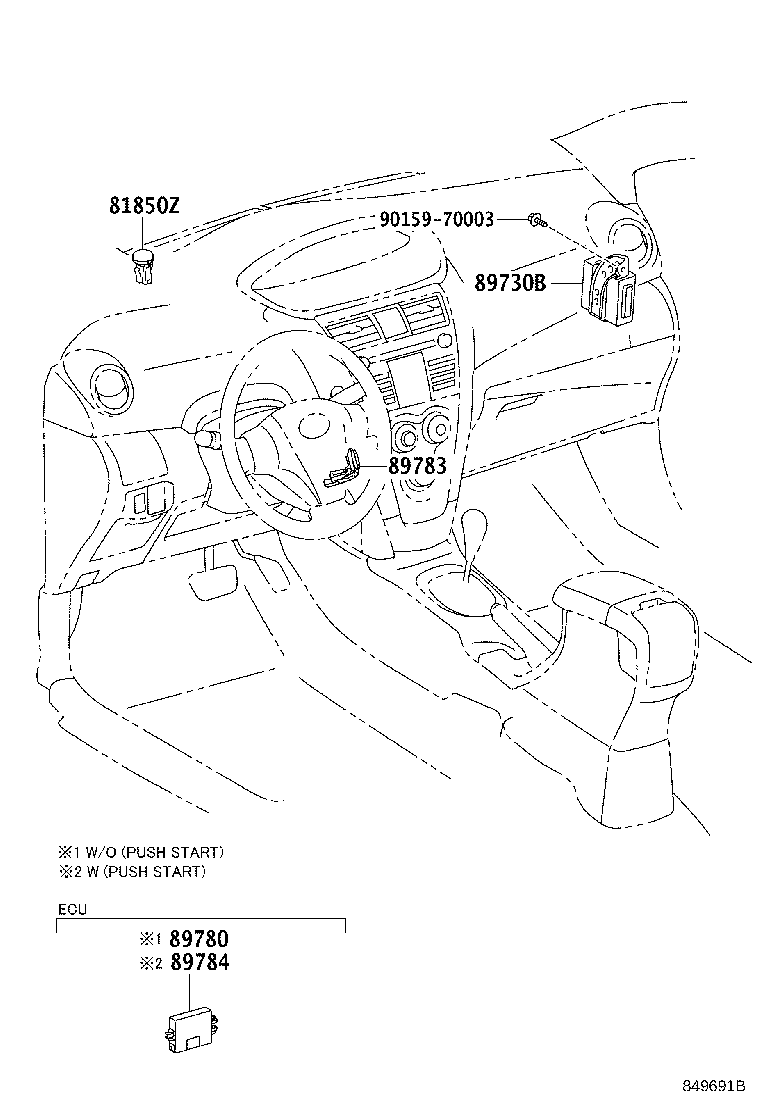

Click highlighted areas on diagram

diagram 81850Z 89730B 89780 89783 89784 9015970003
Part # Description Qty Price
81850Z - LAMP ASSY, THEFT WARNING INDICATOR
81850-52010

NCP92,ZSP92

 1
89730B - COMPUTER ASSY, THEFT WARNING
89730-0D050

NCP92,ZSP92

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-0D020

NCP92,ZSP92

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-0D030

NCP92,ZSP92

 1
Common parts
90159-70003
