NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

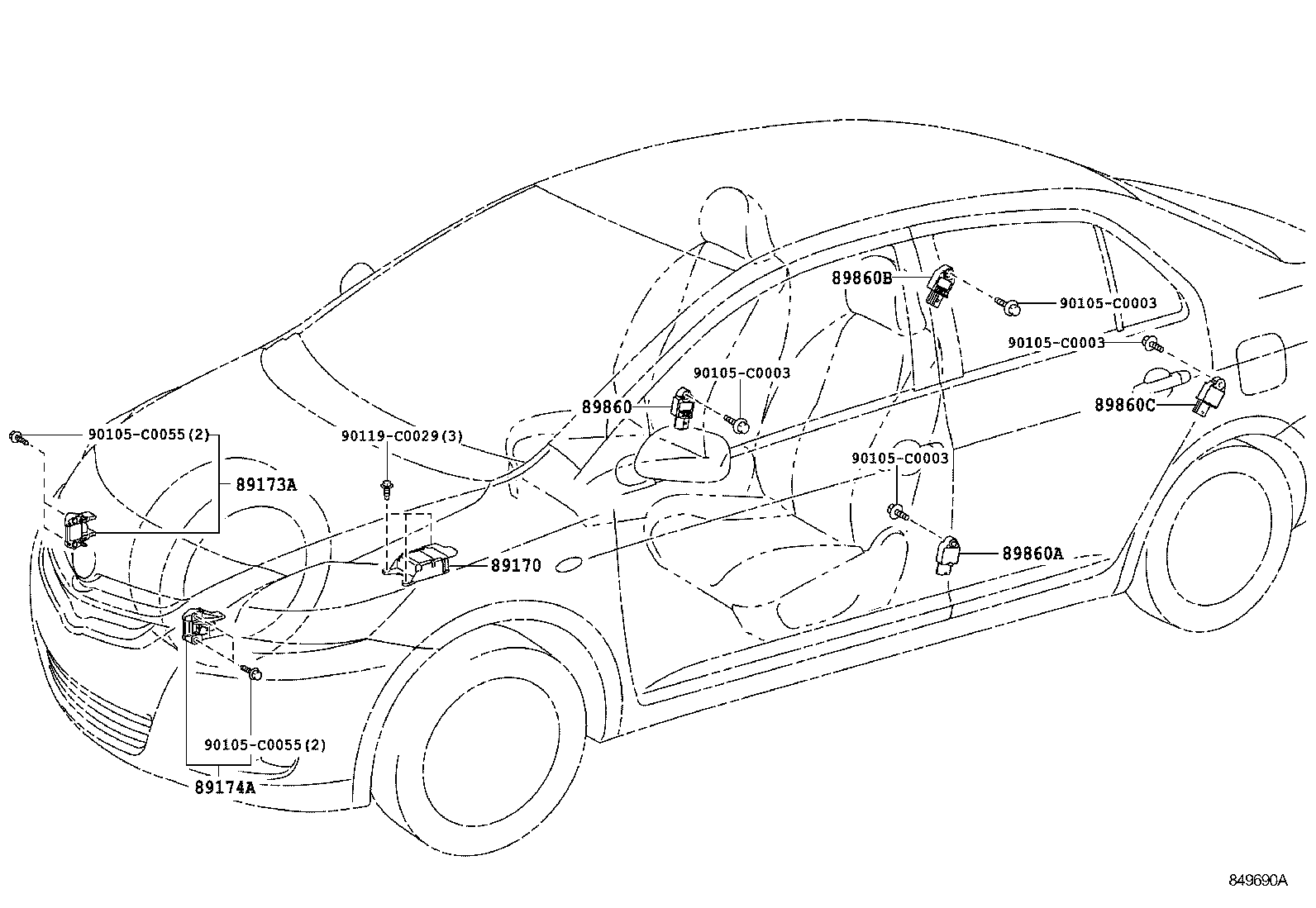

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860A 89860B 89860C 90105C0003 90105C0003 90105C0003 90105C0003 90105C0055 90105C0055 90119C0029
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0D360

NCP92,ZSP92

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09520

NCP92,ZSP92

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09520

NCP92,ZSP92

 1
Common parts
90105-C0003
90105-C0055
90119-C0029
