NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

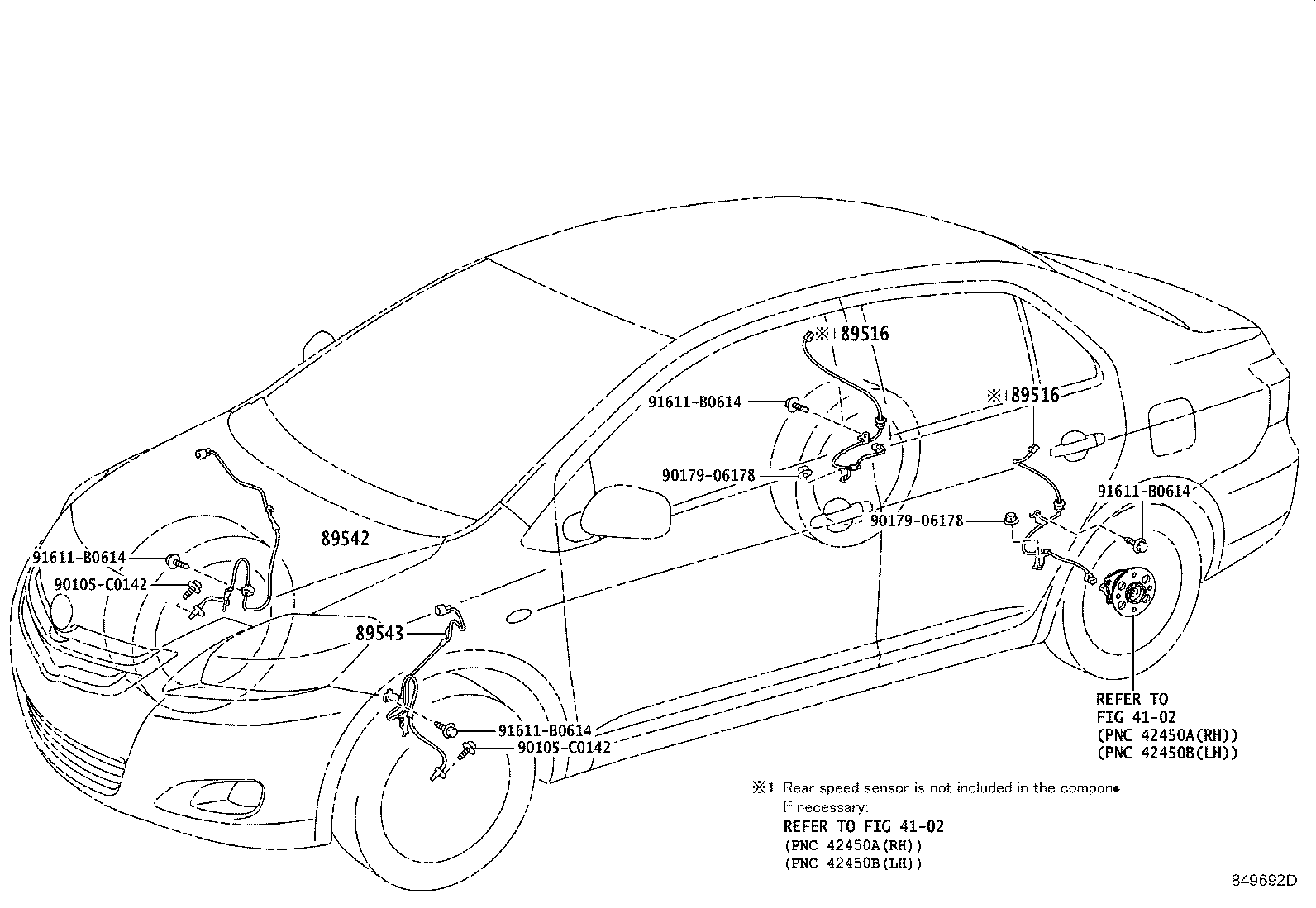

Click highlighted areas on diagram

diagram 4102 4102 89516 89516 89542 89543 90105C0142 90105C0142 9017906178 9017906178 91611B0614 91611B0614 91611B0614 91611B0614
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-0D110

NCP92,ZSP92

RH

 1
89516-0D120

NCP92,ZSP92

LH

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-0D110

NCP92,ZSP92

RH

 1
89516-0D120

NCP92,ZSP92

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-0D030

NCP92,ZSP92

 1
89543 - SENSOR, SPEED, FRONT LH
89543-0D030

NCP92,ZSP92

 1
Common parts
90105-C0142
90179-06178
91611-B0614
Linked diagrams
4102
