NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )NCP92

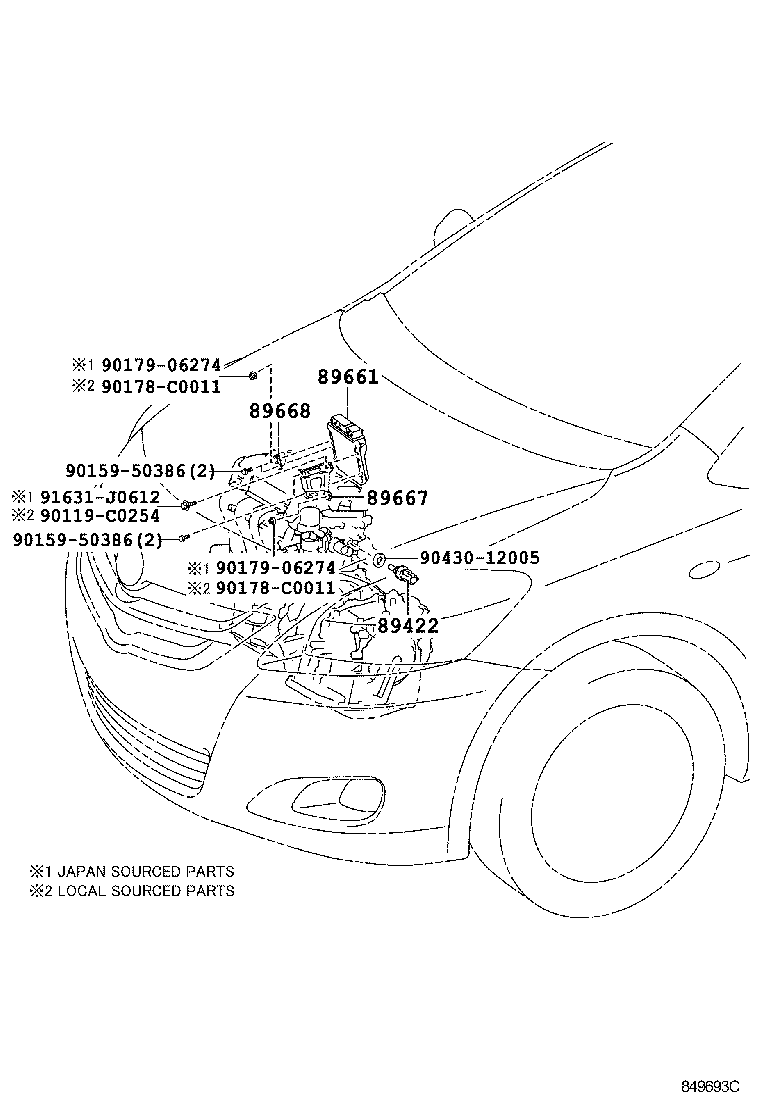

Click highlighted areas on diagram

diagram 89422 89661 89667 89668 90119C0254 9015950386 9015950386 90178C0011 90178C0011 9017906274 9017906274 9043012005 91631J0612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NCP92

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0D860

NCP92..4FC

BEIJING SPEC

 1
89661-0D880

NCP92..4FC

 1
89661-0D860

NCP92..4FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0D080

NCP92,ZSP92

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D080

NCP92,ZSP92

 1
Common parts
90119-C0254
90159-50386
90178-C0011
90179-06274
90430-12005
91631-J0612
