NCP92L-BEPHKC (2008)
Toyota Vios (China)

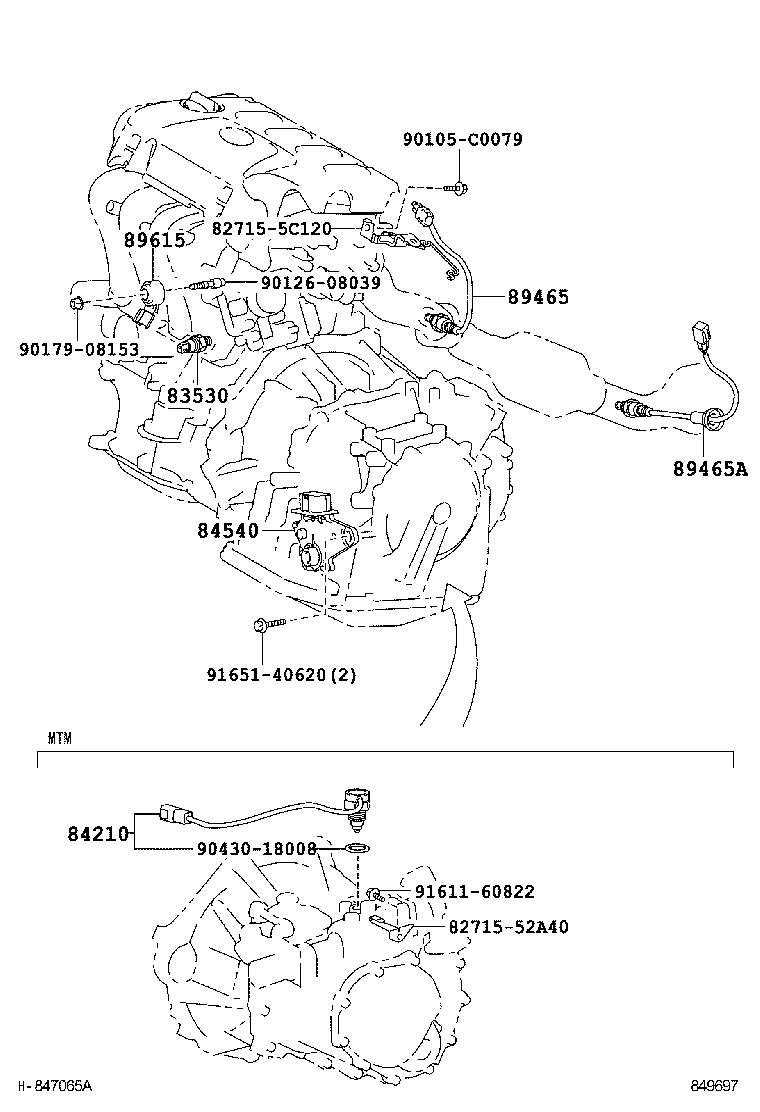

ILLUST NO. 1 OF 7(0802- )NCP92
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP92,ZSP92 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-46010 |
NCP92..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52380 |
NCP92 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-52370 |
NCP92 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 82715-52A40 | ||||
| 82715-5C120 | ||||
| 90105-C0079 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||

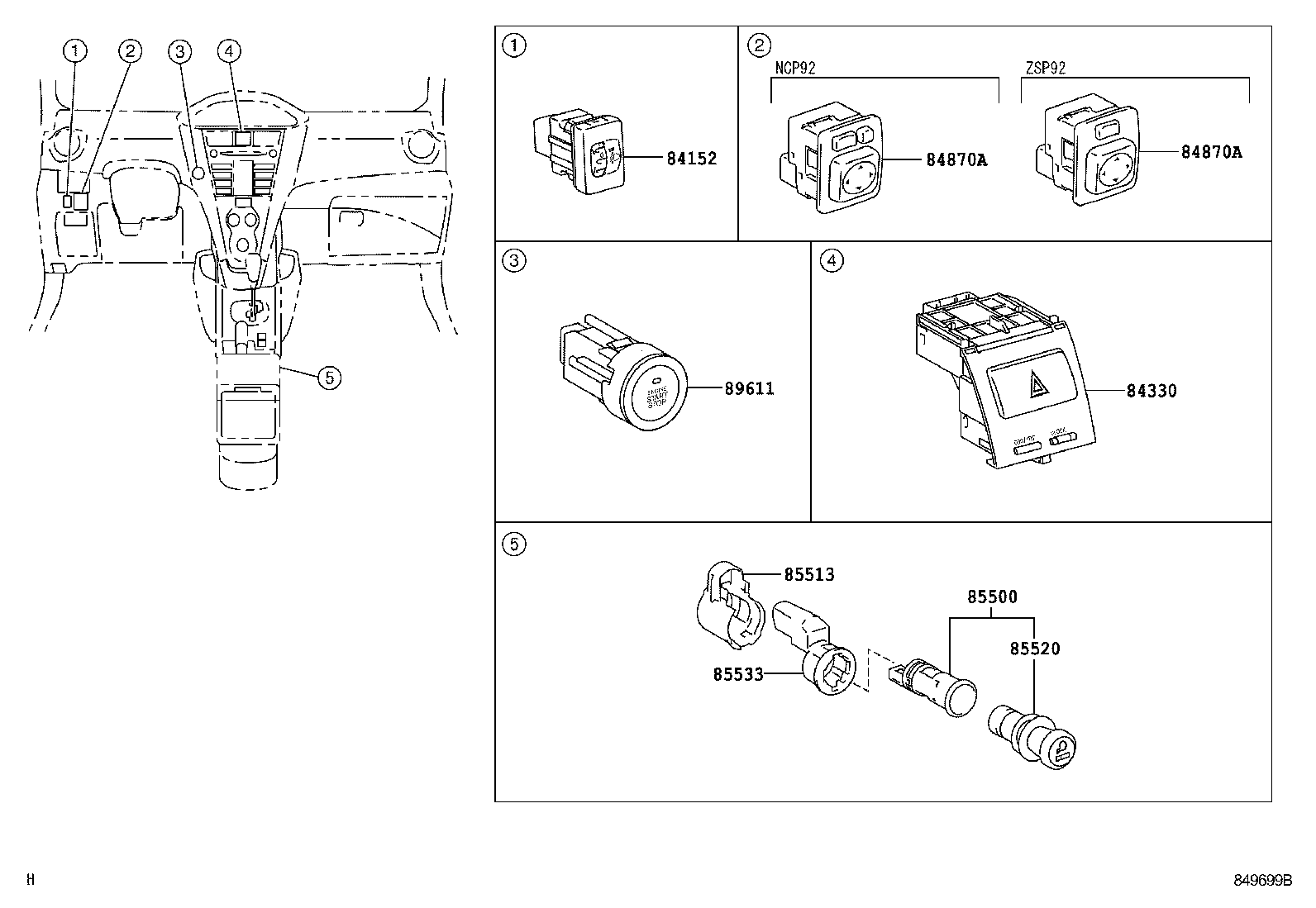

ILLUST NO. 5 OF 7(0802- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 84152-52100 |
NCP92,ZSP92..GLI,GLXI HEADLAMP LEVELING DEVICE-WITHOUT |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-0D020 |
NCP92,ZSP92 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D080 |
NCP92 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D080 |
NCP92 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
NCP92,ZSP92 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP92,ZSP92 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP92,ZSP92 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
NCP92,ZSP92 |
1 | ||

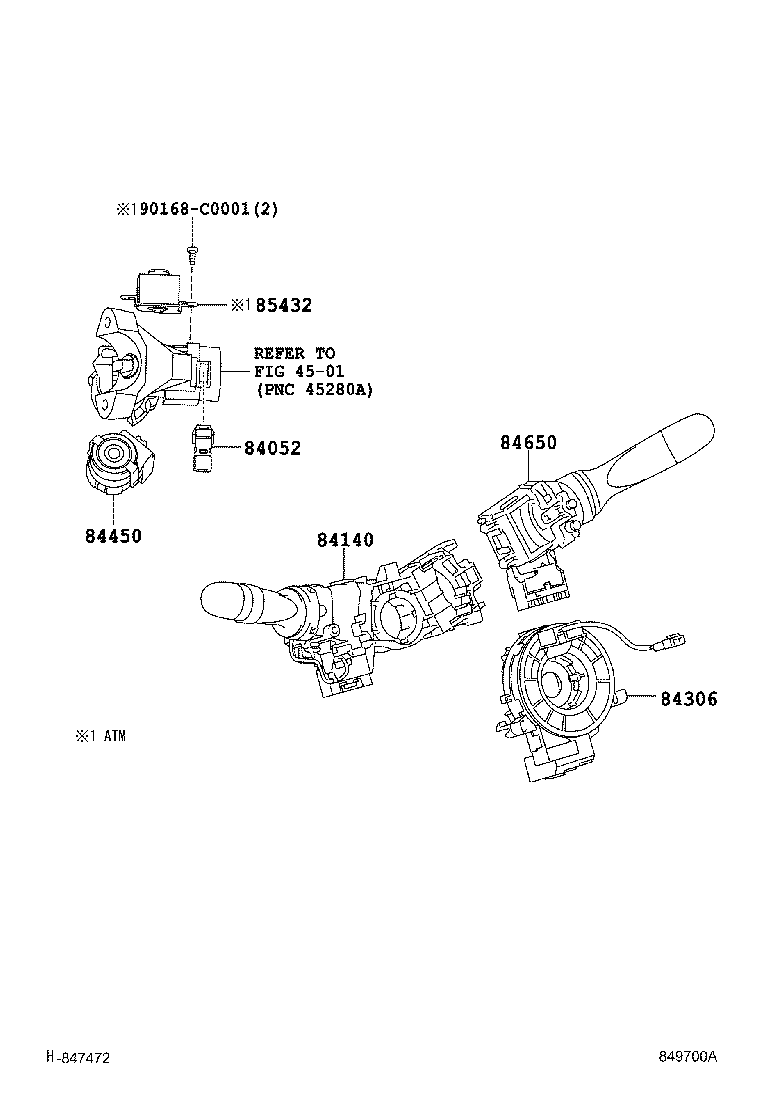

ILLUST NO. 6 OF 7(0802- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-06010 |
NCP92,ZSP92 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D260 |
NCP92 |
1 | ||
| 84140-0D261 |
NCP92 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02190 |
NCP92,ZSP92 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06010 |
NCP92,ZSP92 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02451 |
NCP92,ZSP92 |
1 | ||
| 84652-02452 |
NCP92,ZSP92 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-02010 |
NCP92,ZSP92..4FC |
1 | ||
| Common parts | ||||
| 90168-C0001 | ||||
| Linked diagrams | ||||
| 4501 | ||||

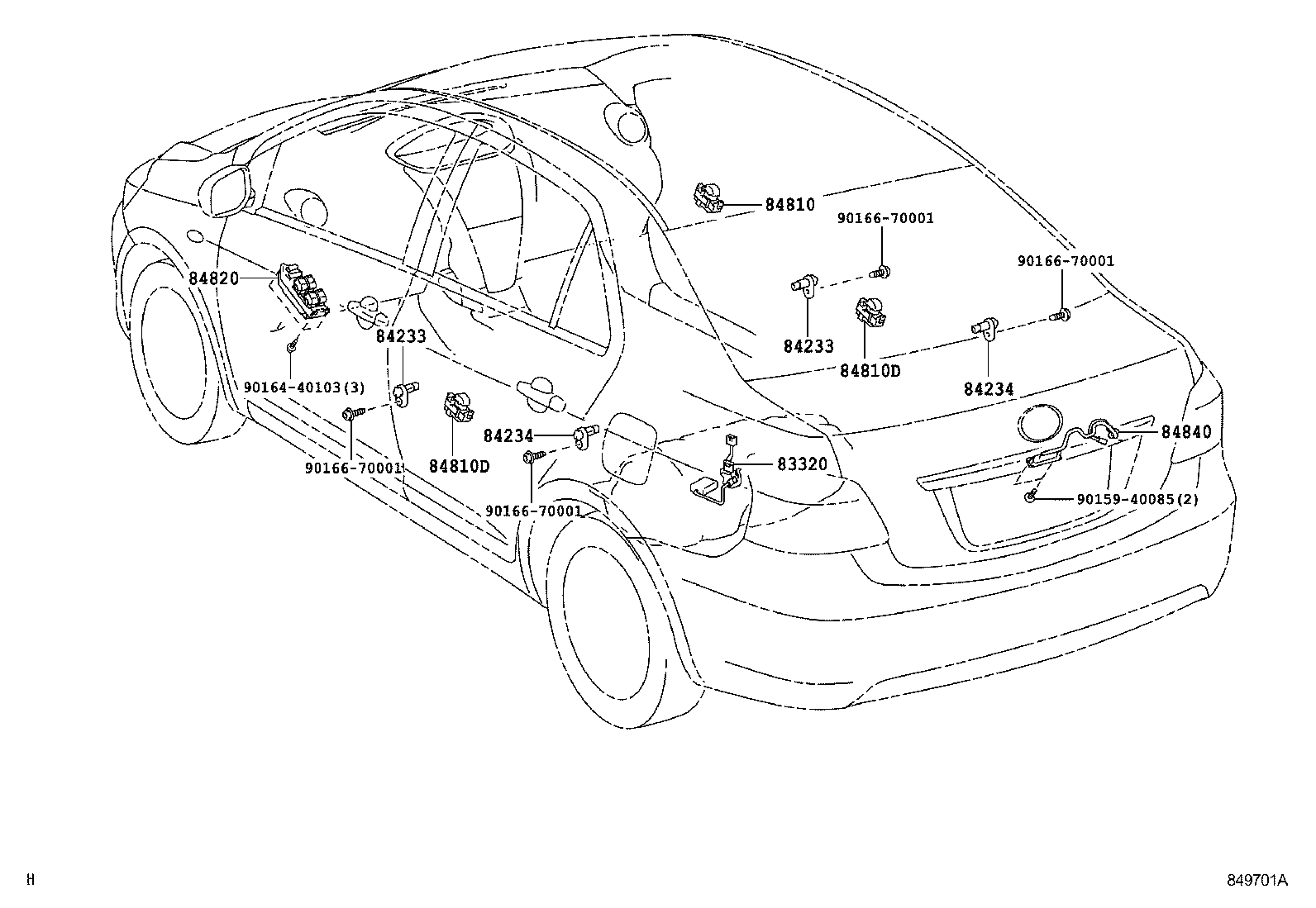

ILLUST NO. 7 OF 7(0802- )
DOOR,ROOF,FLOOR, & LAGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D070 |
NCP92,ZSP92 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP92,ZSP92 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP92,ZSP92 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
NCP92,ZSP92 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
NCP92,ZSP92 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D080 |
NCP92,ZSP92 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NCP92,ZSP92 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
NCP92,ZSP92 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D120 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||

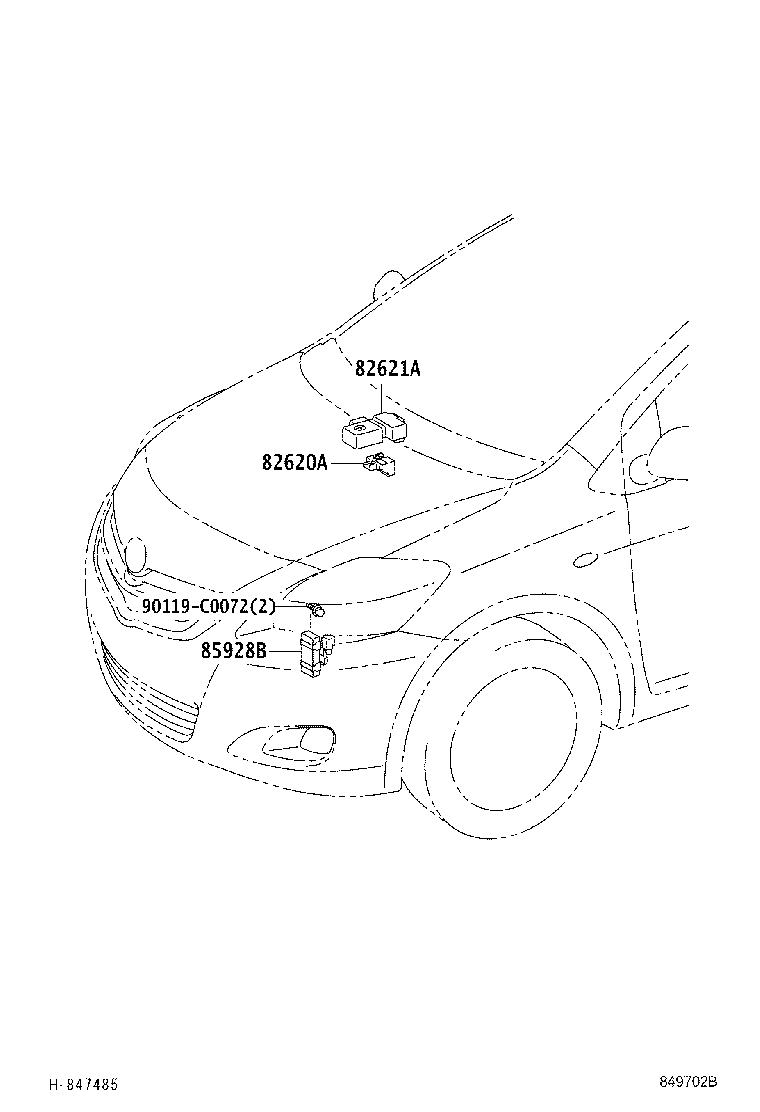

ILLUST NO. 2 OF 7(0802- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52050 |
NCP92,ZSP92 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
NCP92,ZSP92 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-C0072 | ||||

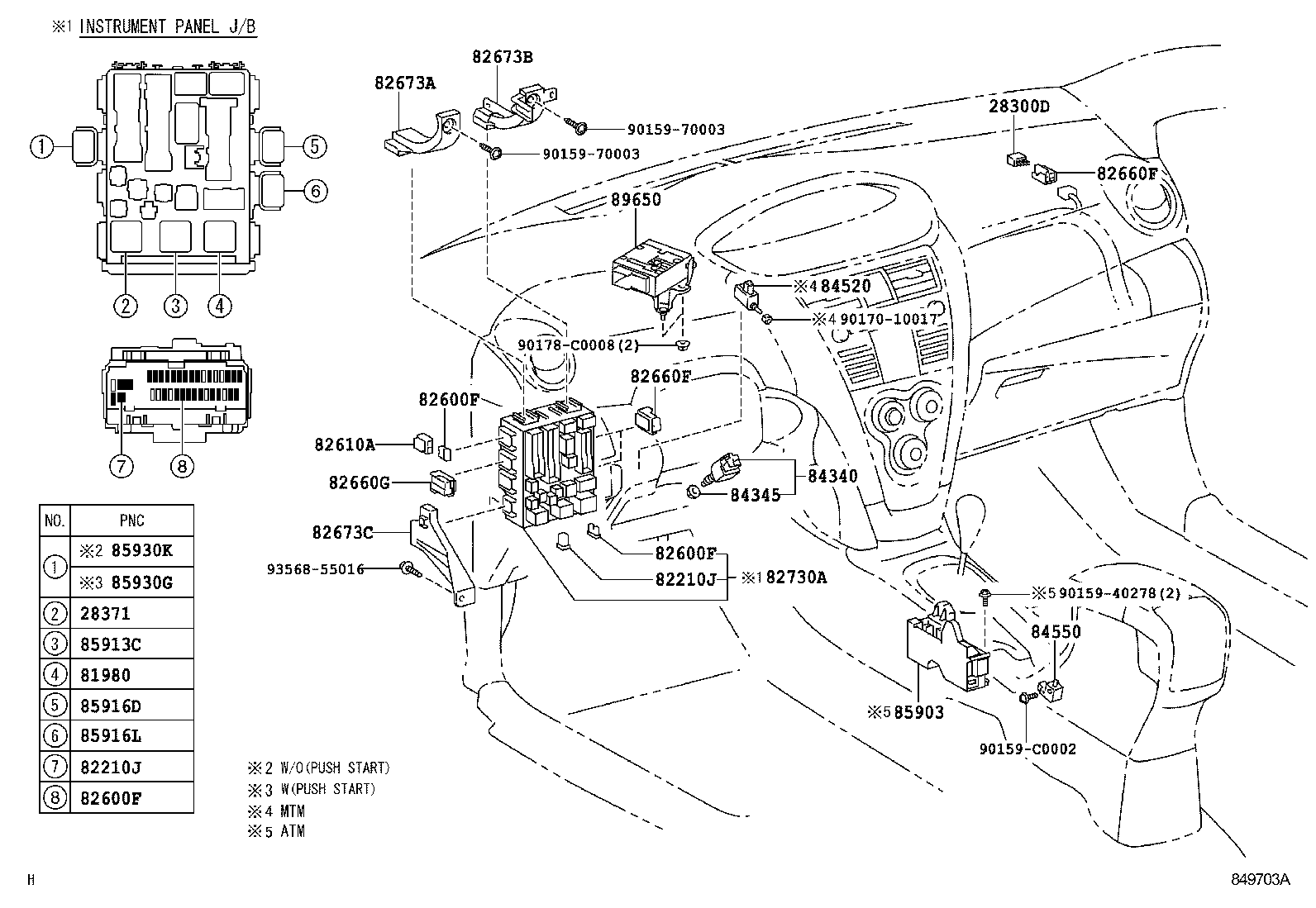

ILLUST NO. 4 OF 7(0802- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-C2001 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 90987-02030 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0D030 |
NCP92,ZSP92 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP92,ZSP92 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NCP92,ZSP92 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NCP92,ZSP92 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP92,ZSP92 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NCP92,ZSP92 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NCP92,ZSP92 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-52010 |
NCP92,ZSP92 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP92,ZSP92 |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP92,ZSP92 |
2 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52040 |
NCP92,ZSP92 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52110 |
NCP92,ZSP92 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52120 |
NCP92,ZSP92 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52130 |
NCP92,ZSP92 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D250 |
NCP92,ZSP92 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
NCP92,ZSP92 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP92,ZSP92 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NCP92,ZSP92 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-60020 |
NCP92,ZSP92..4FC |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-T4002 |
NCP92,ZSP92 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2005 |
NCP92,ZSP92 |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-T4001 |
NCP92,ZSP92 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D130 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90159-40278 | ||||
| 90159-70003 | ||||
| 90159-C0002 | ||||
| 90170-10017 | ||||
| 90178-C0008 | ||||
| 93568-55016 | ||||

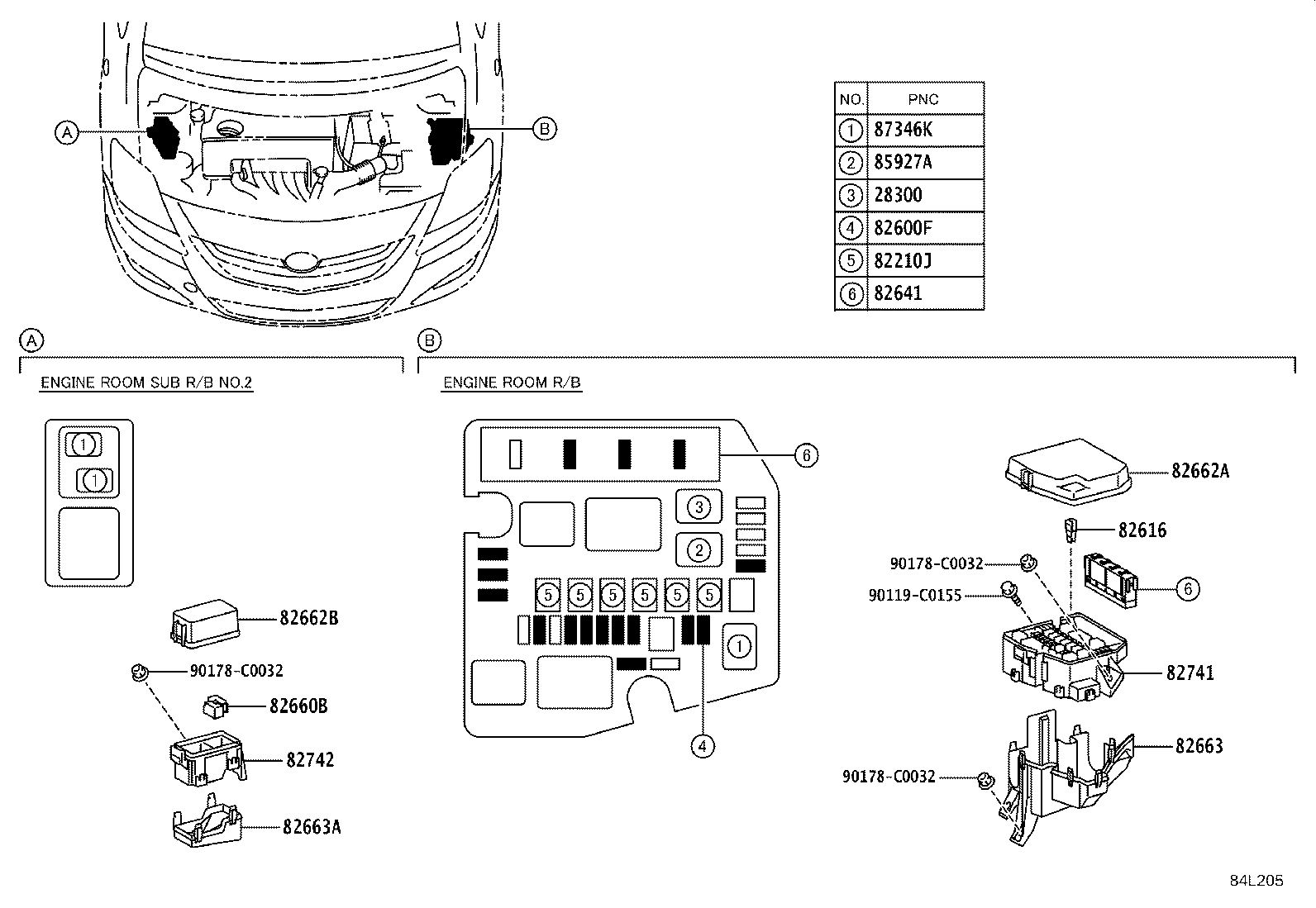

ILLUST NO. 3 OF 7(0802- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2NZFE,1ZRFE..NCP92,ZSP92 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP92,ZSP92 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NCP92,ZSP92 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NCP92,ZSP92 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NCP92,ZSP92 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NCP92,ZSP92 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NCP92,ZSP92 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NCP92,ZSP92 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NCP92,ZSP92 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
NCP92,ZSP92 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NCP92,ZSP92 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NCP92,ZSP92 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP92,ZSP92 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52540 |
NCP92,ZSP92 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52550 |
NCP92,ZSP92 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52031 |
NCP92,ZSP92 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52060 |
NCP92,ZSP92 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52031 |
NCP92,ZSP92 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP92,ZSP92 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T4001 |
NCP92,ZSP92 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
NCP92,ZSP92 |
3 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||
