NCP92L-BEPHKC (2008)
Toyota Vios (China)

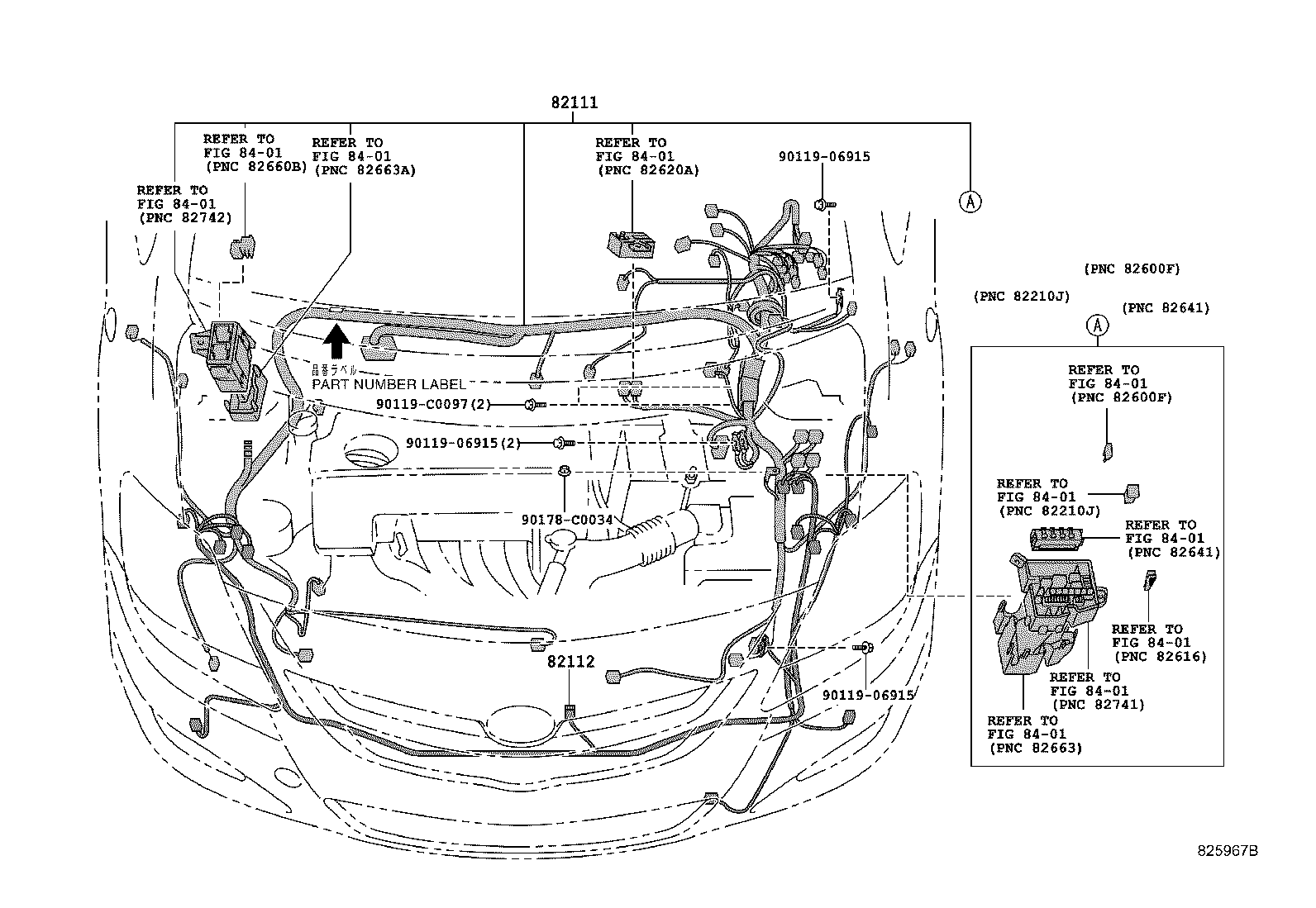

ILLUST NO. 1 OF 8(0802- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0DJ50 |
NCP92;ZSP92..5F |
1 | ||
| 82111-0DJ50 |
NCP92;ZSP92..5F PART NUMBER LABEL=82111-0DJ50 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-0D140 |
NCP92 |
1 | ||
| 82112-0D240 |
NCP92 HEADLAMP LEVELING DEVICE-WITHOUT |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-C0097 | ||||
| 90178-C0034 | ||||
| Linked diagrams | ||||
| 8401 | ||||

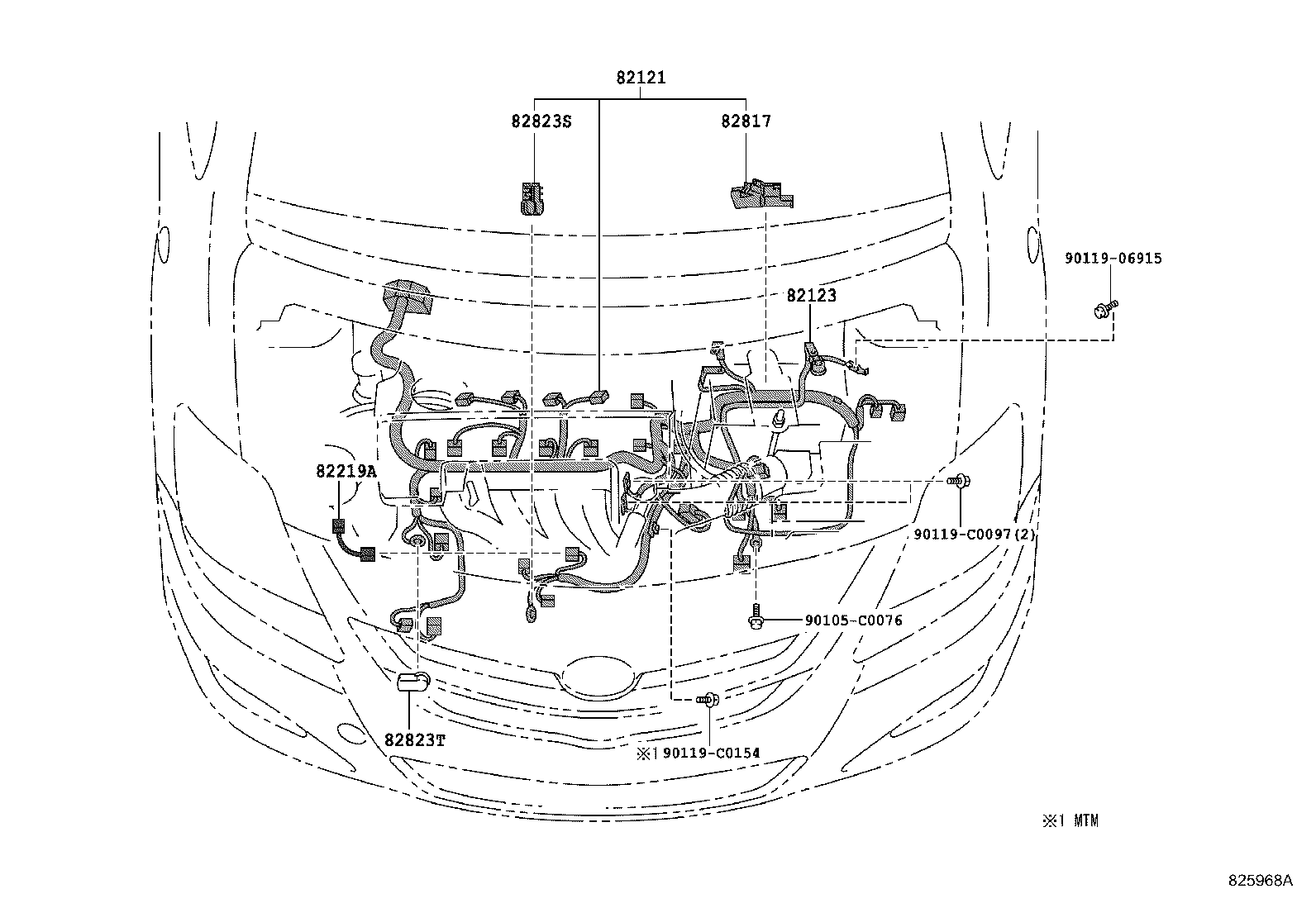

ILLUST NO. 2 OF 8(0802- )NCP92
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0D890 |
NCP92..4FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-0D310 |
NCP92..4FC |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP92 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52620 |
NCP92,ZSP92 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NCP92,ZSP92 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90105-C0076 | ||||
| 90119-06915 | ||||
| 90119-C0097 | ||||
| 90119-C0154 | ||||

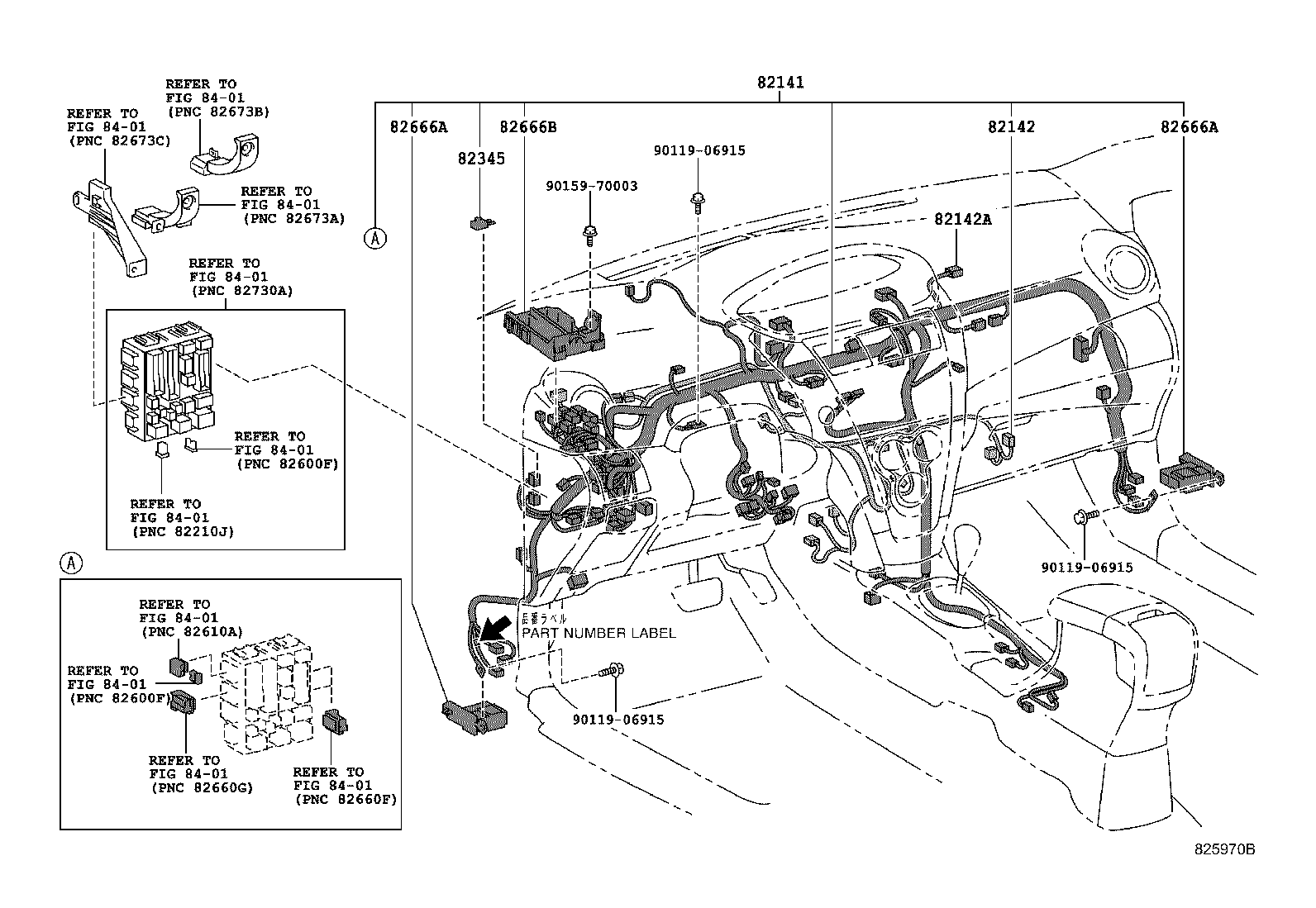

ILLUST NO. 3 OF 8(0802-1008)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0U890 |
NCP92,ZSP92..GLI,GLS |
1 | ||
| 82141-0U890 |
NCP92,ZSP92..GLI,GLS PART NUMBER LABEL=82141-0DR50 OR 82141-0U890 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0D160 |
NCP92,ZSP92 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0D020 |
NCP92,ZSP92 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
NCP92,ZSP92 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52080 |
NCP92,ZSP92 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52080 |
NCP92,ZSP92 |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52090 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

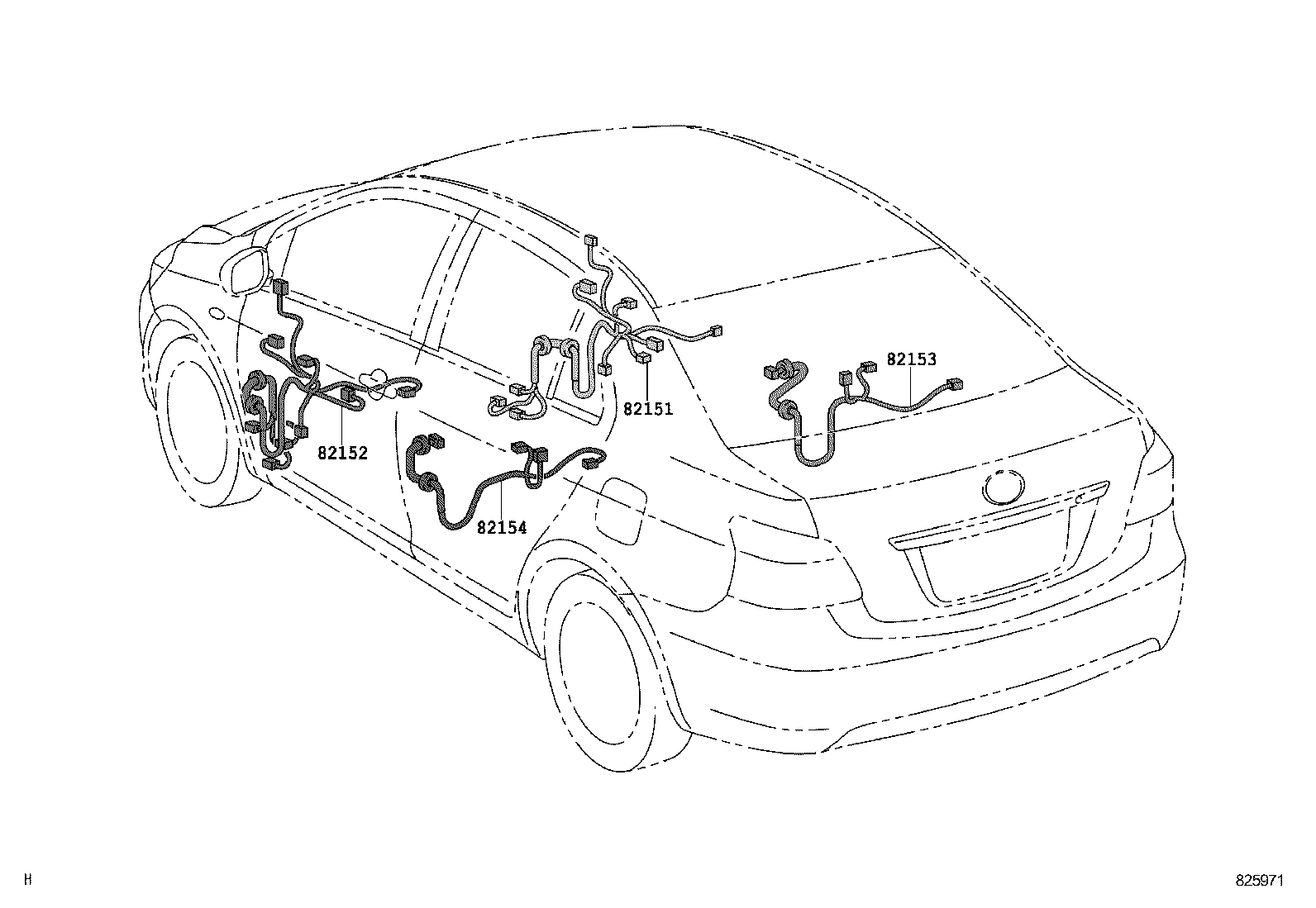

ILLUST NO. 4 OF 8(0802- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0D850 |
NCP92,ZSP92..GLI,GLS |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0D860 |
NCP92,ZSP92..GLI,GLS |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D220 |
NCP92,ZSP92 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-0D220 |
NCP92,ZSP92 |
1 | ||

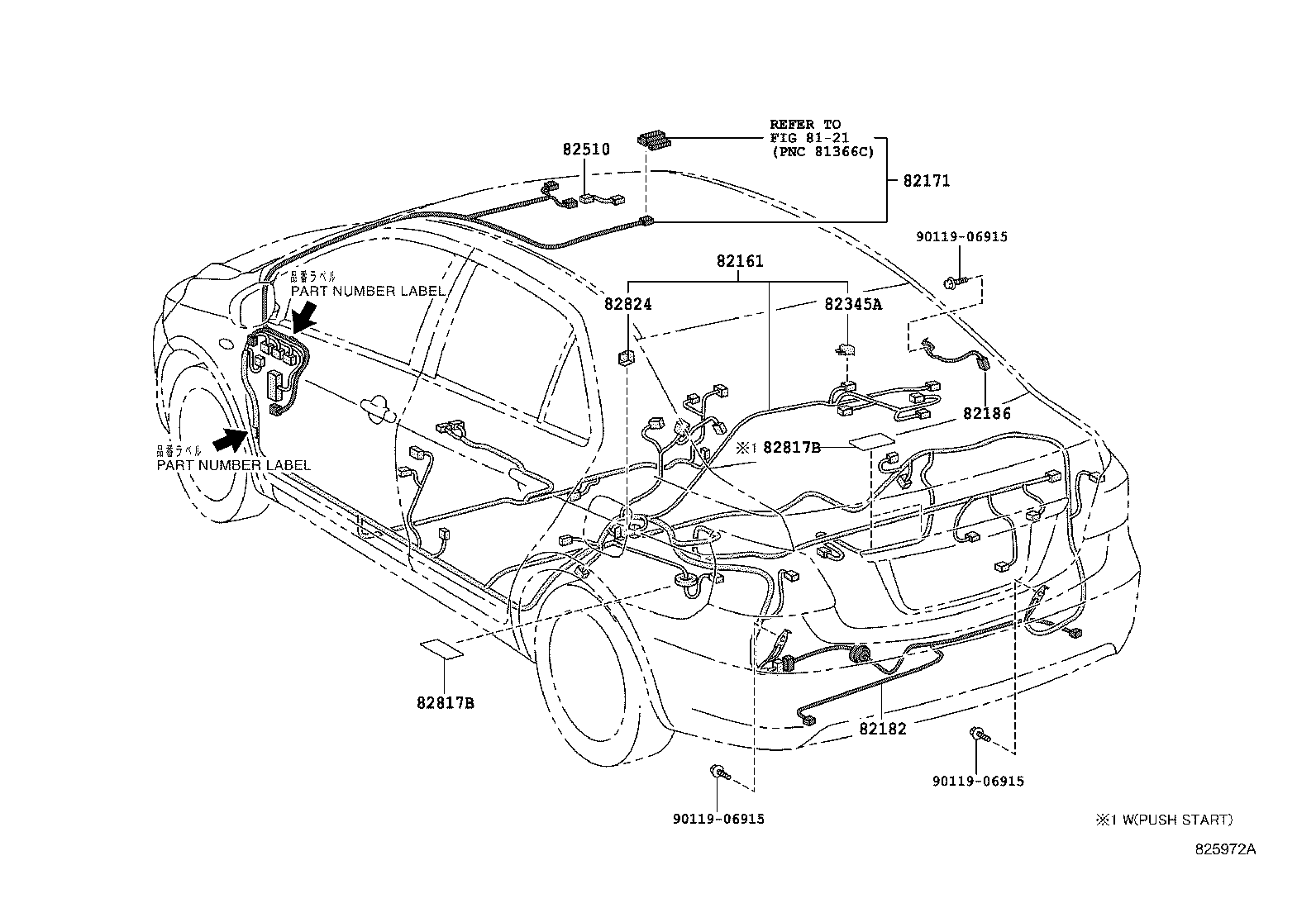

ILLUST NO. 5 OF 8(0802- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0DC20 |
NCP92,ZSP92..GLI,GLXI |
1 | ||
| 82161-0DC20 |
NCP92,ZSP92..GLI,GLXI PART NUMBER LABEL=82161-0DC20 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D090 |
NCP92,ZSP92 |
1 | ||
| 82171-0D090 |
NCP92,ZSP92 PART NUMBER LABEL=82171-0D090 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-0D030 |
NCP92,ZSP92 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0D060 |
NCP92,ZSP92 |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
NCP92,ZSP92 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
NCP92,ZSP92 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
NCP92,ZSP92 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-44030 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||

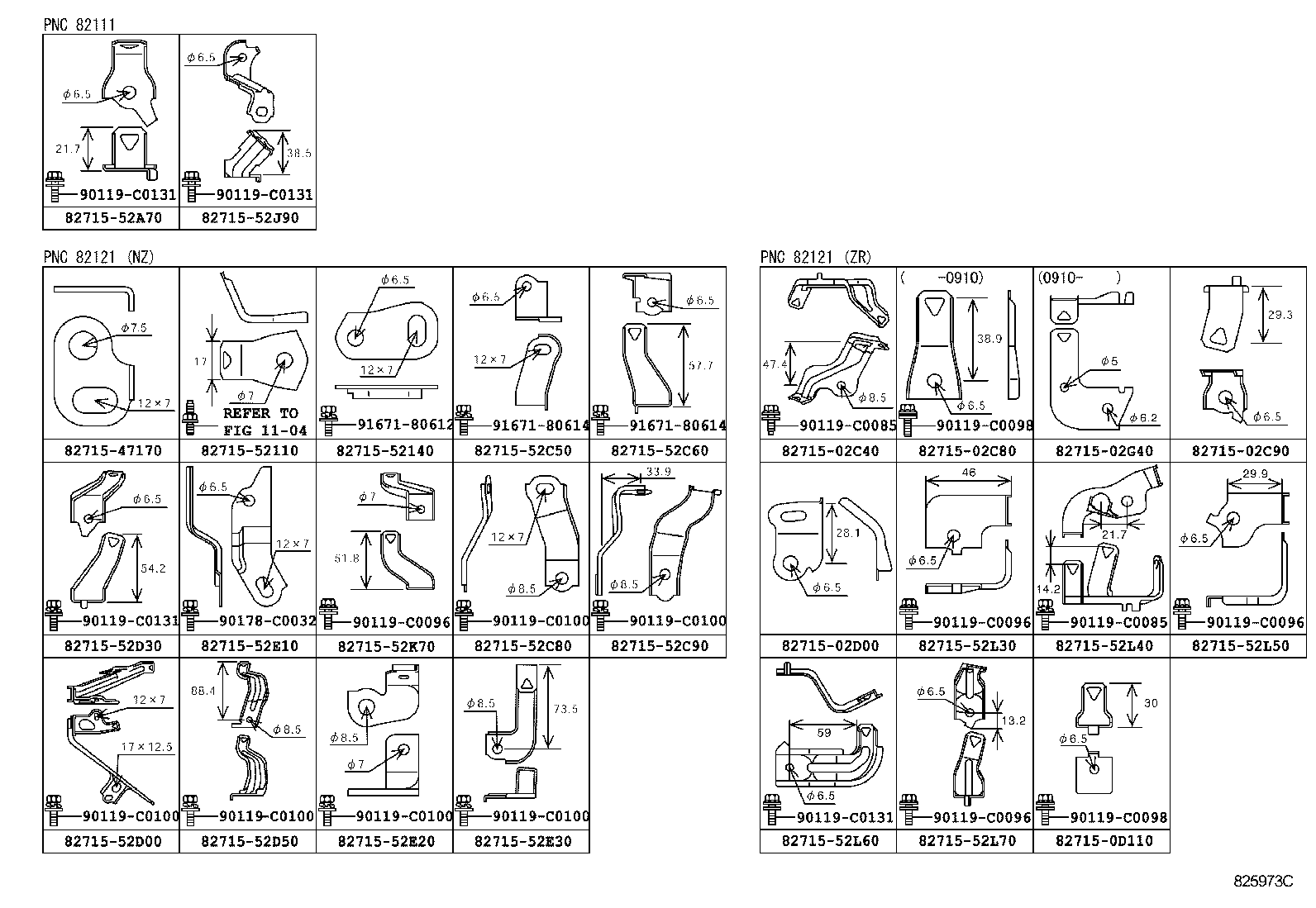

ILLUST NO. 6 OF 8(0802- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02C40 | ||||
| 82715-02C80 | ||||
| 82715-02C90 | ||||
| 82715-02D00 | ||||
| 82715-02G40 | ||||
| 82715-0D110 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52140 | ||||
| 82715-52A70 | ||||
| 82715-52C50 | ||||
| 82715-52C60 | ||||
| 82715-52C80 | ||||
| 82715-52C90 | ||||
| 82715-52D00 | ||||
| 82715-52D30 | ||||
| 82715-52D50 | ||||
| 82715-52E10 | ||||
| 82715-52E20 | ||||
| 82715-52E30 | ||||
| 82715-52J90 | ||||
| 82715-52K70 | ||||
| 82715-52L30 | ||||
| 82715-52L40 | ||||
| 82715-52L50 | ||||
| 82715-52L60 | ||||
| 82715-52L70 | ||||
| 90119-C0085 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0131 | ||||
| 90178-C0032 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1104 | ||||

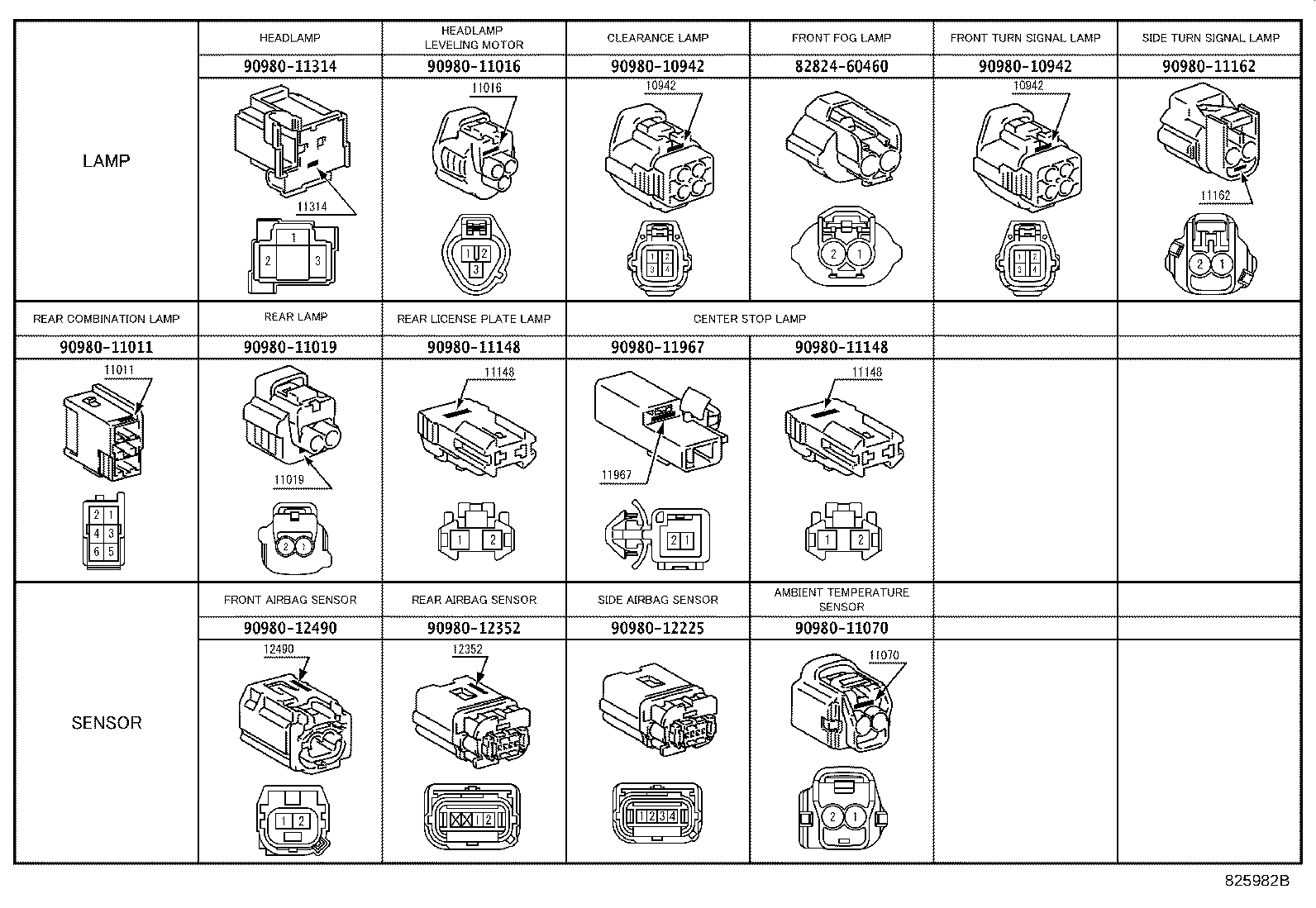

ILLUST NO. 7 OF 8(0802- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11967 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12490 | ||||

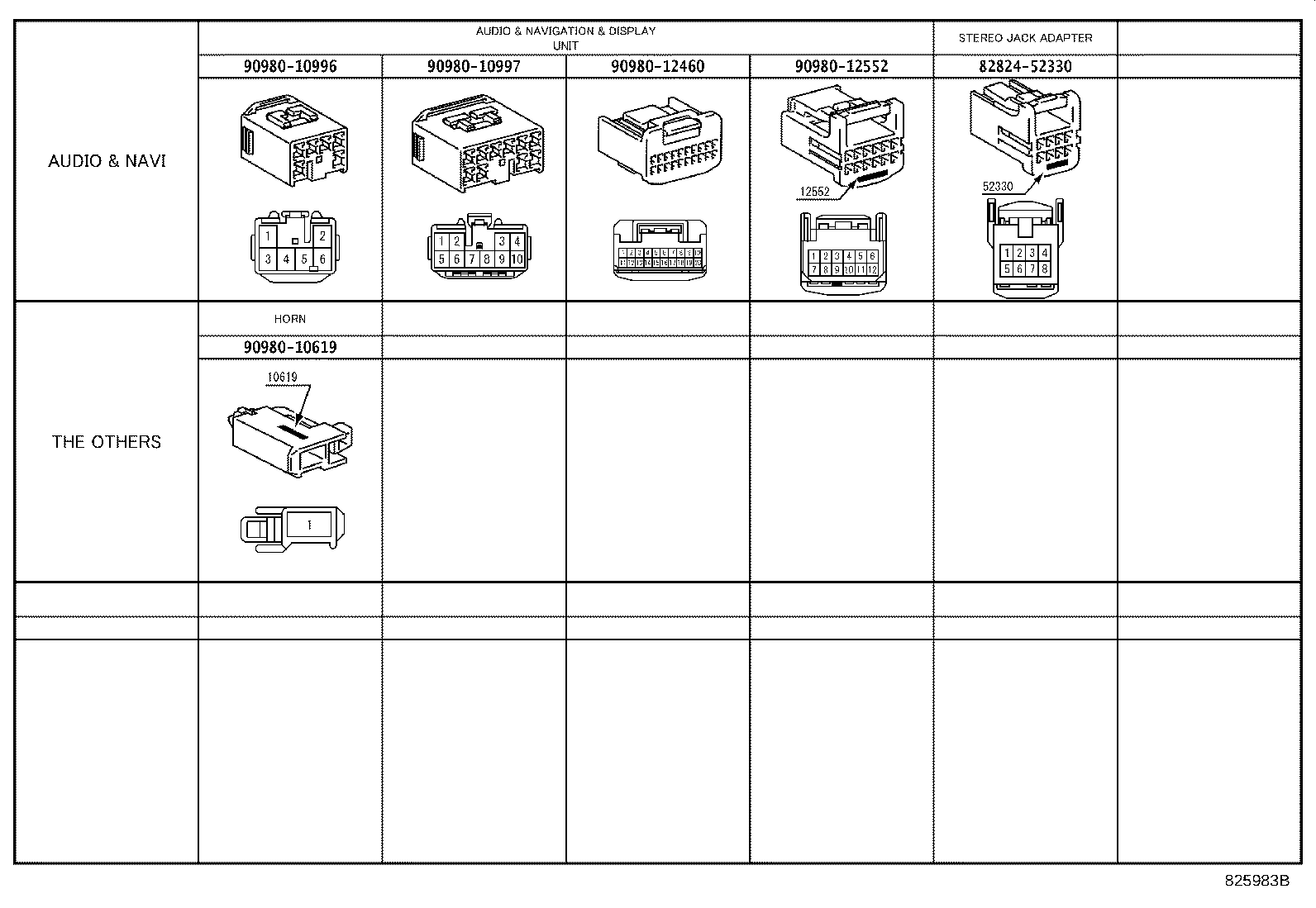

ILLUST NO. 8 OF 8(0802- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12460 | ||||
| 90980-12552 | ||||
