NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

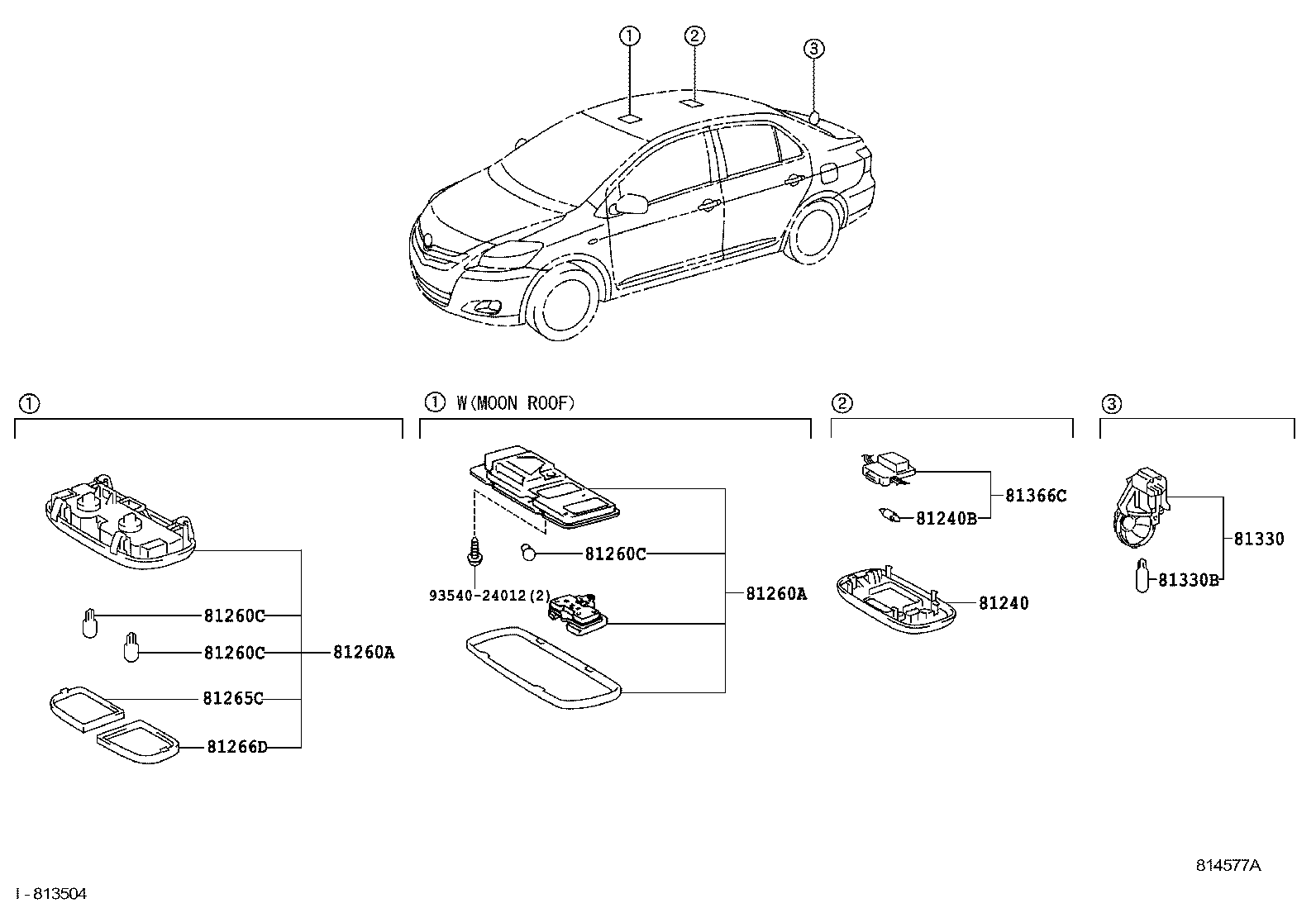

Click highlighted areas on diagram

diagram 81240 81240B 81260A 81260A 81260C 81260C 81260C 81265C 81266D 81330 81330B 81366C 9354024012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-52040E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NCP92,ZSP92

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-52030E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
81260A - LAMP ASSY, MAP
81260-52030E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP92,ZSP92

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP92,ZSP92

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP92,ZSP92

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-52020

NCP92,ZSP92

 1
81266D - LENS, MAP LAMP, NO.2
81266-52020

NCP92,ZSP92

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

NCP92,ZSP92

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

NCP92,ZSP92

12V 3.8W

 1
81366C - BASE, ROOM LAMP SWITCH
81366-68010

NCP92,ZSP92

 1
Common parts
93540-24012
