NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

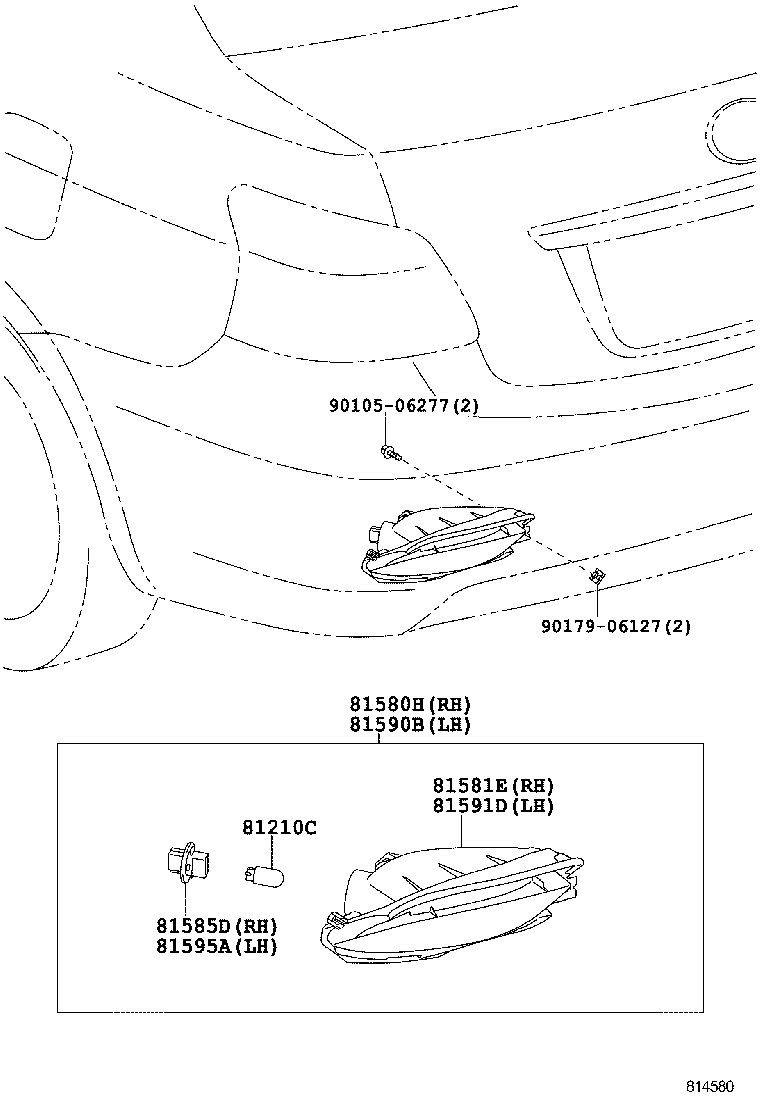

Click highlighted areas on diagram

diagram 81210C 81580H 81581E 81585D 81590B 81591D 81595A 9010506277 9017906127
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-13043

NCP92,ZSP92

12V 21W

 2
81580H - LAMP ASSY, REAR FOG, RH
81580-0D030

NCP92,ZSP92

 1
81581E - LENS AND BODY, REAR FOG LAMP, RH
81581-0D030

NCP92,ZSP92

 1
81585D - SOCKET & WIRE, REAR FOG LAMP, RH
81585-0D030

NCP92,ZSP92

 1
81590B - LAMP ASSY, REAR FOG, LH
81590-0D030

NCP92,ZSP92

 1
81591D - LENS AND BODY, REAR FOG LAMP, LH
81591-0D030

NCP92,ZSP92

 1
81595A - SOCKET & WIRE, REAR FOG LAMP, LH
81585-0D030

NCP92,ZSP92

 1
Common parts
90105-06277
90179-06127
