NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

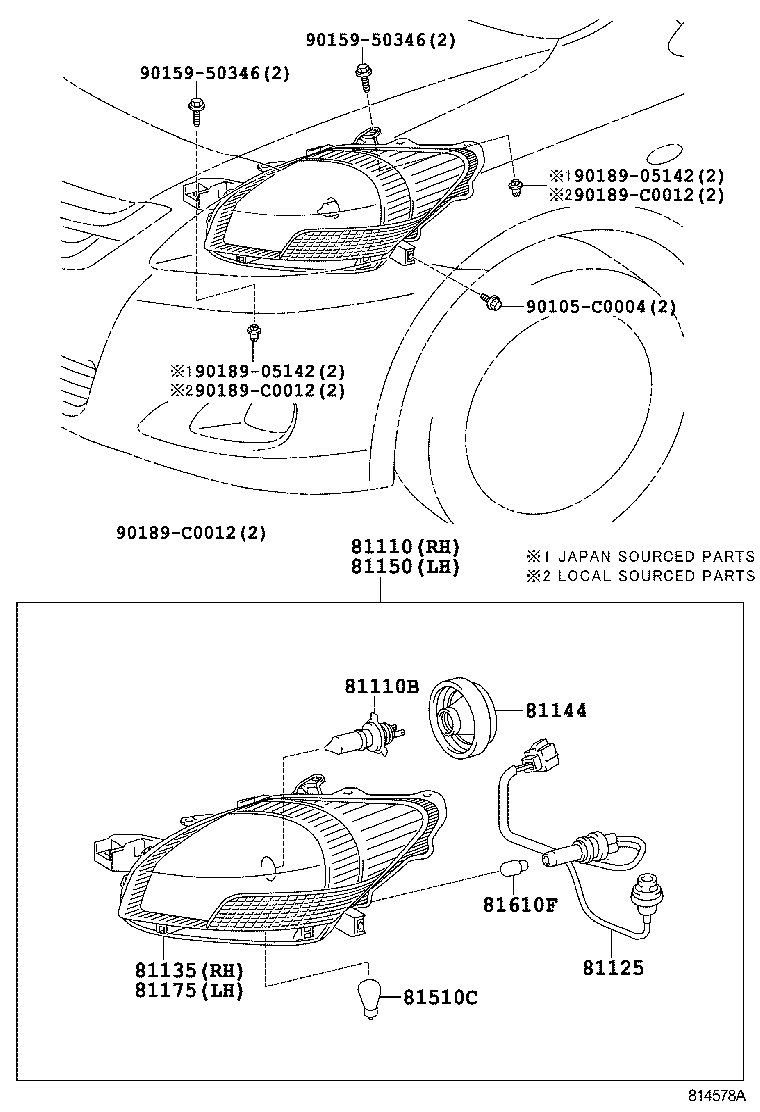

Click highlighted areas on diagram

diagram 81110 81110B 81125 81135 81144 81150 81175 81510C 81610F 90105C0004 9015950346 9015950346 9018905142 9018905142 90189C0012 90189C0012 90189C0012
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0D370

NCP92,ZSP92

HEADLAMP LEVELING DEVICE-WITHOUT

 1
81110-0D300

NCP92,ZSP92

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP92,ZSP92

12V 60/55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-0D300

NCP92,ZSP92

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0D300

NCP92,ZSP92

 1
81130-0D370

NCP92,ZSP92

HEADLAMP LEVELING DEVICE-WITHOUT

 1
81144 - COVER, HEADLAMP, NO.1
90069-81036

NCP92,ZSP92

 2
81150 - HEADLAMP ASSY, LH
81150-0D300

NCP92,ZSP92

 1
81150-0D370

NCP92,ZSP92

HEADLAMP LEVELING DEVICE-WITHOUT

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0D300

NCP92,ZSP92

 1
81170-0D370

NCP92,ZSP92

HEADLAMP LEVELING DEVICE-WITHOUT

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

NCP92,ZSP92

12V 21W,AMBER

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP92,ZSP92

12V 5W

 2
Common parts
90105-C0004
90159-50346
90189-05142
90189-C0012
