NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

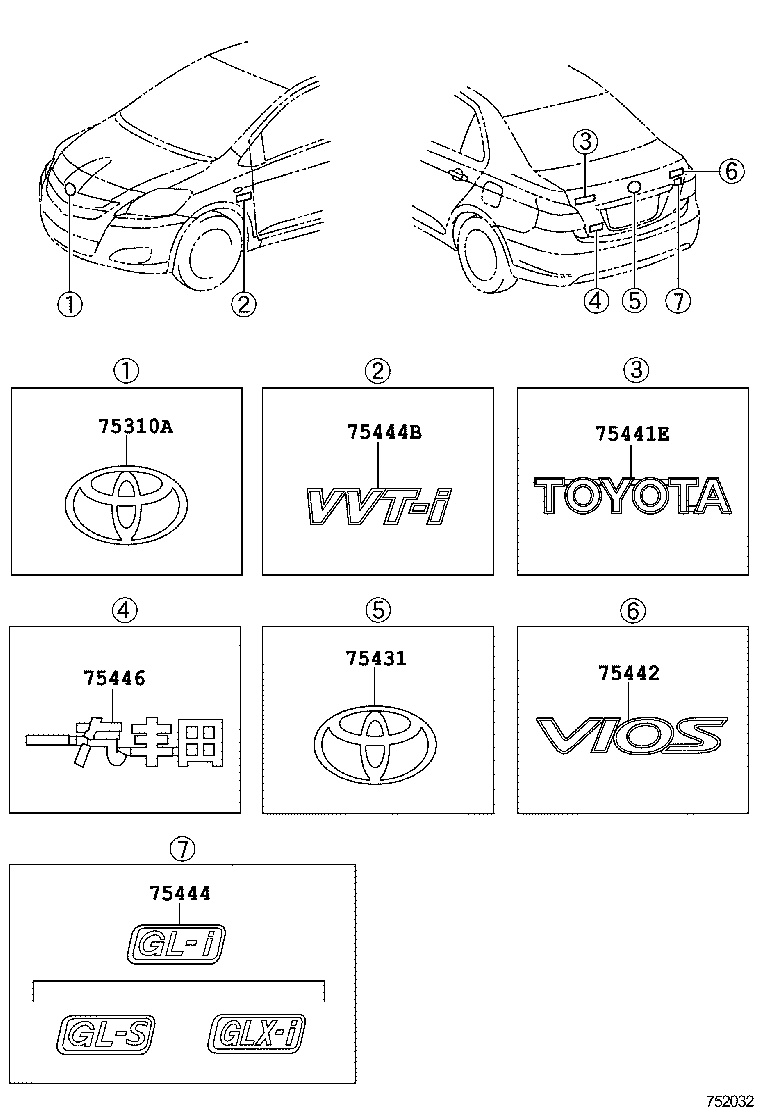

Click highlighted areas on diagram

diagram 75310A 75431 75441E 75442 75444 75444B 75446
Part # Description Qty Price
75310A - EMBLEM ASSY, RADIATOR GRILLE
75301-0D020

NCP92,ZSP92

 1
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75431-02060

NCP92,ZSP92

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75447-0D030

NCP92,ZSP92

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-0D080

NCP92,ZSP92

VIOS

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75471-0D150

NCP92,ZSP92..GLI

GL-I

 1
75444B - PLATE, FRONT FENDER
75447-02060

NCP92,ZSP92

VVT-I

 2
75446 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6
75446-0D070

NCP92,ZSP92

 1
