NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

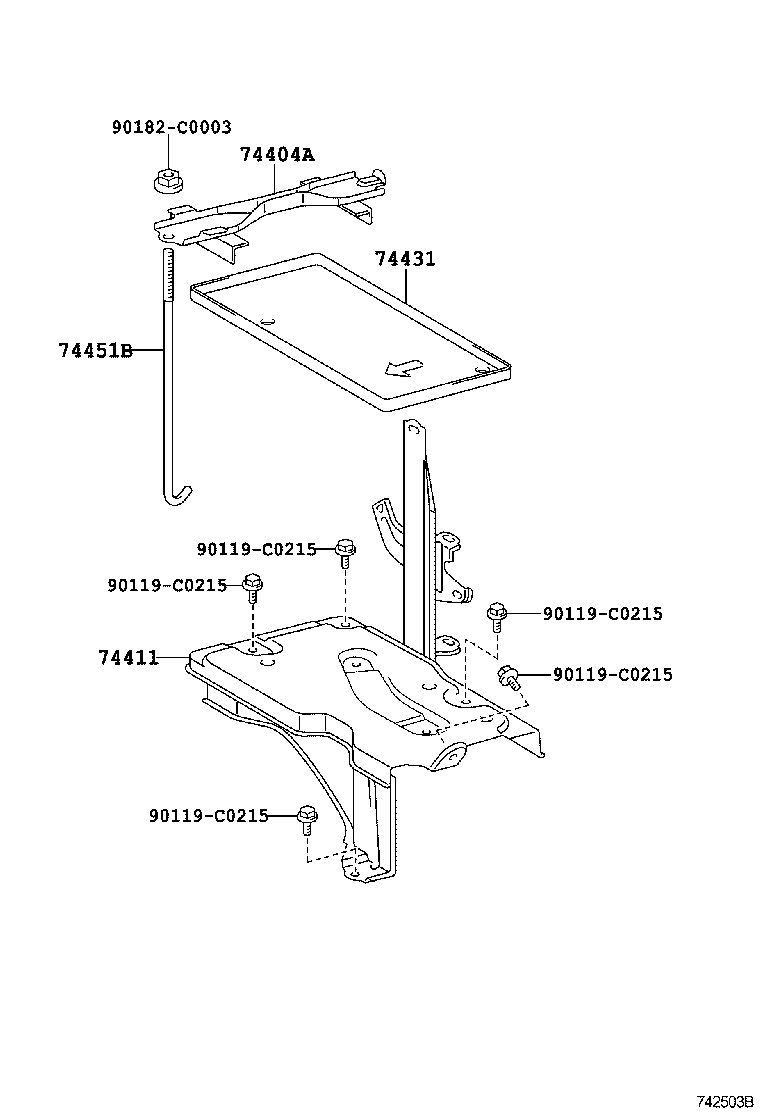

Click highlighted areas on diagram

diagram 74404A 74411 74431 74451B 90119C0215 90119C0215 90119C0215 90119C0215 90119C0215 90182C0003
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-0D090

NCP92,ZSP92

 1
74411 - CARRIER, BATTERY
74410-0D060

NCP92,ZSP92

 1
74431 - TRAY, BATTERY
74431-0D140

NCP92,ZSP92

 1
74451B - BOLT, BATTERY CLAMP
74451-52070

NCP92,ZSP92

 1
Common parts
90119-C0215
90182-C0003
