NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

Click highlighted areas on diagram

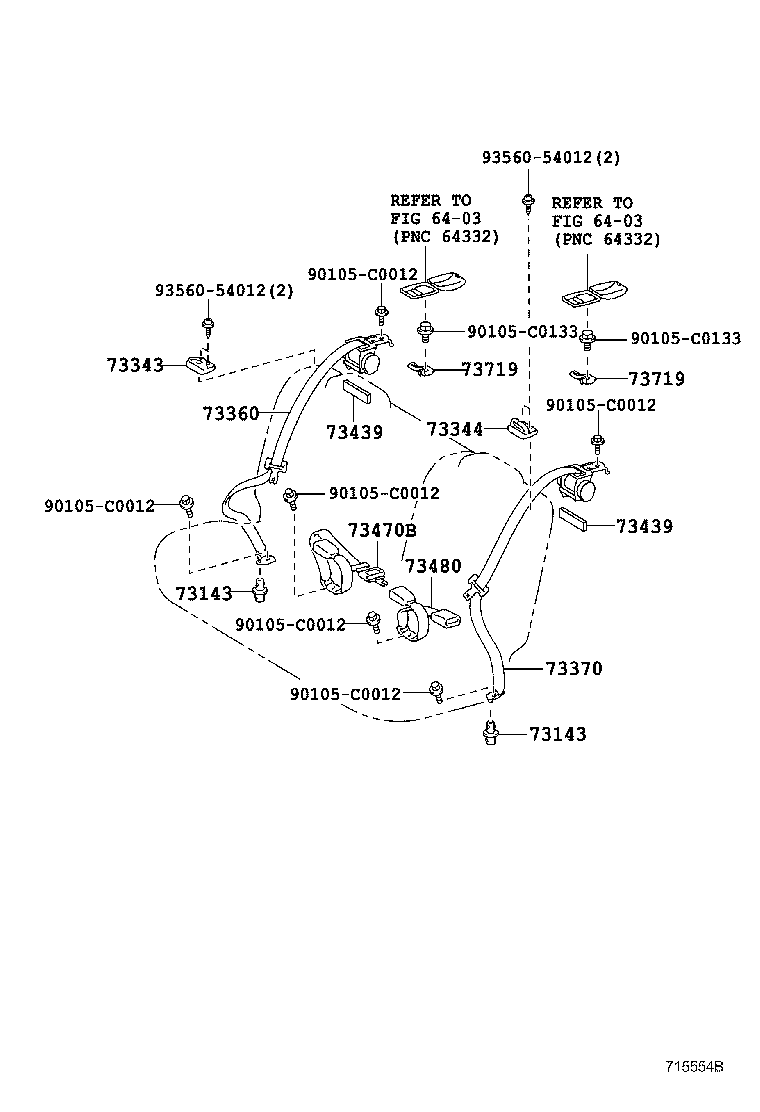

REAR SEAT

diagram 6403 6403 73143 73143 73343 73344 73360 73370 73439 73439 73470B 73480 73719 73719 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0012 90105C0133 90105C0133 9356054012 9356054012
Part # Description Qty Price
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP92,ZSP92

 2
73143 - SEAL, SEAT BELT HOLE
73143-52010

NCP92,ZSP92

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73345-20010E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73345-33020E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-0D130E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-0D130E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D020

NCP92,ZSP92

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-0D020

NCP92,ZSP92

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-0D090E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-0D070E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-52030

NCP92,ZSP92

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-52030

NCP92,ZSP92

 2
Common parts
90105-C0012
90105-C0133
93560-54012
Linked diagrams
6403

(0802- )

Click highlighted areas on diagram

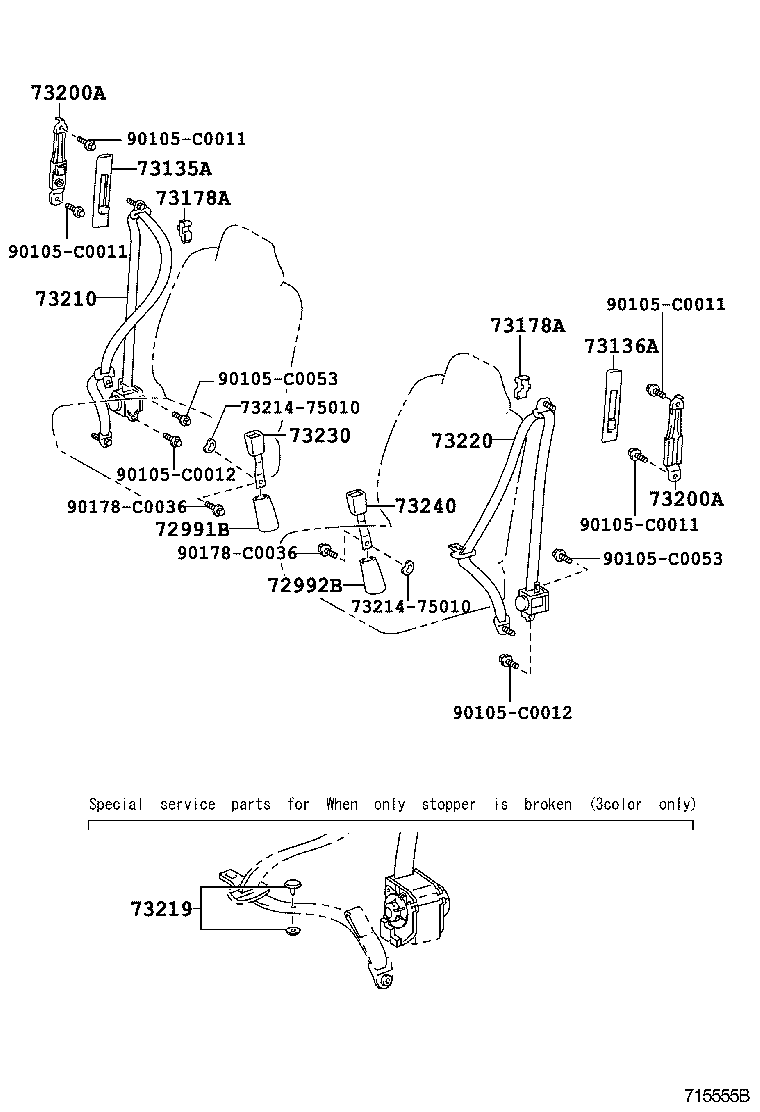

FRONT SEAT

diagram 72991B 72992B 73135A 73136A 73178A 73178A 73200A 73200A 73210 7321475010 7321475010 73219 73220 73230 73240 90105C0011 90105C0011 90105C0011 90105C0011 90105C0012 90105C0012 90105C0053 90105C0053 90178C0036 90178C0036
Part # Description Qty Price
72991B - COVER, FRONT SEAT CUSHION, RH
72991-0D060E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
72992B - COVER, FRONT SEAT CUSHION, LH
72991-0D060E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-52020E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73135-52020E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020E1

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-52020E1

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52050E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0D240E1

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0D220E1

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0D230E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0D220E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
Common parts
73214-75010
90105-C0011
90105-C0012
90105-C0053
90178-C0036
