NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

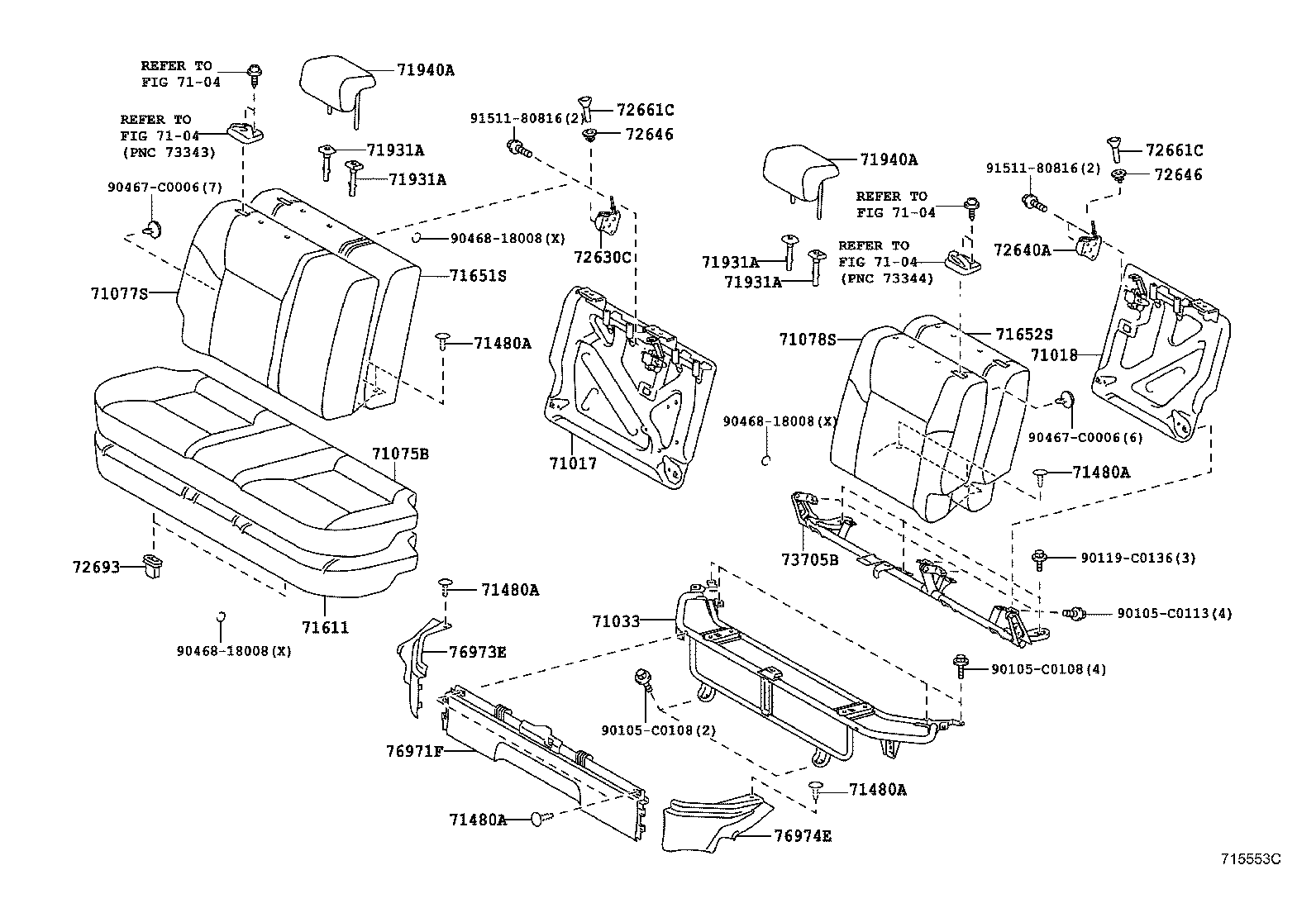

Click highlighted areas on diagram

diagram 71017 71018 71033 7104 7104 7104 7104 71075B 71077S 71078S 71480A 71480A 71480A 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71940A 71940A 72630C 72640A 72646 72646 72661C 72661C 72693 73705B 76971F 76973E 76974E 90105C0108 90105C0108 90105C0113 90119C0136 90467C0006 90467C0006 9046818008 9046818008 9046818008 9151180816 9151180816
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-0D140

NCP92,ZSP92

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-0D050

NCP92,ZSP92

 1
71033 - LEG SUB-ASSY, REAR SEAT CUSHION
71033-0D050

NCP92,ZSP92

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0D490E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71075-0D491E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0D511E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71077-0D510E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-0D140E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71078-0D141E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-08186B4

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 8
71480A - CLIP (FOR REAR SEAT BACK)
90467-08186B4

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 8
71480A - CLIP (FOR REAR SEAT BACK)
90467-08186B4

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 8
71480A - CLIP (FOR REAR SEAT BACK)
90467-08186B4

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 8
71480A - CLIP (FOR REAR SEAT BACK)
90467-08186B4

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 8
71611 - PAD, REAR SEAT CUSHION
71503-0D110

NCP92,ZSP92

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-0D070

NCP92,ZSP92

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-0D050

NCP92,ZSP92

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-42020E1

NCP92,ZSP92..GLI

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0D300E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71940-0D301E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0D300E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71940-0D301E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72630C - LOCK ASSY, REAR SEAT BACK, RH
72640-52110

NCP92,ZSP92..GLI

 1
72640-52110

NCP92,ZSP92..GLI

 2
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-52110

NCP92,ZSP92

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-33010E3

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72646-33010E3

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-33010E3

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72646-33010E3

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-32030E2

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72661-32030E2

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-32030E2

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72661-32030E2

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NCP92,ZSP92

 2
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-0D050

NCP92,ZSP92

 1
76971F - COVER, REAR UNDER
76971-0D020B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
76973E - COVER, REAR UNDER SIDE, RH
76973-0D020B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
76974E - COVER, REAR UNDER SIDE, LH
76974-0D020B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
Common parts
90105-C0108
90105-C0113
90119-C0136
90467-C0006
90468-18008
91511-80816
Linked diagrams
7104
