NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

Click highlighted areas on diagram

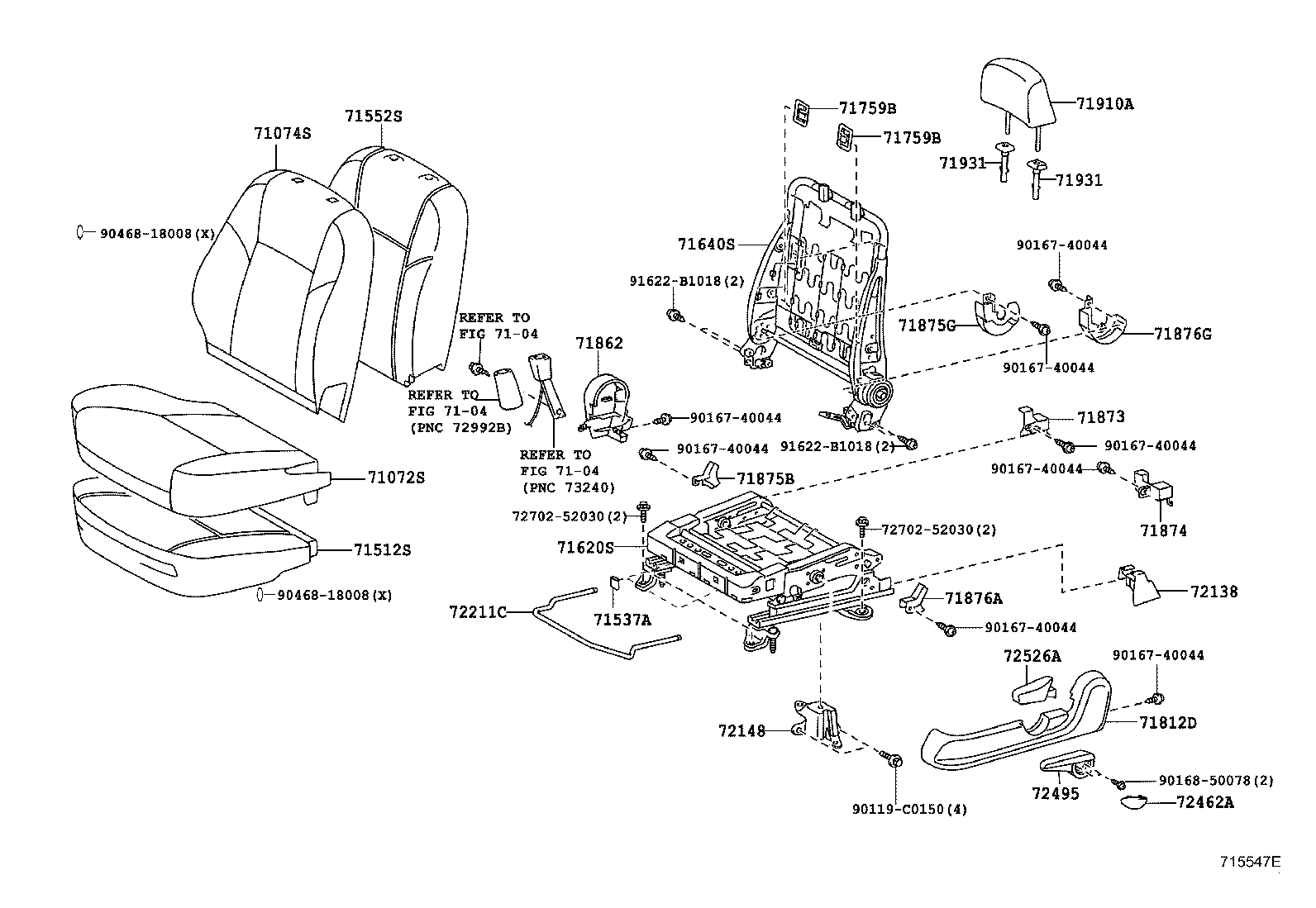

DRIVER SEAT

diagram 7104 7104 7104 71072S 71074S 71512S 71537A 71552S 71620S 71640S 71759B 71759B 71812D 71862 71873 71874 71875B 71875G 71876A 71876G 71910A 71931 71931 72138 72148 72211C 72462A 72495 72526A 7270252030 7270252030 90119C0150 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9046818008 9046818008 91622B1018 91622B1018
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0D510E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71072-0D510E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0D380E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71074-0D380E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0D080

NCP92,ZSP92..GLI

 2
71512-0D080

NCP92,ZSP92..GLI

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP92,ZSP92..GLI

 8
71537-26010

NCP92,ZSP92..GLI

 4
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0D100

NCP92,ZSP92..GLI

 1
71552-0D100

NCP92,ZSP92..GLI

 2
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-0D060

NCP92,ZSP92..GLI

 1
71620-0D060

NCP92,ZSP92..GLI

 2
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0D100

NCP92,ZSP92..GLI

 1
71640-0D100

NCP92,ZSP92..GLI

 2
71759B - HOOK, FRONT SEAT BACK
71759-02010

NCP92,ZSP92..GLI

 2
71759-02010

NCP92,ZSP92..GLI

 4
71759B - HOOK, FRONT SEAT BACK
71759-02010

NCP92,ZSP92..GLI

 2
71759-02010

NCP92,ZSP92..GLI

 4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71812-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0D070B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71862-0D070B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0D060B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71873-0D060B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-0D060B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71874-0D060B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06220B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71875-06220B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06340

NCP92,ZSP92..GLI

 2
71875-06340

NCP92,ZSP92..GLI

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06340B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71876-06340B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06370

NCP92,ZSP92..GLI

 2
71876-06370

NCP92,ZSP92..GLI

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0D520E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71910-0D520E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 4
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 4
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 4
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 4
72138 - COVER, SEAT TRACK, OUTER LH
72138-0D040B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-0D030

NCP92,ZSP92

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D050

NCP92,ZSP92..GLI

 2
72211-0D050

NCP92,ZSP92..GLI

 4
72462A - COVER, VERTICAL ADJUSTER LH
72462-0D020B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
72462-0D020B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
72495 - HANDLE, VERTICAL ADJUSTING, LH
72494-0D020B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
72494-0D020B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
72526-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
Common parts
72702-52030
90119-C0150
90167-40044
90168-50078
90468-18008
91622-B1018
Linked diagrams
7104

(0802- )

Click highlighted areas on diagram

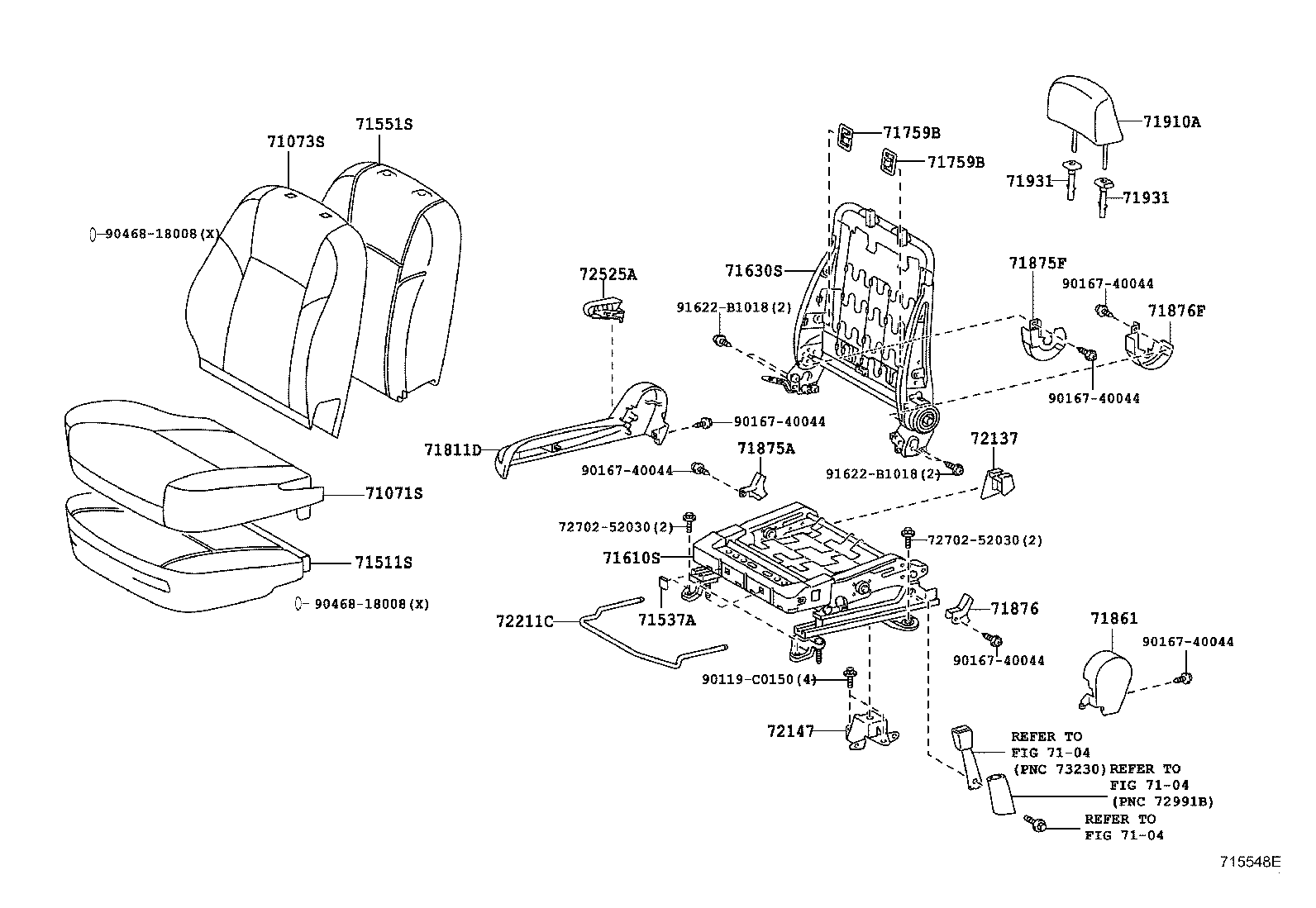

PASSENGER SEAT

diagram 7104 7104 7104 71071S 71073S 71511S 71537A 71551S 71610S 71630S 71759B 71759B 71811D 71861 71875A 71875F 71876 71876F 71910A 71931 71931 72137 72147 72211C 72525A 7270252030 7270252030 90119C0150 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9046818008 9046818008 91622B1018 91622B1018
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0D520E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71071-0D520E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0D700E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71073-0D700E0

NCP92,ZSP92..GLI

GREGE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0D110

NCP92,ZSP92

 1
71511-0D140

NCP92,ZSP92..GLI

 1
71511-0D140

NCP92,ZSP92..GLI

 2
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP92,ZSP92..GLI

 8
71537-26010

NCP92,ZSP92..GLI

 4
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0D150

NCP92,ZSP92..GLI

 2
71551-0D150

NCP92,ZSP92..GLI

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0D070

NCP92,ZSP92..GLI

 2
71610-0D070

NCP92,ZSP92..GLI

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0D130

NCP92,ZSP92..GLI

 1
71630-0D130

NCP92,ZSP92..GLI

 2
71759B - HOOK, FRONT SEAT BACK
71759-02010

NCP92,ZSP92..GLI

 2
71759-02010

NCP92,ZSP92..GLI

 4
71759B - HOOK, FRONT SEAT BACK
71759-02010

NCP92,ZSP92..GLI

 2
71759-02010

NCP92,ZSP92..GLI

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71811-0D090B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0D070B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71861-0D070B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06220B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71875-06220B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06340

NCP92,ZSP92..GLI

 2
71875-06340

NCP92,ZSP92..GLI

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06340B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
71876-06340B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06370

NCP92,ZSP92..GLI

 1
71876-06370

NCP92,ZSP92..GLI

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-0D520E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71910-0D520E1

NCP92,ZSP92..GLI

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 4
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 4
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 2
71931-0D110E0

NCP92,ZSP92..GLI

W/O(LOCK),GREGE,TRIM4#

 4
71930-0D110E0

NCP92,ZSP92..GLI

W(LOCK),GREGE,TRIM4#

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-0D060B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-0D030

NCP92,ZSP92

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0D050

NCP92,ZSP92..GLI

 2
72211-0D050

NCP92,ZSP92..GLI

 4
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D080B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 1
72525-0D080B0

NCP92,ZSP92..GLI

DK.GRAY,TRIM4#

 2
Common parts
72702-52030
90119-C0150
90167-40044
90468-18008
91622-B1018
Linked diagrams
7104
