NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802-1008) ; (1008- )GLI,GLS

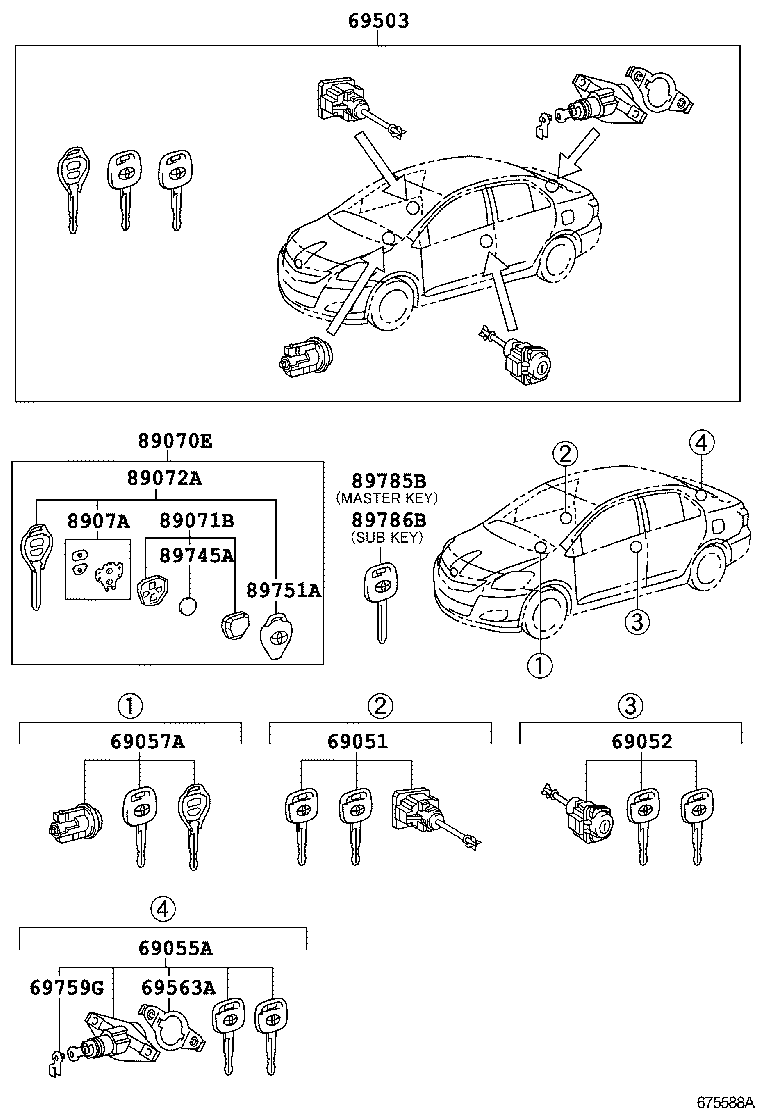

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69057A 69503 69563A 69759G 89070E 89071B 89072A 8907A 89745A 89751A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0D110

NCP92,ZSP92

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D110

NCP92,ZSP92

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-0D100

NCP92,ZSP92

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D170

NCP92,ZSP92

 1
69503 - CYLINDER SET, LOCK
69005-0D230

NCP92,ZSP92

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-52060

NCP92,ZSP92

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

NCP92,ZSP92

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0D180

NCP92,ZSP92

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-0D040

NCP92,ZSP92

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0D120

NCP92,ZSP92

 1
8907A - SWITCH SET, TRANSMITTER
8907A-28010

NCP92,ZSP92

 1
89745A - BATTERY, TRANSMITTER
89745-48030

NCP92,ZSP92

 1
89751A - COVER, TRANSMITTER HOUSING
89751-0D020

NCP92,ZSP92

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

NCP92,ZSP92

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

NCP92,ZSP92

BLANK KEY

 1
