NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

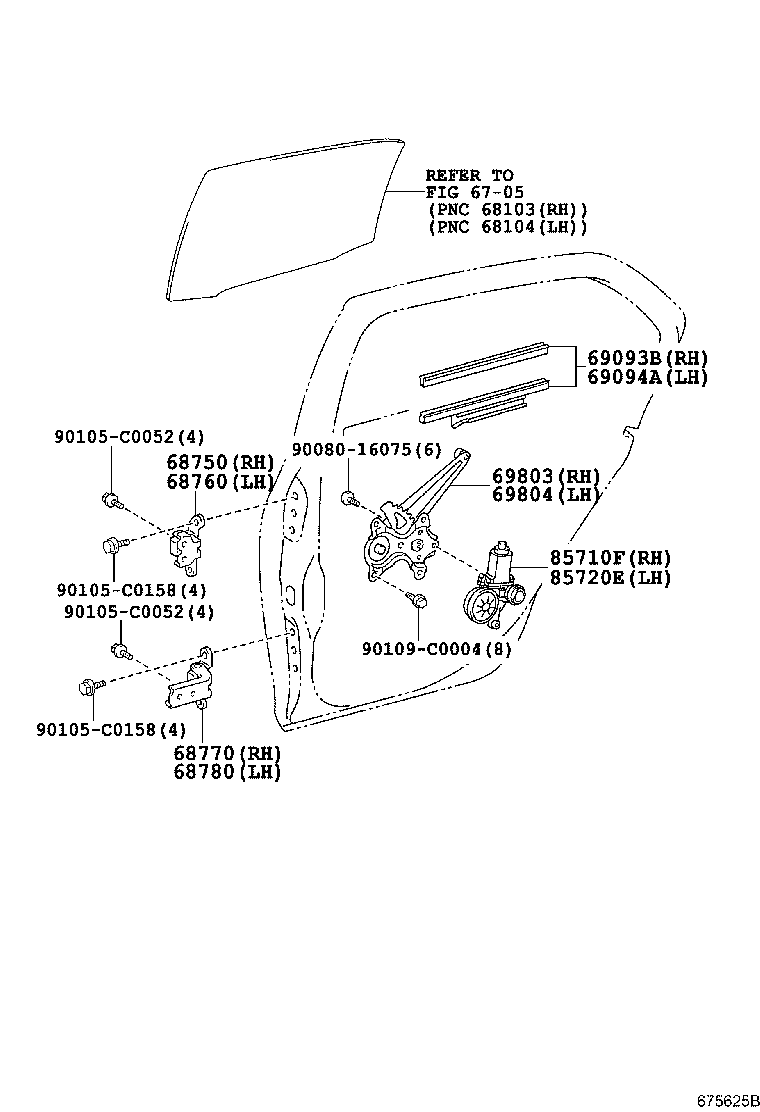

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69093B 69094A 69803 69804 85710F 85720E 9008016075 90105C0052 90105C0052 90105C0158 90105C0158 90109C0004
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0P011

NCP92,ZSP92

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0P011

NCP92,ZSP92

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-0D021

NCP92,ZSP92

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-0D021

NCP92,ZSP92

 1
69093B - ACCESSORY SET, REAR DOOR GLASS, RH
69093-0D100

NCP92,ZSP92

 1
69094A - ACCESSORY SET, REAR DOOR GLASS, LH
69094-0D100

NCP92,ZSP92

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-02120

NCP92,ZSP92

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-02120

NCP92,ZSP92

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-06210

NCP92,ZSP92

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-06190

NCP92,ZSP92

 1
Common parts
90080-16075
90105-C0052
90105-C0158
90109-C0004
Linked diagrams
6705
