NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

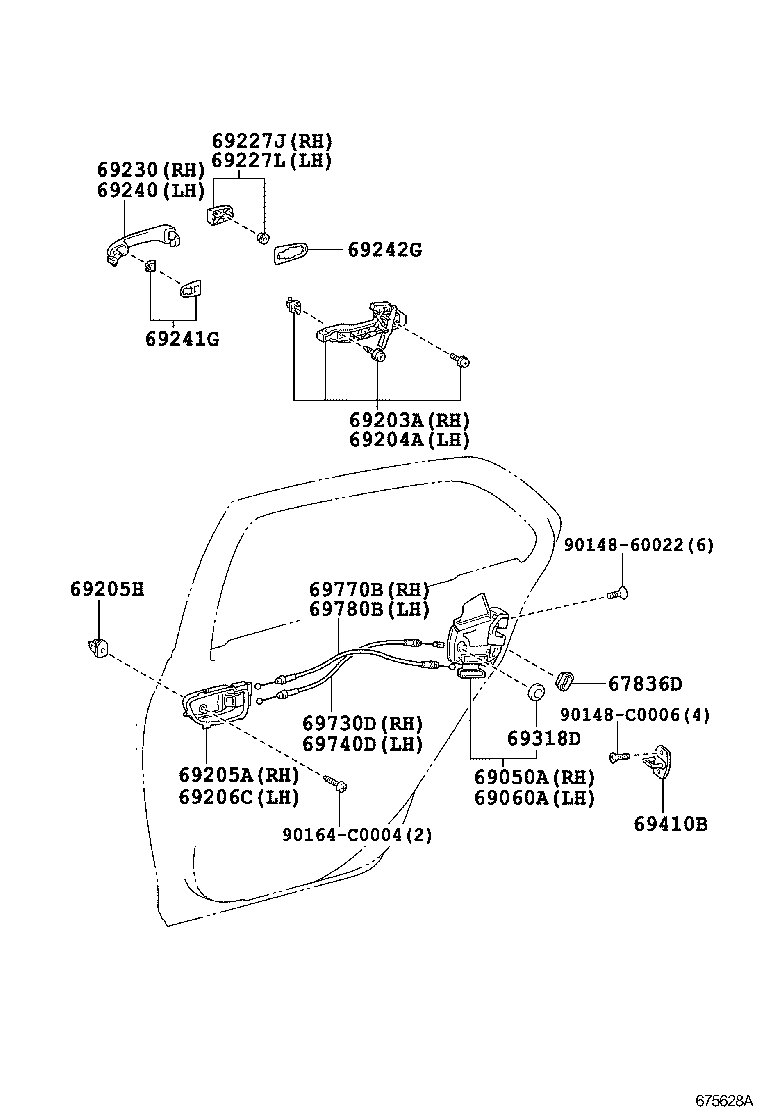

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69203A 69204A 69205A 69205H 69206C 69227J 69227L 69230 69240 69241G 69242G 69318D 69410B 69730D 69740D 69770B 69780B 9014860022 90148C0006 90164C0004
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-06020

NCP92,ZSP92

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-06111

NCP92,ZSP92

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-06111

NCP92,ZSP92

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0D070

NCP92,ZSP92

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0D070

NCP92,ZSP92

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D190B1

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
69205H - GROMMET(FOR REAR DOOR INSIDE HANDLE)
69299-52010

NCP92,ZSP92

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D190B1

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-02160A0

NCP92,ZSP92..GLI,GLS

WHITE,056

 1
69227-02160B0

NCP92,ZSP92..GLI,GLS

SILVER ME.,1D0

 1
69227-02160C0

NCP92,ZSP92..GLI,GLS

BLACK MC.,209

 1
69227-02160D0

NCP92,ZSP92..GLI,GLS

RED M.M.,3P1

 1
69227-02160F0

NCP92,ZSP92..GLI,GLS

CHAMPAGNE ME.,586

 1
69227-02160J1

NCP92,ZSP92..GLI,GLS

STRONG BLUE M,8B6

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-02160C0

NCP92,ZSP92..GLI,GLS

BLACK MC.,209

 1
69227-02160J1

NCP92,ZSP92..GLI,GLS

STRONG BLUE M,8B6

 1
69227-02160B0

NCP92,ZSP92..GLI,GLS

SILVER ME.,1D0

 1
69227-02160A0

NCP92,ZSP92..GLI,GLS

WHITE,056

 1
69227-02160F0

NCP92,ZSP92..GLI,GLS

CHAMPAGNE ME.,586

 1
69227-02160D0

NCP92,ZSP92..GLI,GLS

RED M.M.,3P1

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-02190B0

NCP92,ZSP92..GLI,GLS

SILVER ME.,1D0

 1
69211-02190C0

NCP92,ZSP92..GLI,GLS

BLACK MC.,209

 1
69211-02190J1

NCP92,ZSP92..GLI,GLS

STRONG BLUE M,8B6

 1
69211-02190F0

NCP92,ZSP92..GLI,GLS

CHAMPAGNE ME.,586

 1
69211-02190A0

NCP92,ZSP92..GLI,GLS

WHITE,056

 1
69211-02190D0

NCP92,ZSP92..GLI,GLS

RED M.M.,3P1

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-02190B0

NCP92,ZSP92..GLI,GLS

SILVER ME.,1D0

 1
69211-02190A0

NCP92,ZSP92..GLI,GLS

WHITE,056

 1
69211-02190F0

NCP92,ZSP92..GLI,GLS

CHAMPAGNE ME.,586

 1
69211-02190D0

NCP92,ZSP92..GLI,GLS

RED M.M.,3P1

 1
69211-02190C0

NCP92,ZSP92..GLI,GLS

BLACK MC.,209

 1
69211-02190J1

NCP92,ZSP92..GLI,GLS

STRONG BLUE M,8B6

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

NCP92,ZSP92

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-02070

NCP92,ZSP92

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NCP92,ZSP92

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0P010

NCP92,ZSP92

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-0D100

NCP92,ZSP92

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-0D100

NCP92,ZSP92

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0D090

NCP92,ZSP92

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-0D090

NCP92,ZSP92

 1
Common parts
90148-60022
90148-C0006
90164-C0004
