NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

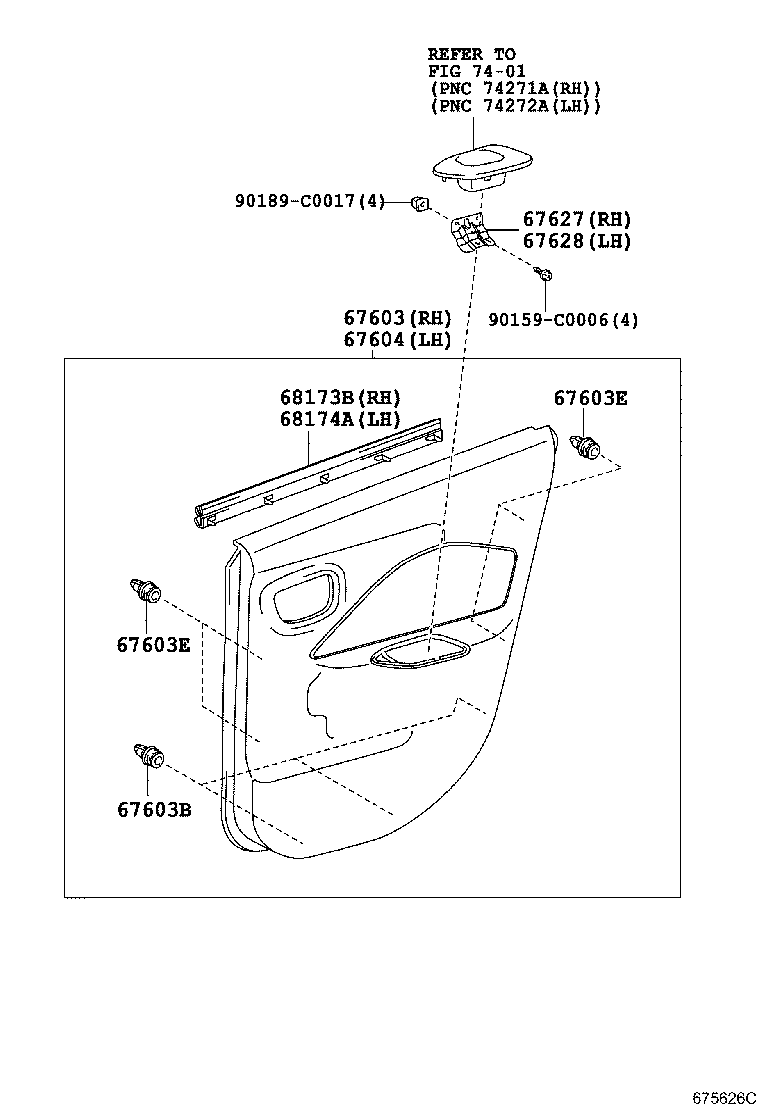

ILLUST NO. 2 OF 2(0802- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0D510B1 |
NCP92,ZSP92..GLI DK.GRAY,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NCP92,ZSP92 |
6 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCP92,ZSP92 |
8 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NCP92,ZSP92 |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0D510B1 |
NCP92,ZSP92..GLI DK.GRAY,TRIM4# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67626-0D030 |
NCP92,ZSP92 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67626-0D030 |
NCP92,ZSP92 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0D130 |
NCP92,ZSP92 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0D130 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90159-C0006 | ||||
| 90189-C0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||

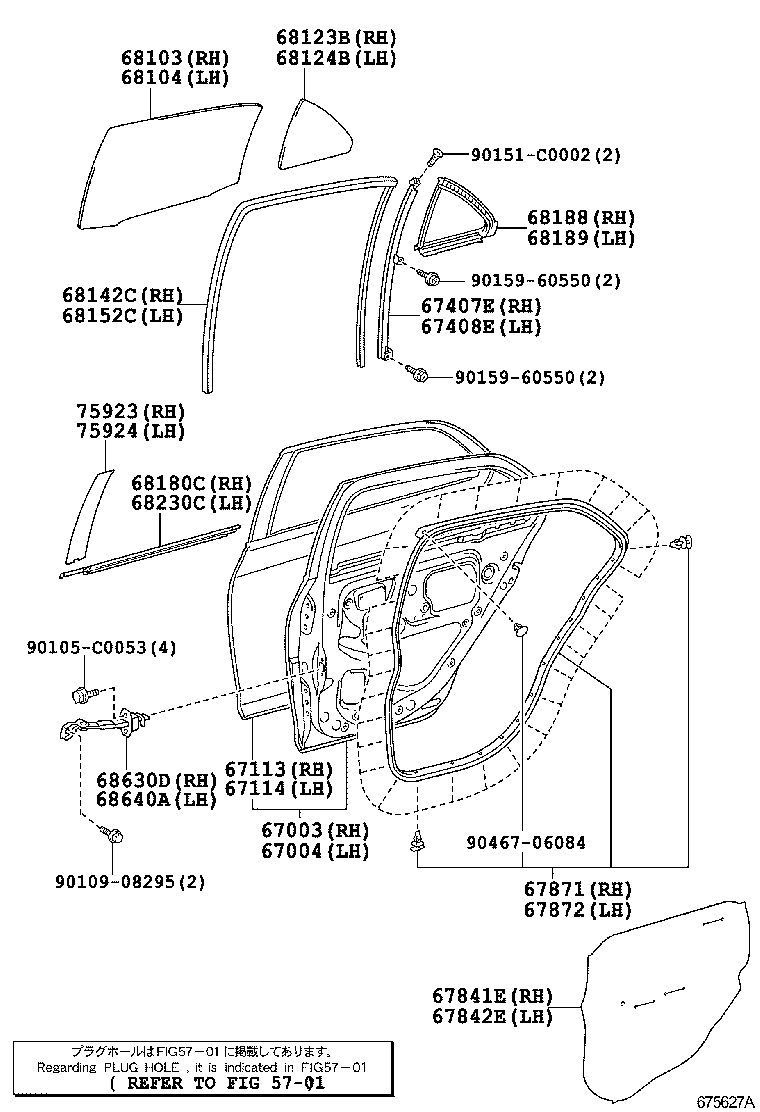

ILLUST NO. 1 OF 2(0802- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D160 |
NCP92,ZSP92 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D160 |
NCP92,ZSP92 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-52180 |
NCP92,ZSP92 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-52180 |
NCP92,ZSP92 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-0D050 |
NCP92,ZSP92 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-0D050 |
NCP92,ZSP92 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0D070 |
NCP92,ZSP92 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-0D070 |
NCP92,ZSP92 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D070 |
NCP92,ZSP92 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D070 |
NCP92,ZSP92 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-0D110 |
NCP92,ZSP92 *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-0D110 |
NCP92,ZSP92 *TEM,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D110 |
NCP92,ZSP92 *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D110 |
NCP92,ZSP92 *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D070 |
NCP92,ZSP92 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D070 |
NCP92,ZSP92 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D100 |
NCP92,ZSP92 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D070 |
NCP92,ZSP92 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D070 |
NCP92,ZSP92 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D100 |
NCP92,ZSP92 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-0D100 |
NCP92,ZSP92 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-0D090 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90105-C0053 | ||||
| 90109-08295 | ||||
| 90151-C0002 | ||||
| 90159-60550 | ||||
| 90467-06084 | ||||
| Linked diagrams | ||||
| 5701 | ||||
