NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

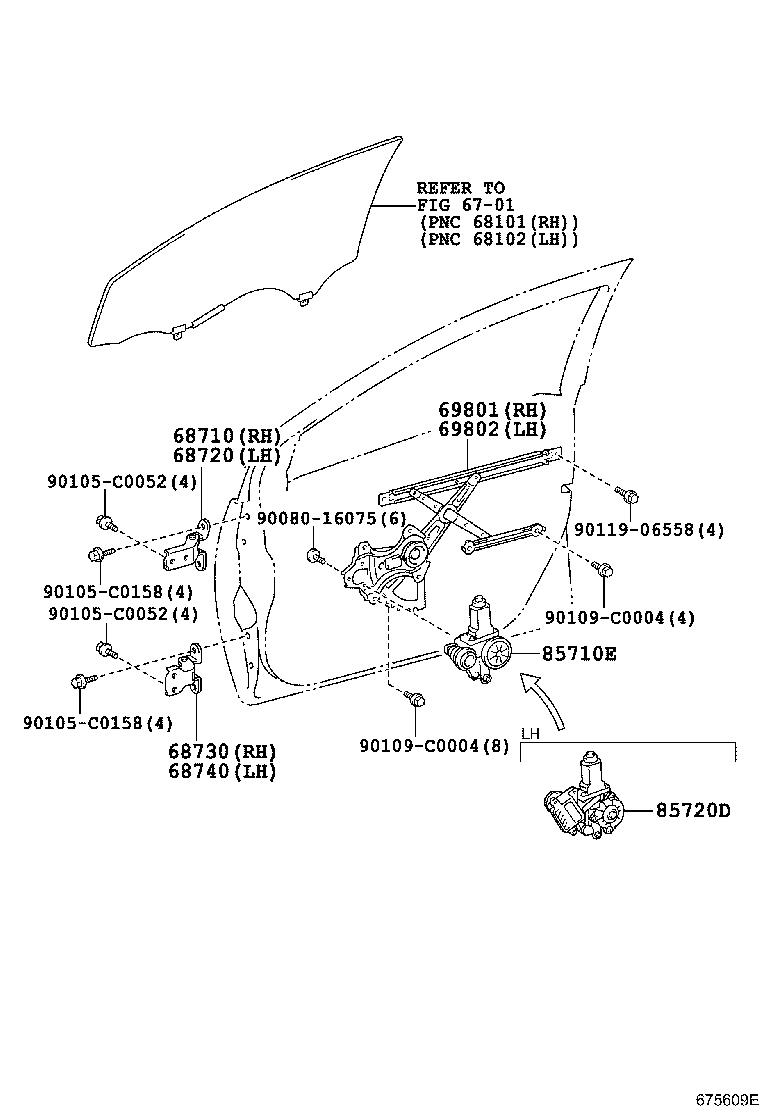

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 9008016075 90105C0052 90105C0052 90105C0158 90105C0158 90109C0004 90109C0004 9011906558
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02031

NCP92,ZSP92

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02031

NCP92,ZSP92

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0P011

NCP92,ZSP92

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0P011

NCP92,ZSP92

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0D110

NCP92,ZSP92

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0D120

NCP92,ZSP92

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-06190

NCP92,ZSP92

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0D190

NCP92,ZSP92

 1
Common parts
90080-16075
90105-C0052
90105-C0158
90109-C0004
90119-06558
Linked diagrams
6701
