NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

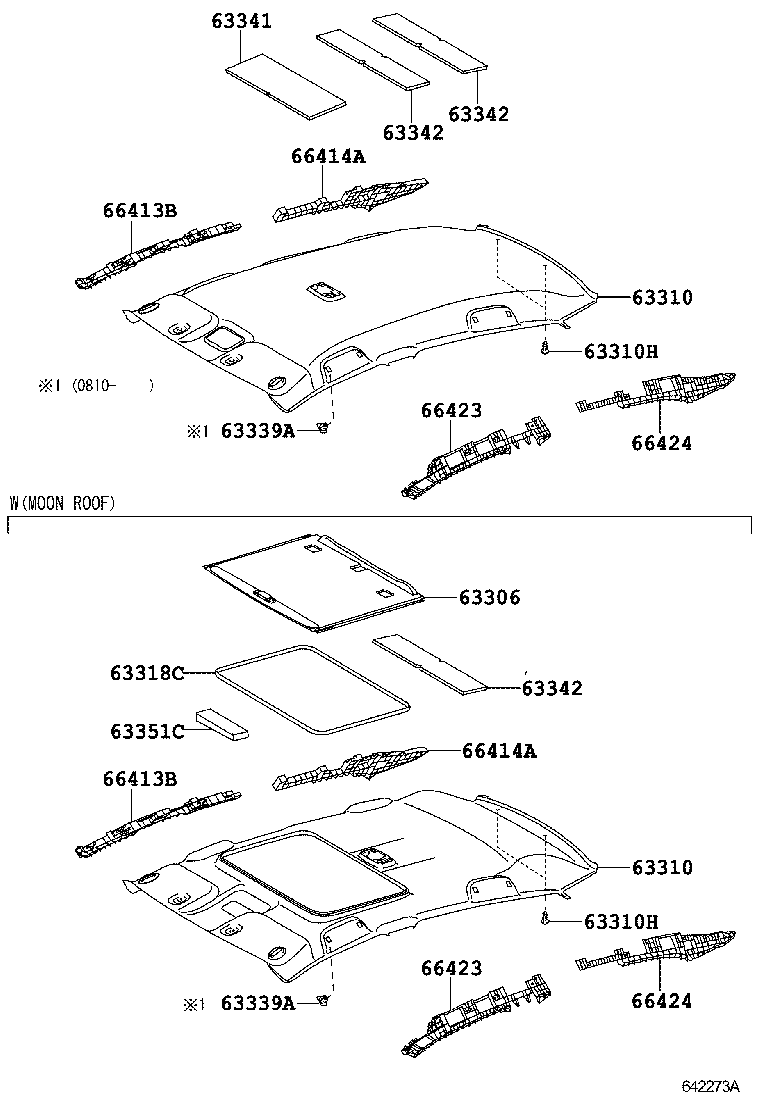

Click highlighted areas on diagram

diagram 63306 63310 63310 63310H 63310H 63318C 63339A 63339A 63341 63342 63342 63342 63351C 66413B 66413B 66414A 66414A 66423 66423 66424 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0D320E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
63310-0D321E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-0D320E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
63310-0D321E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164E2

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164E2

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 2
63341 - PAD, ROOF SILENCER, NO.1
63343-0D010

NCP92,ZSP92

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-0D010

NCP92,ZSP92

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-0D010

NCP92,ZSP92

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-0D010

NCP92,ZSP92

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-0D140

NCP92,ZSP92

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-0D140

NCP92,ZSP92

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D140

NCP92,ZSP92

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D140

NCP92,ZSP92

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-0D130

NCP92,ZSP92

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-0D130

NCP92,ZSP92

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D140

NCP92,ZSP92

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D140

NCP92,ZSP92

 1
