NCP92L-BEPHKC (2008)

Toyota Vios (China)

Production Feb 2008 - Aug 2010
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0802- )

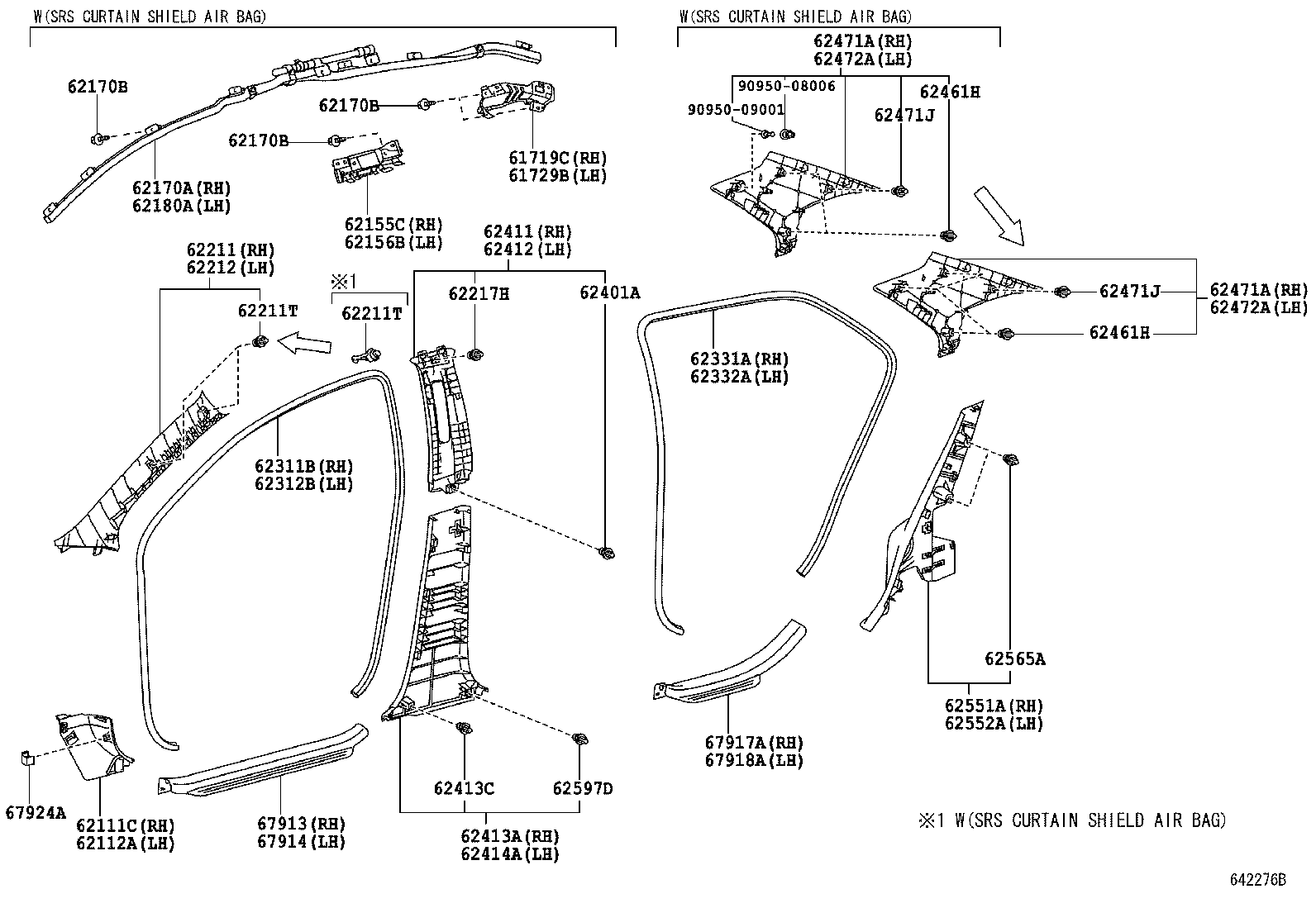

Click highlighted areas on diagram

diagram 61719C 61729B 62111C 62112A 62155C 62156B 62170A 62170B 62170B 62170B 62180A 62211 62211T 62211T 62212 62217H 62311B 62312B 62331A 62332A 62401A 62411 62412 62413A 62413C 62414A 62461H 62461H 62471A 62471A 62471J 62471J 62472A 62472A 62551A 62552A 62565A 62597D 67913 67914 67917A 67918A 67924A 9095008006 9095009001
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0D090B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62111-0D090

NCP92,ZSP92

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-0D130B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62112-0D130

NCP92,ZSP92

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0D140E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10188

NCP92,ZSP92

 4
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10188

NCP92,ZSP92

 4
62212 - GARNISH, FRONT PILLAR, LH
62212-0D150E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62217H - CLIP, CENTER PILLER GARNISH
90467-10167

NCP92,ZSP92

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0D110B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0D120B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0D030B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0D030B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10161

NCP92,ZSP92

 2
62411 - GARNISH, CENTER PILLAR, RH
62411-0D110E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-0D110E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0D130

NCP92,ZSP92

 1
62413-0D130B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10167

NCP92,ZSP92

 2
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0D130B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62414-0D130

NCP92,ZSP92

 1
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

NCP92,ZSP92

 6
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

NCP92,ZSP92

 6
62471A - GARNISH, ROOF SIDE, INNER RH
62471-0D190E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-0D190E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

NCP92,ZSP92

 2
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

NCP92,ZSP92

 2
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D210E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D210E0

NCP92,ZSP92..GLI,GLXI

GREGE,TRIM4#

 1
62551A - COVER, REAR SEAT SIDE, RH
62551-0D070B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62551-0D070

NCP92,ZSP92

 1
62552A - COVER, REAR SEAT SIDE, LH
62552-0D050

NCP92,ZSP92

 1
62552-0D050B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
62565A - CLIP (FOR REAR SEAT SIDE GARNISH)
90467-10161

NCP92,ZSP92

 4
62597D - CLIP
90467-10161

NCP92,ZSP92

 2
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0D140

NCP92,ZSP92

 1
67913-0D140B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0D150

NCP92,ZSP92

 1
67914-0D150B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0D100

NCP92,ZSP92

 1
67917-0D100B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0D100

NCP92,ZSP92

 1
67918-0D100B0

NCP92,ZSP92..GLI,GLXI

DK.GRAY,TRIM4#

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67924-52140

NCP92,ZSP92

 2
Common parts
90950-08006
90950-09001
