NCP92L-BEPHKC (2008)
Toyota Vios (China)
Production
Feb 2008
-
Aug 2010
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0802- )

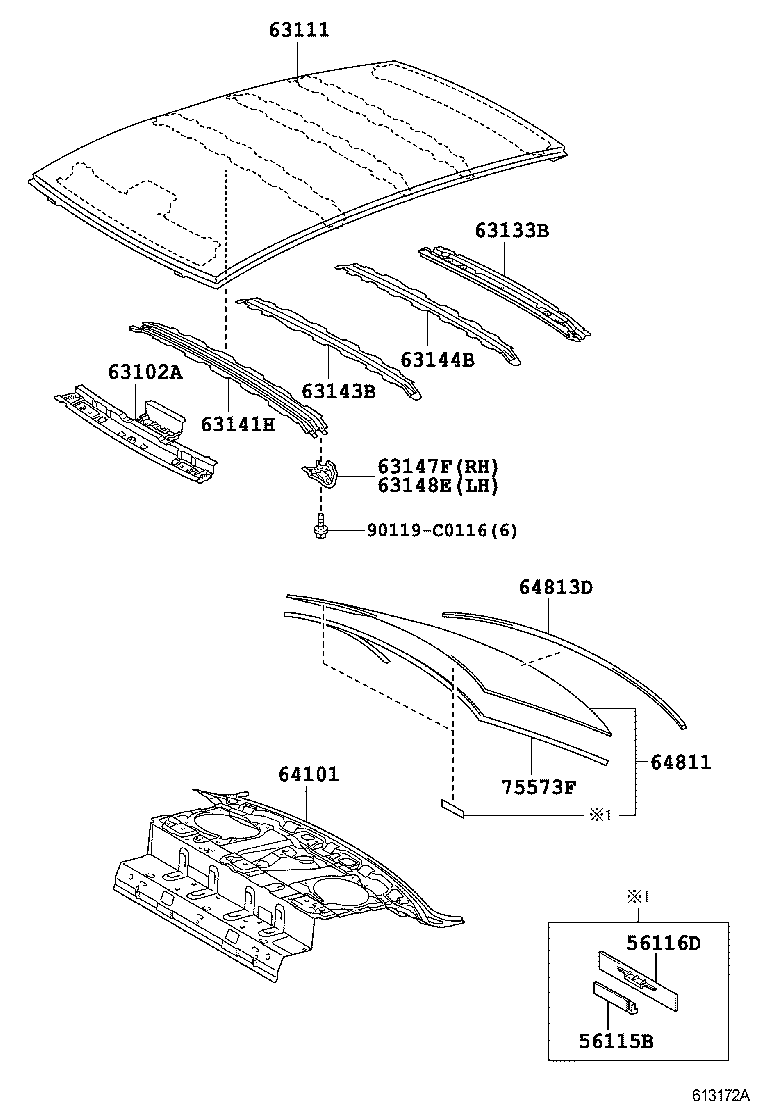

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30100 |
NCP92,ZSP92 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
NCP92,ZSP92 |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D050 |
NCP92,ZSP92 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-52250 |
NCP92,ZSP92 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-0D060 |
NCP92,ZSP92 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0D090 |
NCP92,ZSP92 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0D080 |
NCP92,ZSP92 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D030 |
NCP92,ZSP92 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-0D030 |
NCP92,ZSP92 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-0D030 |
NCP92,ZSP92 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-0D080 |
NCP92,ZSP92 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-0D902 |
NCP92,ZSP92 *TEM,T=3.1,GREEN,ASAHI |
1 | ||
| 64801-0D904 |
NCP92,ZSP92 *TEM,T=3.1,GREEN,FUYAO |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-52080 |
NCP92,ZSP92 |
1 | ||
| 75573F - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-0D040 |
NCP92,ZSP92 |
1 | ||
| 75573-0D050 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90119-C0116 | ||||

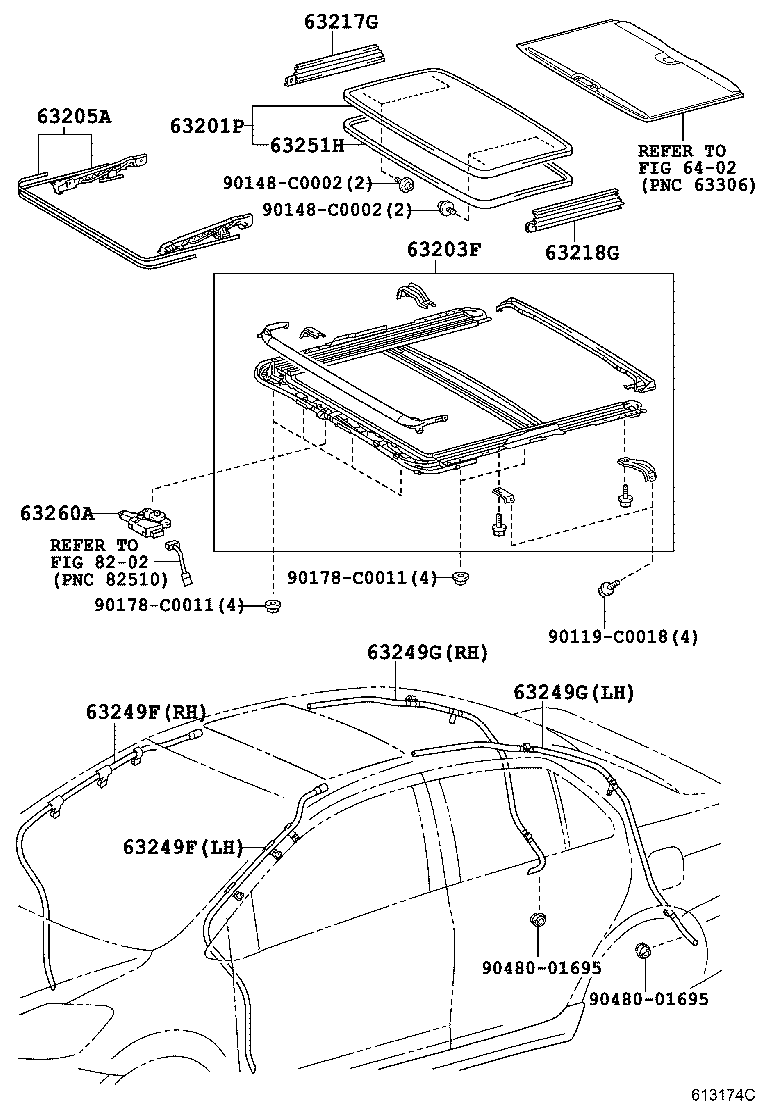

ILLUST NO. 2 OF 2(0802- )GLI,GLXI
Click highlighted areas on diagram
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-C0018 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| 90480-01695 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||

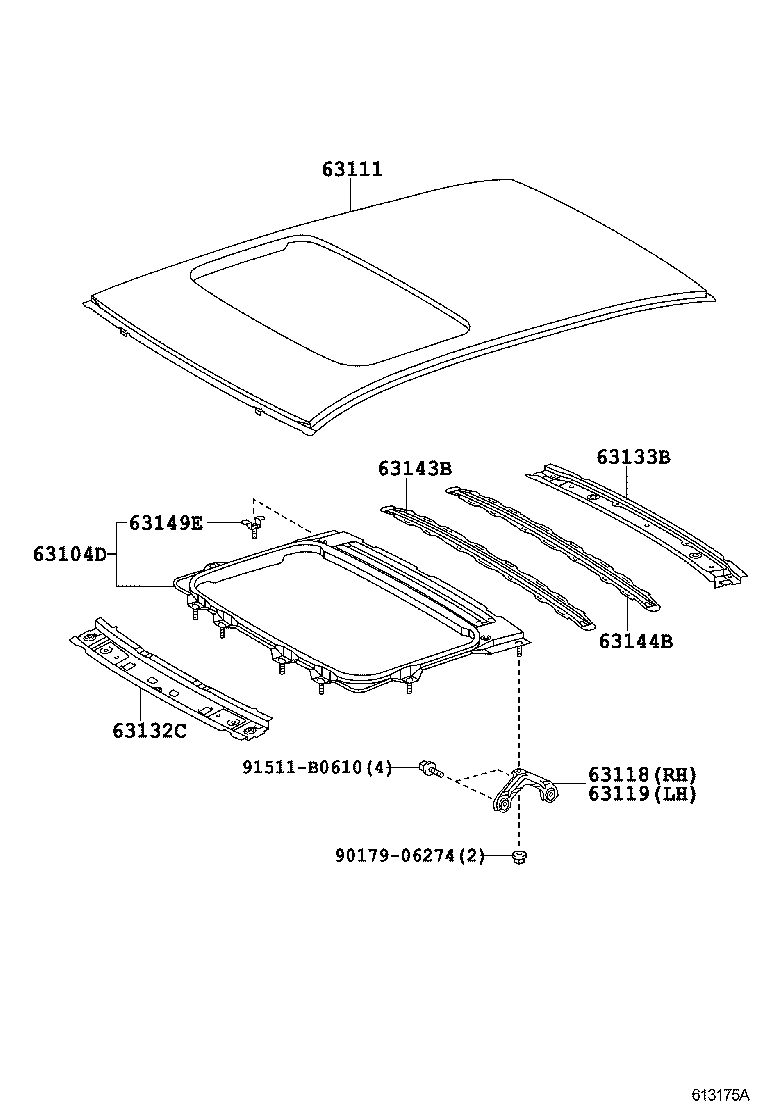

ILLUST NO. 1 OF 2(0802- )GLI,GLXI
Click highlighted areas on diagram
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-52250 |
NCP92,ZSP92 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-0D060 |
NCP92,ZSP92 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-0D080 |
NCP92,ZSP92 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D030 |
NCP92,ZSP92 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||
